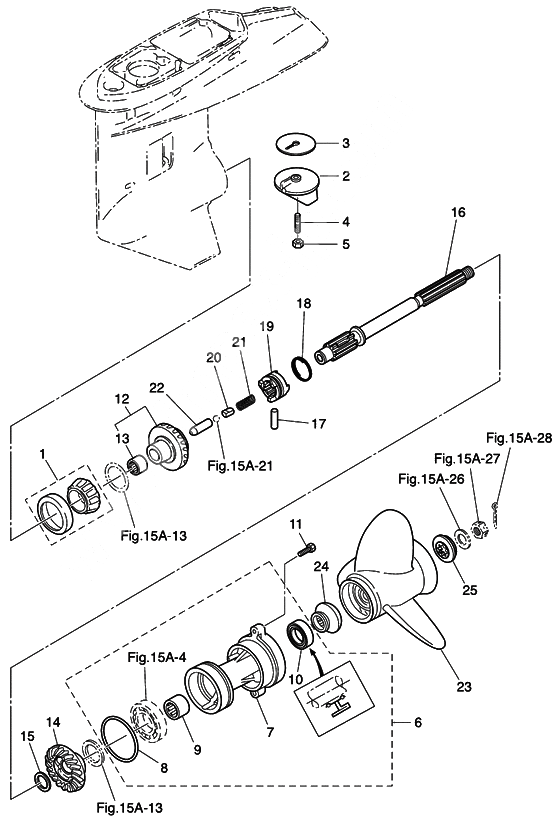

Gear case (propeller shaft) mwd50b2 для Tohatsu MD40B2 - 2014 года выпуска`
-
№АртикулНазвание
-
13F3-60215-0 Taper roller bearing 32007jrTaper roller bearing 32007jr
-
23B7-60217-1 Trim TabTrim Tab
-
33B7-60219-0 Packing, Trim TabPacking, Trim Tab
-
4915303-0825 Stud BoltStud Bolt
-
5930403-0800 Nylon NutNylon Nut
-
63A3Q60100-0 Prop shaft housing assyProp shaft housing assy
-
73A3Q60101-0 Prop shaft housingProp shaft housing
-
8353-60103-0 O-RingO-Ring
-
9353-60211-0 New partNew part
-
10353-60111-0 New partNew part
-
113C7-60108-2 Bolt 8-30 precoatedBolt 8-30 precoated
-
123F3-64010-3 New partNew part
-
13345-64011-0 Needle bearing 202720Needle bearing 202720
-
143F3-64030-0 New partNew part
-
15353-64032-0 Washer, bevel gear c t=3.0Washer, bevel gear c t=3.0
-
15353-64034-0 Washer,t=2.75Washer,t=2.75
-
15353-64035-0 Washer,t=2.50Washer,t=2.50
-
163A3-64211-0 Propeller ShaftPropeller Shaft
-
17353-64218-1 Clutch PinClutch Pin
-
353-64218-0 Clutch PinClutch Pin
-
18353-64219-2 Snap clutch pinSnap clutch pin
-
193F3-64215-0 ClutchClutch
-
203A3-64222-0 Spring holder clutchSpring holder clutch
-
21346-64221-0 Spring ClutchSpring Clutch
-
22353-64223-1 New partNew part
-
23353B64104-0 Prop 70b (11.6 dia. x 12 pitch)
MWD50B2 / STD 3 X 295 X 305Prop 70b (11.6 dia. x 12 pitch)
MWD50B2 / STD 3 X 295 X 305 -
23353B64101-0 Prop 70b (12 dia. x 9 pitch)
OPT 3 X 305 X 229Prop 70b (12 dia. x 9 pitch)
OPT 3 X 305 X 229 -
23353B64102-0 Prop 70b (11.5 dia. x 10 pitch)
OPT 3 X 292 X 254Prop 70b (11.5 dia. x 10 pitch)
OPT 3 X 292 X 254 -
353-64102-0 Prop 70b (11.5 dia. x 10 pitch)Prop 70b (11.5 dia. x 10 pitch)
-
23353B64103-0 Prop 70b (11.5 dia. x 11 pitch)
OPT 3 X 292 X 279Prop 70b (11.5 dia. x 11 pitch)
OPT 3 X 292 X 279 -
23353B64105-0 Prop 70b (11.5 dia. x 13 pitch)
OPT 3 X 292 X 330Prop 70b (11.5 dia. x 13 pitch)
OPT 3 X 292 X 330 -
23353B64106-0 Prop 70b (11.4 dia. x 14 pitch) - no longer available
OPT 3 X 289 X 355Prop 70b (11.4 dia. x 14 pitch) - no longer available
OPT 3 X 289 X 355 -
23353B64107-0 Prop 70b (11 dia. x 15 pitch) no longer available
OPT 3 X 280 X 381Prop 70b (11 dia. x 15 pitch) no longer available
OPT 3 X 280 X 381 -
353-64107-0 Prop 70b (11 dia. x 15 pitch) no longer availableProp 70b (11 dia. x 15 pitch) no longer available
-
23353B64108-0 Prop 70b (10.7 dia. x 16.4 pitch)
OPT 3 X 273 X 417Prop 70b (10.7 dia. x 16.4 pitch)
OPT 3 X 273 X 417 -
353-64108-0 Prop 70b (10.7 dia. x 16.4 pitch)Prop 70b (10.7 dia. x 16.4 pitch)
-
23353B64109-0 Prop 70b (10.9 dia. x 17.6 pitch)
OPT 3 X 276 X 447Prop 70b (10.9 dia. x 17.6 pitch)
OPT 3 X 276 X 447 -
353-64109-0 Prop 70b (10.9 dia. x 17.6 pitch)Prop 70b (10.9 dia. x 17.6 pitch)
-
24353-64231-0 Thrust holder a propellerThrust holder a propeller
-
25353-64233-0 Stopper a propellerStopper a propeller
