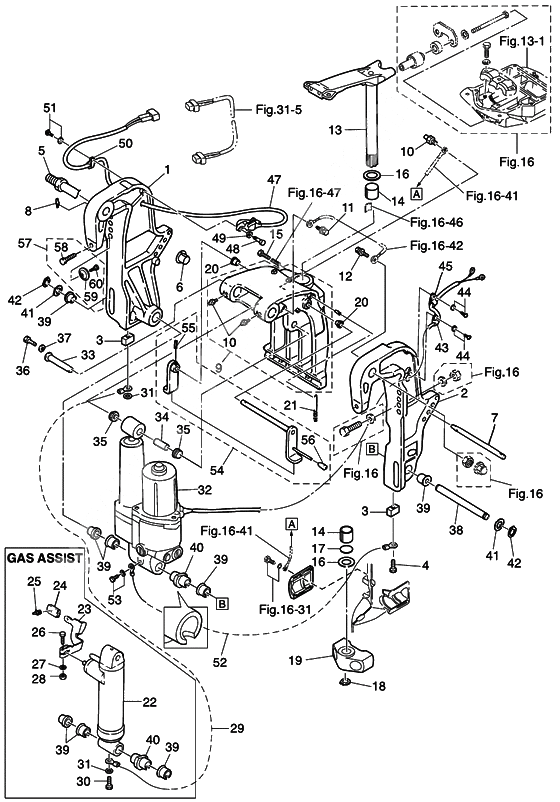

Bracket (2) power trim & tilt / gas assist для Tohatsu MD40B2 - 2014 года выпуска`
-
№АртикулНазвание
-
13GFQ77211-0 Clamp bracket (ppt) right, md50b
FOR PTT & GAS ASSIST MODEL / STARBOARD SIDEClamp bracket (ppt) right, md50b
FOR PTT & GAS ASSIST MODEL / STARBOARD SIDE -
23GFQ77212-0 Clamp bracket (ppt) left, md50b
FOR PTT & GAS ASSIST MODEL / PORT SIDEClamp bracket (ppt) left, md50b
FOR PTT & GAS ASSIST MODEL / PORT SIDE -
33B7-60218-1 AnodeAnode
-
4910103-5630 BoltBolt
-
53AD-62191-0 Swivel bracket bolt (ptt)
BRACKET BOLTSwivel bracket bolt (ptt)
BRACKET BOLT -
63C8-77213-0 Bushing Bracket BoltBushing Bracket Bolt
-
73R0-77118-0 Thrust RodThrust Rod
-
8951603-1000 R-PinR-Pin
-
93Z7Q77208-3 Swivel bracket assySwivel bracket assy
-
10344-67177-1 Grease NippleGrease Nipple
-
11910103-5612 Bolt
SWIVEL BRACKETBolt
SWIVEL BRACKET -
12910103-5612 Bolt
CLAMP BRACKETBolt
CLAMP BRACKET -
133GFQ62010-0 Steering shaft assy ptt (amb)Steering shaft assy ptt (amb)
-
14353-62417-0 BushingBushing
-
159101E3-0830 BoltBolt
-
910103-0830 BoltBolt
-
16353-62423-1 Thrust PlateThrust Plate
-
17353-62415-0 O-RingO-Ring
-
18945103-2800 C-RingC-Ring
-
945127-2800 C-RingC-Ring
-
193Z5Q61411-1 Mount bracket (amb)Mount bracket (amb)
-
3Z5Q61411-0 Mount bracket (amb)Mount bracket (amb)
-
20353-63207-0 Collar 10.2-12-12Collar 10.2-12-12
-
213R0-62473-0 Spring,Tilt StopperSpring,Tilt Stopper
-
233R0-66311-0 Rever, Revers Lock
FOR GAS ASSIST MODELRever, Revers Lock
FOR GAS ASSIST MODEL -
243AL-66333-0 Lock lever grip
FOR GAS ASSIST MODELLock lever grip
FOR GAS ASSIST MODEL -
25346-66334-0 Stopper
FOR GAS ASSIST MODELStopper
FOR GAS ASSIST MODEL -
263V2-60001-0 Bolt 6-35 precoated
FOR GAS ASSIST MODELBolt 6-35 precoated
FOR GAS ASSIST MODEL -
279401E3-0600 Washer
FOR GAS ASSIST MODELWasher
FOR GAS ASSIST MODEL -
940113-0600 WasherWasher
-
289301E3-0600 Nut
FOR GAS ASSIST MODELNut
FOR GAS ASSIST MODEL -
930103-0600 NutNut
-
293C8-62396-1 Ground Wire
GAS ASSIST-SWIVEL B/K / FOR GAS ASSIST MODELGround Wire
GAS ASSIST-SWIVEL B/K / FOR GAS ASSIST MODEL -
30910103-5608 Bolt
GROUND EARTH / FOR GAS ASSIST MODELBolt
GROUND EARTH / FOR GAS ASSIST MODEL -
31940103-0600 Washer
GROUND EARTH / FOR GAS ASSIST MODELWasher
GROUND EARTH / FOR GAS ASSIST MODEL -
323Z5-77150-1 Power trim & tilt assy d40/50 (amb)
SEE FIG 19 / FOR PTT MODELPower trim & tilt assy d40/50 (amb)
SEE FIG 19 / FOR PTT MODEL -
333KY-77071-0 Cylinder pin (upper)Cylinder pin (upper)
-
343R0-77075-0 BushingBushing
-
353R0-77076-0 BushingBushing
-
369101E3-0612 BoltBolt
-
910103-0612 BoltBolt
-
37345-05122-1 Washer rachetWasher rachet
-
383KY-77101-0 Cylinder pin (lower)Cylinder pin (lower)
-
393C8-77076-1 New partNew part
-
403Z5-77103-0 BushingBushing
-
413R0-77112-0 WasherWasher
-
42945103-1800 C-RingC-Ring
-
43336-06973-0 Clamp Lead Wire
FOR PTT MODELClamp Lead Wire
FOR PTT MODEL -
44921503-5612 Stud Bolt
FOR PTT MODELStud Bolt
FOR PTT MODEL -
45345-06915-0 Clamp 6.5-14
FOR PTT MODELClamp 6.5-14
FOR PTT MODEL -
473Z4-72574-0 Trim sensor (2-wire)
FOR EPTO MODELTrim sensor (2-wire)
FOR EPTO MODEL -
48910103-0620 Bolt
FOR EPTO MODELBolt
FOR EPTO MODEL -
493C8-66308-0 New part
FOR EPTO MODELNew part
FOR EPTO MODEL -
50336-06973-0 Clamp Lead Wire
FOR PTT MODELClamp Lead Wire
FOR PTT MODEL -
51921503-5612 Stud Bolt
FOR PTT MODELStud Bolt
FOR PTT MODEL -
52398-62396-1 Ground Wire
PTT ASSY-ANODE / FOR PTT MODELGround Wire
PTT ASSY-ANODE / FOR PTT MODEL -
53910103-5612 Bolt
FOR PTT MODELBolt
FOR PTT MODEL -
543GF-62466-1 Tilt stopper (ptt type)
FOR PTT MODELTilt stopper (ptt type)
FOR PTT MODEL -
543AC-62466-1 Tilt stopper (gas assist)
FOR GAS ASSIST MODELTilt stopper (gas assist)
FOR GAS ASSIST MODEL -
55951403-3516 New partNew part
-
56369-62433-1 Grip Tilt StopperGrip Tilt Stopper
-
573C8-77217-0 Clamp screw kitClamp screw kit
-
583C8-77216-0 Clamp screw (ptt)Clamp screw (ptt)
-
59332-62101-1 Pad clamp screw (threaded style)Pad clamp screw (threaded style)
-
603C8-62107-0 Shoulder boltShoulder bolt
