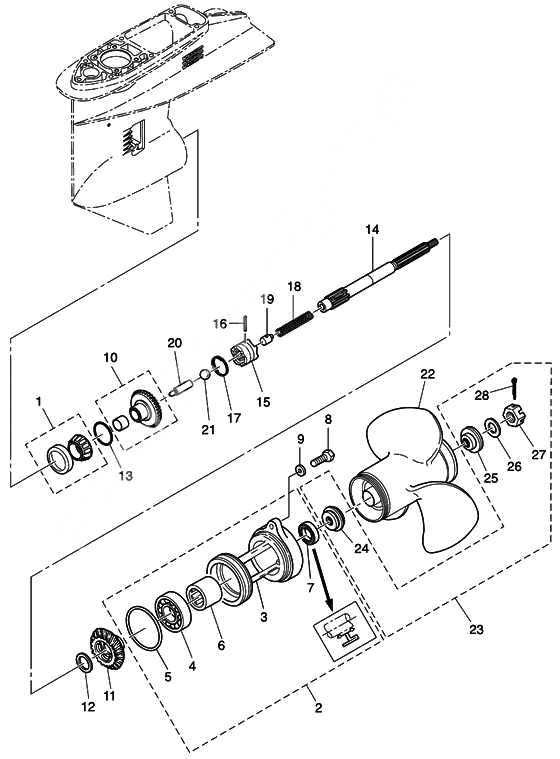

Gear case (propeller shaft) md30/40/50b2 для Tohatsu MD40B2 - 2014 года выпуска`

№

Артикул

Название
1

345-60215-0 Taper roller bearing, 32007

Taper roller bearing, 32007

6 160 ₽
2

3C8Q60100-0 Prop shaft housing assy (amb)

Prop shaft housing assy (amb)

11 690 ₽
3

3C8Q60101-0 Housing propeller shaft (amb)

Housing propeller shaft (amb)

6 670 ₽
4

9601-0-6007 Ball bearing, 6007

Ball bearing, 6007

3 200 ₽
5

345-60103-0 O-Ring

O-Ring

420 ₽
6

345-60211-0 Needle Bearing 22-30-30

Needle Bearing 22-30-30

4 020 ₽
7

334-60223-0 Oil seal, 22-36-10

Oil seal, 22-36-10

2 640 ₽
8

3C8-60108-2 Bolt 6-25

Bolt 6-25

340 ₽
9

9401E3-0600 Washer

Washer

120 ₽
940113-0600 Washer

Washer

140 ₽
10

3C8-64010-1 Bevel Gear A

Bevel Gear A

15 700 ₽
11

3C8-64030-0 Bevel Gear C

Bevel Gear C

15 150 ₽
12

345-64032-0 Washer

Washer

800 ₽
13

353-64036-0 Shim, 36-44-0.3

Shim, 36-44-0.3

480 ₽
13

353-64037-0 Shim,36-44-0.15

Shim,36-44-0.15

480 ₽
13

353-64038-0 Shim,36-44-0.1

Shim,36-44-0.1

540 ₽
14

3C8-64211-0 Propeller Shaft

Propeller Shaft

34 650 ₽
15

3C8-64215-2 New part

New part

6 950 ₽
16

3C8-64217-0 Clutch Pin

Clutch Pin

860 ₽
17

3C8-64219-1 Snap, Clutch Pin

Snap, Clutch Pin

170 ₽
18

3C8-64221-0 Spring Washer

Spring Washer

470 ₽
19

3C8-64222-0 Spring holder clutch

Spring holder clutch

1 600 ₽
20

3C8-64223-1 Push rod, clutch

Push rod, clutch

860 ₽
21

965002-0803 Steel ball, 3/8

Steel ball, 3/8

150 ₽
22

3T5B64518-0 Prop 40d/50d (12.1 dia. x 9 pitch) black-will not fit 40c
OPT 3 X 311 X 229

Prop 40d/50d (12.1 dia. x 9 pitch) black-will not fit 40c
OPT 3 X 311 X 229

0 ₽
22

3T5B64523-0 Prop 40c/40d 50d (11.6 dia. x 11 pitch) black
30PS / STD 3 X 290 X 279

Prop 40c/40d 50d (11.6 dia. x 11 pitch) black
30PS / STD 3 X 290 X 279

15 680 ₽
22

3T5B64525-0 Prop 40c/40d 50d (11.4 dia. x 12 pitch) black
40PS / STD 3 X 283 X 305

Prop 40c/40d 50d (11.4 dia. x 12 pitch) black
40PS / STD 3 X 283 X 305

18 670 ₽
22

3T5B64527-0 Prop 40c/40d 50d (11.1 dia. x 13 pitch) black
50PS / STD 3 X 277 X 330

Prop 40c/40d 50d (11.1 dia. x 13 pitch) black
50PS / STD 3 X 277 X 330

18 670 ₽
22

3T5B64529-0 Prop 40c/40d 50d (11.1 dia. x 14 pitch) black
OPT 3 X 279 X 356

Prop 40c/40d 50d (11.1 dia. x 14 pitch) black
OPT 3 X 279 X 356

18 670 ₽
22

3T5B64532-0 Prop 40c/40d 50d (11.0 dia x 15 pitch) black
OPT 3 X 278 X 381

Prop 40c/40d 50d (11.0 dia x 15 pitch) black
OPT 3 X 278 X 381

18 670 ₽
22

348B64108-1 Prop 40c,d-50d (11.4 dia. x 7.1 pitch) 4 blade
OPT 4 X 290 X 180

Prop 40c,d-50d (11.4 dia. x 7.1 pitch) 4 blade
OPT 4 X 290 X 180

24 350 ₽
23

3T5-87326-0 Propeller Hardwear Kit

Propeller Hardwear Kit

7 950 ₽
24

3C8-64231-0 Thrust holder propeller

Thrust holder propeller

5 310 ₽
25

348-64232-0 Stopper Propeller

Stopper Propeller

3 000 ₽
26

345-64124-0 Washer

Washer

600 ₽
27

353-64121-0 Nut Propeller

Nut Propeller

1 150 ₽
28

951503-0325 Split Pin

Split Pin

210 ₽
