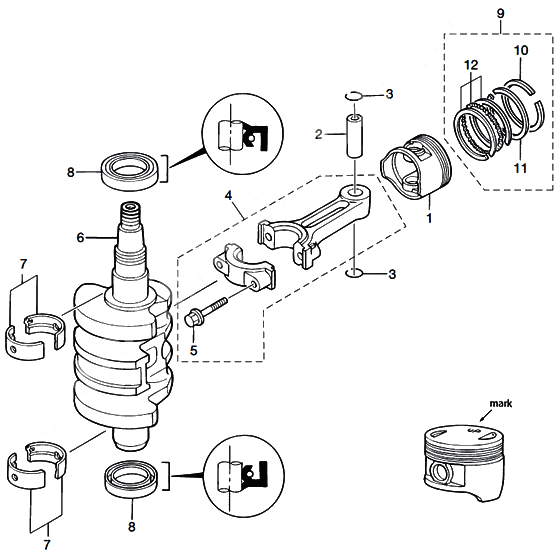

Piston & crank shaft для Tohatsu MFS9.8A3 - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    3V1-00001-1 Piston (std)
    STD
    Piston (std)
    STD
  • 3V1-00001-0 Piston (std)
    Piston (std)
  • 1
    3V1-00004-1 Piston (0.5mm o/z)
    OPT
    Piston (0.5mm o/z)
    OPT
  • 3V1-00004-0 Piston (0.5mm o/z)
    Piston (0.5mm o/z)
  • 2
    332-00021-1 Piston Pin
    Piston Pin
  • 332-00021-0 Piston Pin
    Piston Pin
  • 3
    350-00024-1 Clip piston pin
    Clip piston pin
  • 4
    3V1-00040-0 Connecting Rod
    Connecting Rod
  • 5
    3H6-00059-0 Bolt, Connecting Rod
    Bolt, Connecting Rod
  • 6
    3V1-00030-1 Crankshaft Ass'y
    Crankshaft Ass'y
  • 7
    3V1-07408-0 Bearring(brown)
    BROWN / SEE SERVICE MANUAL
    Bearring(brown)
    BROWN / SEE SERVICE MANUAL
  • 7
    3V1-07407-0 Bearing(Black)
    BLACK / SEE SERVICE MANUAL
    Bearing(Black)
    BLACK / SEE SERVICE MANUAL
  • 8
    3V1-00121-0 Oil Seal 30-45-8
    Oil Seal 30-45-8
  • 9
    3FK-87123-0 Piston ring set std.
    STD
    Piston ring set std.
    STD
  • 9
    3FK-87124-0 Piston ring set, (0.5 o/s)
    OPT
    Piston ring set, (0.5 o/s)
    OPT
  • 10
    3V1-00011-0 Piston Ring TOP
    STD 1ST
    Piston Ring TOP
    STD 1ST
  • 10
    3V1-00014-0 Piston Ring 0.5mm O/S
    OPT 1ST
    Piston Ring 0.5mm O/S
    OPT 1ST
  • 11
    3V1-00012-0 Piston Ring 2nd
    STD 2ND
    Piston Ring 2nd
    STD 2ND
  • 11
    3V1-00015-0 Piston Ring 2nd (0.5mm O/S)
    OPT 2ND
    Piston Ring 2nd (0.5mm O/S)
    OPT 2ND
  • 12
    3V1-00013-0 Piston Ring Oil
    STD OIL
    Piston Ring Oil
    STD OIL
  • 12
    3V1-00016-0 Piston Ring Oil 0.5mm O/S
    OPT OIL
    Piston Ring Oil 0.5mm O/S
    OPT OIL
