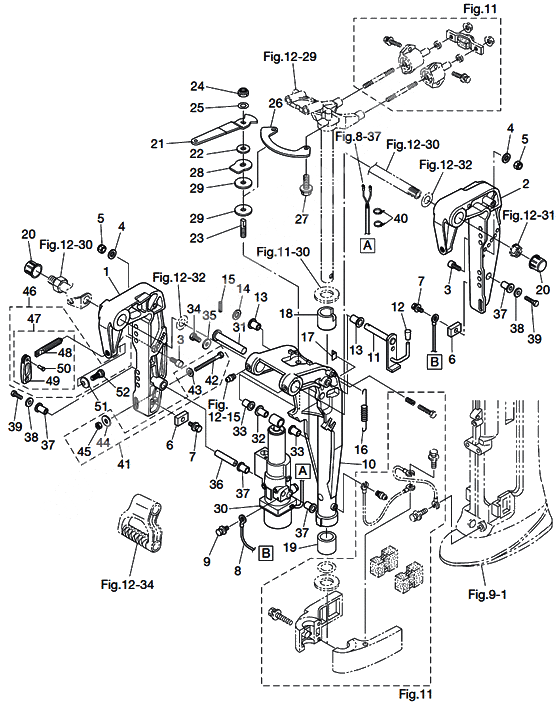

Bracket (eft & ept model) для Tohatsu MFS9.8A3 - 2012 года выпуска`
-
№АртикулНазвание
-
13Z0Q77211-2 Clamp bracket (ptt right) starboard
STERN BRACKET / STARBOARD SIDEClamp bracket (ptt right) starboard
STERN BRACKET / STARBOARD SIDE -
23Z0Q77212-0 Clamp bracket (ptt left) port
STERN BRACKET / PORT SIDEClamp bracket (ptt left) port
STERN BRACKET / PORT SIDE -
33Z0-77115-0 Trim lock pinTrim lock pin
-
43P0-66233-0 New partNew part
-
53V5-62442-0 Nylon Nut(2T)M8 P1.25Nylon Nut(2T)M8 P1.25
-
63H6-60218-0 AnodeAnode
-
7910103-5616 BoltBolt
-
8398-62396-1 Ground WireGround Wire
-
9910103-5612 BoltBolt
-
103V1Q77208-0 Swivel bracket (ptt)Swivel bracket (ptt)
-
113Z0-62476-2 Tilt StopperTilt Stopper
-
3Z0-62476-1 Tilt StopperTilt Stopper
-
12369-62433-1 Grip Tilt StopperGrip Tilt Stopper
-
13353-63207-0 Collar 10.2-12-12Collar 10.2-12-12
-
149401E3-1000 WasherWasher
-
15951403-3516 New partNew part
-
163R0-62473-0 Spring,Tilt StopperSpring,Tilt Stopper
-
173Z0-63035-0 Friction PieceFriction Piece
-
183Z0-62417-0 Bushing 24-30-30Bushing 24-30-30
-
19350-62417-0 Bushing Bracket ShaftBushing Bracket Shaft
-
20346-62127-0 Cap,Bracket Bolt
FOR EFTCap,Bracket Bolt
FOR EFT -
213AA-62441-0 Handle,Co-Pilot
FOR EFTHandle,Co-Pilot
FOR EFT -
223R3-62443-0 Washer
FOR EFTWasher
FOR EFT -
233R3-62445-0 Bolt
FOR EFTBolt
FOR EFT -
24930403-0800 Nylon Nut
FOR EFTNylon Nut
FOR EFT -
259401E3-0800 Washer
FOR EFTWasher
FOR EFT -
940103-0800 WasherWasher
-
263AA-62447-0 Plate,Co-Pilot
FOR EFTPlate,Co-Pilot
FOR EFT -
279101E3-5616 Bolt & washer
FOR EFTBolt & washer
FOR EFT -
283R3-62448-1 Washer, Co Pilot
FOR EFTWasher, Co Pilot
FOR EFT -
293R3-62449-0 Disk, Co Pilot
FOR EFTDisk, Co Pilot
FOR EFT -
303Z0Q77151-1 Power trim & tilt assy. (f8a3/9.8a3)
SEE FIG.14Power trim & tilt assy. (f8a3/9.8a3)
SEE FIG.14 -
313R0-77071-1 Cylinder pin upperCylinder pin upper
-
3KY-77071-0 Cylinder pin upperCylinder pin upper
-
323Z0-77076-0 Bushing 13-16-31Bushing 13-16-31
-
333R0-77076-0 BushingBushing
-
349101E3-0612 BoltBolt
-
910103-0612 BoltBolt
-
35345-05122-1 Washer rachetWasher rachet
-
363Z0-77101-1 Cylinder pin (lower)Cylinder pin (lower)
-
373Z0-77076-0 Bushing 13-16-31Bushing 13-16-31
-
38307-62116-1 WasherWasher
-
399101E3-0820 BoltBolt
-
910103-0820 BoltBolt
-
403Z0-84398-0 Band lead wire 203-local purchaseBand lead wire 203-local purchase
-
413V2-72120-0 Rigging bolt set eft/eptRigging bolt set eft/ept
-
429101E3-0885 BoltBolt
-
9161E3-0885 BoltBolt
-
439401E3-0800 WasherWasher
-
940103-0800 WasherWasher
-
443Z0-61334-0 Washer 8.5-34-3Washer 8.5-34-3
-
45930403-0800 Nylon NutNylon Nut
-
463E3Q62105-0 Clamp screw kitClamp screw kit
-
473E3Q62108-0 Clamp screw assyClamp screw assy
-
483E3-62106-0 Clamp screwClamp screw
-
49332Q62102-1 Handle clamp screwHandle clamp screw
-
503C8-62104-2 RivetRivet
-
3C8-62104-1 RivetRivet
-
51332-62101-1 Pad clamp screw (threaded style)Pad clamp screw (threaded style)
-
523C8-62107-0 Shoulder boltShoulder bolt
