Pulley & timing belt для Tohatsu MFS15C - 2012 года выпуска`
-

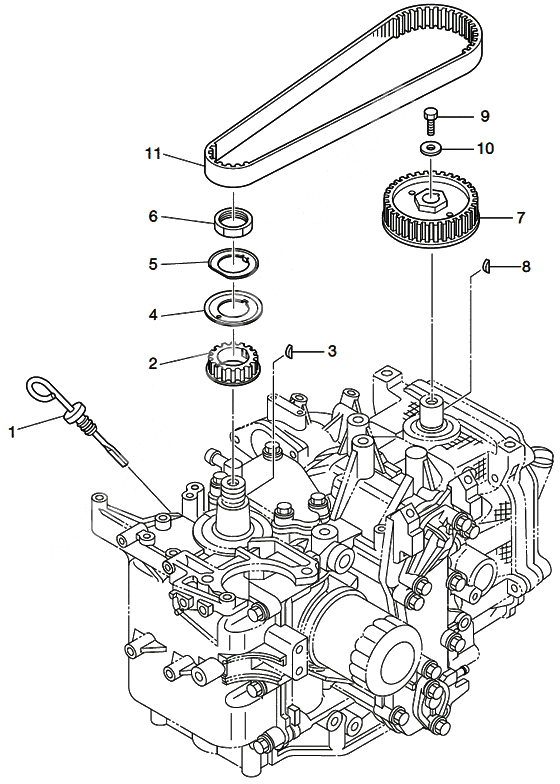

№АртикулНазвание
-
13AC-07421-0 Oil level gaugeOil level gauge
-
23BJ-10060-0 Drive Pulley
TIMING PULLEYDrive Pulley
TIMING PULLEY -
3309-00131-0 Key, Magneto
CRANKSHAFTKey, Magneto
CRANKSHAFT -
43BJ-10063-0 Belt GuideBelt Guide
-
53BJ-10069-0 Lock WasherLock Washer
-
63T5-10068-2 Nut pulleyNut pulley
-
73H8-10062-2 Driven Pulley
CAMSHAFT PULLEYDriven Pulley
CAMSHAFT PULLEY -
8309-00131-0 Key, Magneto
CAMSHAFTKey, Magneto
CAMSHAFT -
93AA-60108-0 Pre-Coated BoltPre-Coated Bolt
-
103H8-10066-0 WasherWasher
-
113H8-10061-0 Timing BeltTiming Belt
