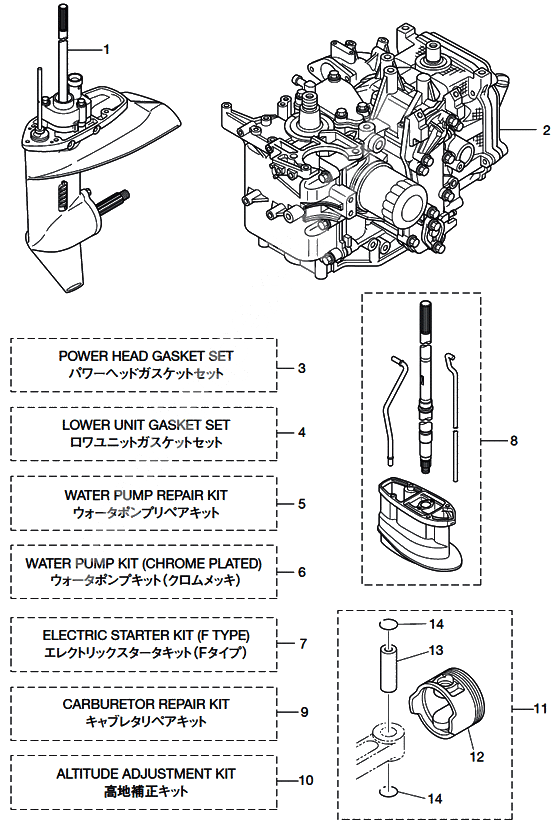

Assembly & kit parts для Tohatsu MFS15C - 2012 года выпуска
-
№АртикулНазвание
-
13BHQ87301-0 Lower unit assy f15/20c (s)
FOR TRANSOM SLower unit assy f15/20c (s)
FOR TRANSOM S -
3BHQ87301-2 Lower unit assy f15/20c (s)Lower unit assy f15/20c (s)
-
13BHQ87302-0 Lower unit assy (l)
FOR TRANSOM LLower unit assy (l)
FOR TRANSOM L -
3BHQ87302-2 Lower unit assy (l)Lower unit assy (l)
-
13BHQ87304-0 Lower unit assy (ul)
FOR TRANSOM ULLower unit assy (ul)
FOR TRANSOM UL -
23BJB87090-3 Engine short block f15c/f20cEngine short block f15c/f20c
-
33BJ-87121-0 Power Head Gasket SetPower Head Gasket Set
-
33BJ-01005-0 Gasket cylinder head f15c/f20cGasket cylinder head f15c/f20c
-
33BJ-01024-0 Cylinder head cover gasketCylinder head cover gasket
-
33R0-07422-0 New partNew part
-
33R3-02305-0 Exhaust CoverExhaust Cover
-
3346-01032-0 New partNew part
-
33R3-01144-0 O-RingO-Ring
-
33R3-07432-1 GascketGascket
-
33V9-07402-1 Gasket oil panGasket oil pan
-
33R3-00121-0 Oil Seal, 32-44-9Oil Seal, 32-44-9
-
33BJ-00121-0 Oil seal 36-50-7Oil seal 36-50-7
-
33BJ-02104-0 Gasket intake manifoldGasket intake manifold
-
33BJ-02011-0 Gasket carburetorGasket carburetor
-
33BJ-02419-0 Seal ring 2.4-35Seal ring 2.4-35
-
33H8-62415-0 O-RingO-Ring
-
33H8-07635-0 O-RingO-Ring
-
33H8-07639-0 O-ring Oil PumpO-ring Oil Pump
-
33H8-07632-0 O-RingO-Ring
-
33H8-07631-0 O-RingO-Ring
-
33H8-07025-0 Oil Seal,18-35-8Oil Seal,18-35-8
-
4398-87321-2 Lower unit seal kit 9.9/15bLower unit seal kit 9.9/15b
-
398-87321-3 Lower unit seal kit 9.9/15bLower unit seal kit 9.9/15b
-
4332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
4121-32071-0 O-RingO-Ring
-
4346-65013-0 Oil' seal, 17-30-9Oil' seal, 17-30-9
-
4332-60223-0 Oil SealOil Seal
-
4336-62415-0 O-RingO-Ring
-
4332-66021-0 O-RingO-Ring
-
4362-02312-2 GasketGasket
-
5362-87322-0 ウォ-タ-ポンプリペアキットウォ-タ-ポンプリペアキット
-
5334-65021-0 Крыльчатка водной помпыКрыльчатка водной помпы
-
5350-65022-0 New partNew part
-
5350-65011-1 New partNew part
-
5350-65025-0 New partNew part
-
59101E3-5652 Bolt & washerBolt & washer
-
6362-65231-0 Chrome Plate Water Pump KitChrome Plate Water Pump Kit
-
6334-65021-0 Крыльчатка водной помпыКрыльчатка водной помпы
-
6362-65238-0 Liner water pump case(chrome)
CHROME PLATEDLiner water pump case(chrome)
CHROME PLATED -
6362-65239-0 Guide Plate Water Pump(chrome)
CHROME PLATEDGuide Plate Water Pump(chrome)
CHROME PLATED -
73BH-76300-1 Electric starter kit (f type)
FOR MFElectric starter kit (f type)
FOR MF -
73C8-76010-1 Starter Motor Ass'yStarter Motor Ass'y
-
73BJ-76009-0 Band Starter MotorBand Starter Motor
-
73C8-76007-0 Rubber Starter MotorRubber Starter Motor
-
79101E3-5825 BoltBolt
-
910103-5825 BoltBolt
-
79101E3-5818 BoltBolt
-
910103-5818 BoltBolt
-
73BJ-76040-0 Starter SolenoidStarter Solenoid
-
7910103-5610 BoltBolt
-
73BJ-76043-0 Bracket starter solenoidBracket starter solenoid
-
7910103-5612 BoltBolt
-
73BJ-76060-1 RectifierRectifier
-
7309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
73BJ-76164-0 Band mountBand mount
-
73Z0-84398-0 Band lead wire 203-local purchaseBand lead wire 203-local purchase
-
7910103-5625 BoltBolt
-
7361-76080-0 Нейтральный переключательНейтральный переключатель
-
73AA-76026-0 Main SwitchMain Switch
-
73BH-76120-0 Battery cable (l=2750 mm)Battery cable (l=2750 mm)
-
73BJ-06133-0 Protector (l=320mm)Protector (l=320mm)
-
73BJ-76145-0 Terminal CapTerminal Cap
-
73R3-76141-0 STARTER CORDSTARTER CORD
-
73BA-06133-0 Protector (l=180mm)Protector (l=180mm)
-
73Y0-76145-0 Terminal CapTerminal Cap
-
73AA-76145-0 Terminal CapTerminal Cap
-
73V1-76066-0 Fuse WireFuse Wire
-
73BJ-76066-0 Fuse cable (l=720mm)Fuse cable (l=720mm)
-
73BJ-76064-0 Bracket fuse holderBracket fuse holder
-
73BJ-84398-0 Lead wire band 135Lead wire band 135
-
73BH-06133-0 ProtectorProtector
-
83BHQ87314-0 Extension housing kit ul
FOR TRANSOM L-->ULExtension housing kit ul
FOR TRANSOM L-->UL -
83BJQ61110-0 Extension housing ulExtension housing ul
-
83BJ-61111-0 Stud BoltStud Bolt
-
83P0-66233-0 New partNew part
-
89301E3-0800 NutNut
-
930103-0800 NutNut
-
83BJ-60003-0 Drive shaft bushingDrive shaft bushing
-
83V1-64332-0 Stopoer,BushingStopoer,Bushing
-
89101E3-5612 Bolt & washerBolt & washer
-
83Z0-65203-0 Lock PlateLock Plate
-
83V1-65204-0 Rubber Mount,13-2.5Rubber Mount,13-2.5
-
89215E3-0510 ScrewScrew
-
921503-0510 ScrewScrew
-
83BJ-65120-0 Water Pipe ULWater Pipe UL
-
83BK-64303-0 Drive Shaft ULDrive Shaft UL
-
83BH-66014-0 Cam rod (ul)Cam rod (ul)
-
8951403-0312 Spring WasherSpring Washer
-
8951407-2512 Spring PinSpring Pin
-
93BJ-87122-0 Carburetor repair kit f15c/f20c
15/20PSCarburetor repair kit f15c/f20c
15/20PS -
93V1-03116-0 O-RingO-Ring
-
93V1-03147-1 Float ValveFloat Valve
-
93C8-03126-0 Float Arm PinFloat Arm Pin
-
93C8-03125-0 FloatFloat
-
9921503-0408 Stud Bolt
15/20PSStud Bolt
15/20PS -
93BA-03121-0 Float chamber gasket
15/20PSFloat chamber gasket
15/20PS -
9922503-0413 Screw
15/20PS FLOAT CHAMBER / CARBURETOR COVERScrew
15/20PS FLOAT CHAMBER / CARBURETOR COVER -
93BJ-03193-0 Gasket
15/20PSGasket
15/20PS -
93BJ-03182-0 Carburetor cover gasket
15/20PSCarburetor cover gasket
15/20PS -
93AA-03193-0 Drain screw gasketDrain screw gasket
-
93BJ-02234-0 Fuel FilterFuel Filter
-
93BJ-03243-0 O-RingO-Ring
-
9921503-0410 Stud Bolt
15/20PSStud Bolt
15/20PS -
103BH-10230-0 High alt. adj. kit mfs15c (~9840 ft.)
15PSHigh alt. adj. kit mfs15c (~9840 ft.)
15PS -
113FS-87130-0 Piston repair kitPiston repair kit
-
123AE-00001-1 Piston std f9.9c/15c/20cPiston std f9.9c/15c/20c
-
133AE-00021-0 Piston PinPiston Pin
-
143H6-00024-0 Clip, Piston PinClip, Piston Pin
