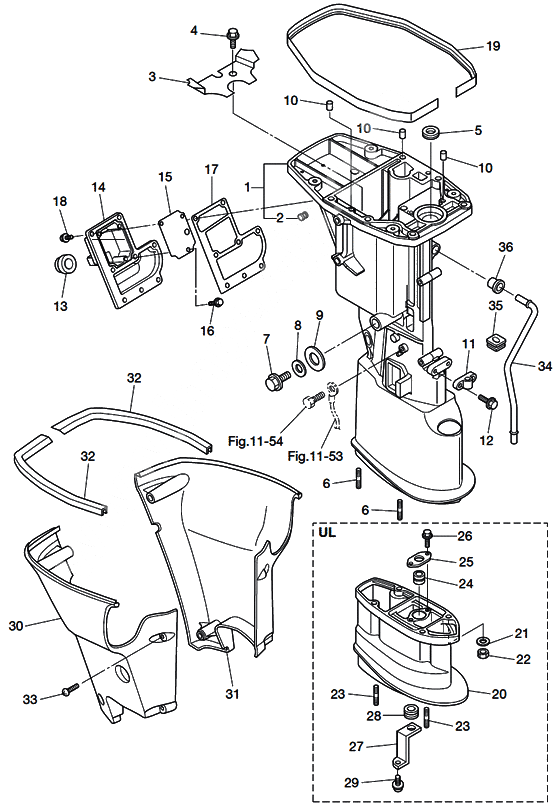

Drive shaft housing для Tohatsu MFS15C - 2012 года выпуска`

№

Артикул

Название
1

3BKQ61020-1 Drive shaft housing s
FOR TRANSOM S

Drive shaft housing s
FOR TRANSOM S

43 620 ₽
3BKQ61020-2 Drive shaft housing s

Drive shaft housing s

45 740 ₽
1

3BKQ61030-0 Drive shaft housing l
FOR TRANSOM L & UL

Drive shaft housing l
FOR TRANSOM L & UL

48 720 ₽
3BKQ61030-1 Drive shaft housing l

Drive shaft housing l

51 080 ₽
2

3H6-07257-0 Exhaust Plug

Exhaust Plug

400 ₽
3

3V9-07440-0 Guide Plate

Guide Plate

830 ₽
4

910103-5612 Bolt

Bolt

140 ₽
5

350-01215-1 Oil Seal

Oil Seal

1 170 ₽
6

3BJ-61111-0 Stud Bolt

Stud Bolt

1 130 ₽
7

3R3-07405-1 Bolt, Drain

Bolt, Drain

1 630 ₽
8

3R3-07406-0 Washer

Washer

290 ₽
9

3R3-67017-0 Grommet, Oil Drain

Grommet, Oil Drain

270 ₽
10

345-01111-0 Dowel Pin 6-12

Dowel Pin 6-12

170 ₽
11

3V6-66037-0 Cam rod holder

Cam rod holder

250 ₽
12

9101E3-5620 Bolt & washer

Bolt & washer

360 ₽
13

3BJ-61207-0 Grommet idle exhaust port

Grommet idle exhaust port

190 ₽
14

3BJQ61208-0 Cover idle exhaust port

Cover idle exhaust port

4 970 ₽
15

3BJ-62114-0 Plate idle exhaust port

Plate idle exhaust port

910 ₽
16

9101E3-0512 Bolt

Bolt

150 ₽
17

3BJ-61220-0 Gasket idle exhaust port

Gasket idle exhaust port

1 640 ₽
18

9101F4-5616 Bolt

Bolt

190 ₽
910114-0616 Bolt

Bolt

110 ₽
19

3R3-67116-0 Резина

Резина

2 490 ₽
20

3BJQ61110-0 Extension housing ul
FOR TRANSOM UL

Extension housing ul
FOR TRANSOM UL

19 830 ₽
21

3P0-66233-0 New part
FOR TRANSOM UL

New part
FOR TRANSOM UL

190 ₽
22

9301E3-0800 Nut
FOR TRANSOM UL

Nut
FOR TRANSOM UL

150 ₽
930103-0800 Nut

Nut

420 ₽
23

3BJ-61111-0 Stud Bolt
FOR TRANSOM UL

Stud Bolt
FOR TRANSOM UL

1 130 ₽
24

3BJ-60003-0 Drive shaft bushing
FOR TRANSOM UL

Drive shaft bushing
FOR TRANSOM UL

10 570 ₽
25

3V1-64332-0 Stopoer,Bushing
FOR TRANSOM UL

Stopoer,Bushing
FOR TRANSOM UL

670 ₽
26

9101E3-5612 Bolt & washer
FOR TRANSOM UL

Bolt & washer
FOR TRANSOM UL

170 ₽
27

3Z0-65203-0 Lock Plate
FOR TRANSOM UL

Lock Plate
FOR TRANSOM UL

450 ₽
28

3V1-65204-0 Rubber Mount,13-2.5
FOR TRANSOM UL

Rubber Mount,13-2.5
FOR TRANSOM UL

330 ₽
29

9215E3-0510 Screw
FOR TRANSOM UL

Screw
FOR TRANSOM UL

120 ₽
921503-0510 Screw

Screw

120 ₽
30

3R3Q67003-1 Cover drive shaft housing r (amb)
STARBOARD SIDE

Cover drive shaft housing r (amb)
STARBOARD SIDE

9 180 ₽
31

3R3Q67004-1 Cover drive shaft housing l (amb)
PORT SIDE

Cover drive shaft housing l (amb)
PORT SIDE

9 180 ₽
32

3R3-61213-0 Seal Rubber, Apron

Seal Rubber, Apron

460 ₽
33

3R0-61217-0 Tapping Screw,6-60

Tapping Screw,6-60

200 ₽
34

3H8-65100-0 Water pipe s
FOR TRANSOM S

Water pipe s
FOR TRANSOM S

1 530 ₽
34

3H8-65110-0 Water Pipe L
FOR TRANSOM L

Water Pipe L
FOR TRANSOM L

1 910 ₽
34

3BJ-65120-0 Water Pipe UL
FOR TRANSOM UL

Water Pipe UL
FOR TRANSOM UL

2 850 ₽
35

3R3-65204-0 Guide Rubber, Water Pipe

Guide Rubber, Water Pipe

200 ₽
36

3R3-65206-1 Seal Rubber, 9.9B/15B

Seal Rubber, 9.9B/15B

230 ₽
