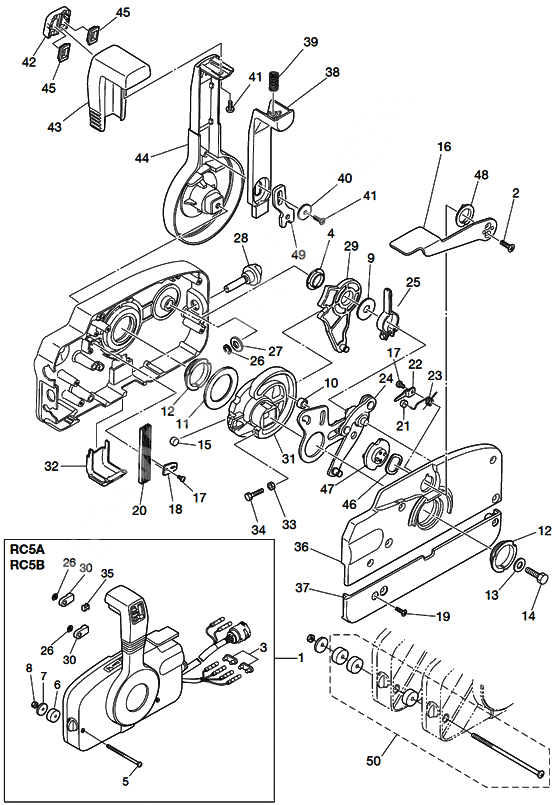

Component parts of remote control для Tohatsu MFS15C - 2012 года выпуска`
-
№АртикулНазвание
-
13ACQ84330-0 Remote control box (rc5a) mfs8-30b w/ptt
RC5A FOR EPT / TOHATSURemote control box (rc5a) mfs8-30b w/ptt
RC5A FOR EPT / TOHATSU -
13AFQ84330-0 Remote control box (rc5a) nsf8-30b w/ptt
RC5A FOR EPT / NISSANRemote control box (rc5a) nsf8-30b w/ptt
RC5A FOR EPT / NISSAN -
13B7Q84340-3 Control Box Ass'y(RC5B)
RC5B FOR EP / TOHATSUControl Box Ass'y(RC5B)
RC5B FOR EP / TOHATSU -
13B1Q84340-3 Rc box rc5b (nsf-15/18b2-15/20c-25b/30b ep) w/o ptt amb
RC5B FOR EP / NISSANRc box rc5b (nsf-15/18b2-15/20c-25b/30b ep) w/o ptt amb
RC5B FOR EP / NISSAN -
2921603-0512 Stud BoltStud Bolt
-
3353-76037-0 Plug Cable Terminal
RC5B FOR EPPlug Cable Terminal
RC5B FOR EP -
43A3-84432-0 Bushing BBushing B
-
53A3-84375-0 Stud BoltStud Bolt
-
63A3-84374-0 SpacerSpacer
-
7353-84371-0 WasherWasher
-
8930103-0600 NutNut
-
93A3-84383-0 WasherWasher
-
103A3-84421-0 RollerRoller
-
113A3-84422-0 Thrust PlateThrust Plate
-
123A3-84431-0 Bushing ABushing A
-
13940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
143A3-84442-0 BoltBolt
-
15353-84388-0 Roller Throttle DrumRoller Throttle Drum
-
163B7Q84312-0 Free throttle leverFree throttle lever
-
17921503-0406 Stud BoltStud Bolt
-
183A3-84423-0 Retainer DetentRetainer Detent
-
19921603-0518 Stud BoltStud Bolt
-
203A3-84307-0 Spring DetentSpring Detent
-
213A3-84424-0 Roller Free AccelRoller Free Accel
-
223A3-84426-0 Retainer RollerRetainer Roller
-
233A3-84425-0 Spring Free AccelSpring Free Accel
-
243A3-84365-1 Throttle ArmThrottle Arm
-
253A3-84428-0 Arm Throttle FrictionArm Throttle Friction
-
26945303-0600 E-RingE-Ring
-
27353-84394-0 WasherWasher
-
283A3-84427-0 Adjust ScrewAdjust Screw
-
293A3-84381-0 Shift Gear Ass'yShift Gear Ass'y
-
303A3-83314-2 Terminal EyeTerminal Eye
-
313A3-84364-2 Drive GearDrive Gear
-
323A3-84429-0 Wire CoverWire Cover
-
33930103-0500 NutNut
-
34910103-0525 BoltBolt
-
353A3-84376-0 GrommetGrommet
-
363B7Q84441-0 Rear housingRear housing
-
373B7Q84366-0 Rear panelRear panel
-
383A3-84401-0 Arm Neutral LockArm Neutral Lock
-
393A3-84403-0 Spring Neutral LockSpring Neutral Lock
-
403A3-84407-0 Washer Lock ArmWasher Lock Arm
-
41921503-0510 Stud BoltStud Bolt
-
423A3-84451-0 Finisher TiltFinisher Tilt
-
433A3-84404-0 GripGrip
-
443B7Q84343-0 Control lever (amb)Control lever (amb)
-
453A3-84452-0 Plug Tilt Switch
RC5B FOR EPPlug Tilt Switch
RC5B FOR EP -
463A3-84368-0 WasherWasher
-
473A3-84391-0 Drum Free AccelDrum Free Accel
-
483A3-84435-0 Bushing EBushing E
-
493A3-84406-0 Plate, Lock ArmPlate, Lock Arm
-
503A3-81301-0 Twin Remote Control Box KitTwin Remote Control Box Kit
