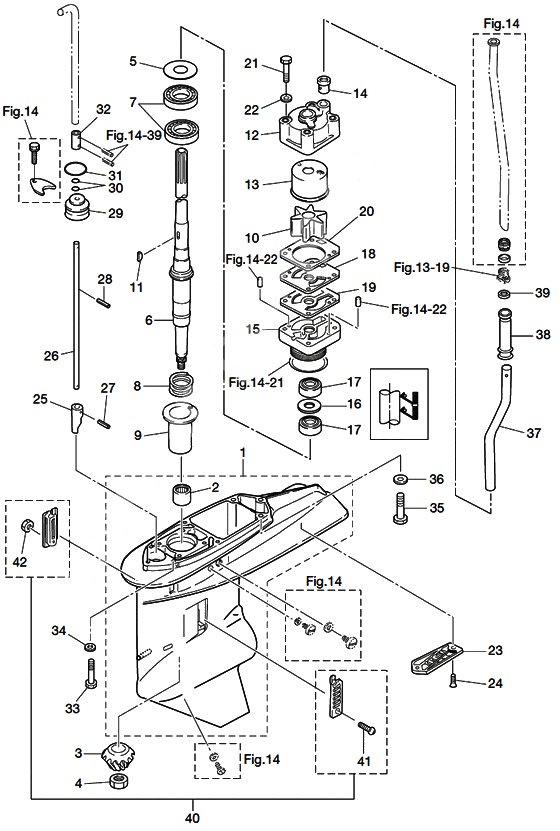

Gear case (drive shaft) mwd50b2 для Tohatsu MD50B2 - 2012 года выпуска`
-
№АртикулНазвание
-
2353-60211-0 New partNew part
-
33F3-64020-0 Bevel Gear BBevel Gear B
-
4353-64027-0 Nut Bevel Gear BNut Bevel Gear B
-
5353-64081-0 Shim 44-50.5-0.1Shim 44-50.5-0.1
-
5353-64082-0 Shim 44-50.5-0.15Shim 44-50.5-0.15
-
5353-64083-0 Shim 44-50.5-0.3Shim 44-50.5-0.3
-
73S7-60213-0 Bearing,6205rBearing,6205r
-
8353-64327-0 Пружина валаПружина вала
-
93A3-64328-0 Guide Drive Shaft SpringGuide Drive Shaft Spring
-
103B7-65021-2 Крыльчатка водной помпыКрыльчатка водной помпы
-
113B7-65022-0 Key, water pump impellerKey, water pump impeller
-
123B7-65016-0 Upper pump case ass'yUpper pump case ass'y
-
133B7-65238-0 Liner, chrome plated water pump case
CHROME PLATEDLiner, chrome plated water pump case
CHROME PLATED -
143B7-65014-0 Lower seal rubber, water pipeLower seal rubber, water pipe
-
153F3-65017-1 Pump Case LowerPump Case Lower
-
163F3-64084-0 Shim,36.5-30-0.5Shim,36.5-30-0.5
-
173F3-60223-0 Oil Seal 22-37-8Oil Seal 22-37-8
-
183F3-65239-1 Guide plate,chrome plated
CHROME PLATEDGuide plate,chrome plated
CHROME PLATED -
193B7-65029-0 Gasket, guide plateGasket, guide plate
-
203B7-65018-0 Прокладка насосаПрокладка насоса
-
219161E3-0880 BoltBolt
-
22940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
233F3-60204-0 Sub Water StrainerSub Water Strainer
-
24921503-0608 Stud BoltStud Bolt
-
27951403-3514 Spring WasherSpring Washer
-
28951403-3510 New partNew part
-
293B7-66031-1 Bushing, Cam Rod / O-Ring,1.9-6.8Bushing, Cam Rod / O-Ring,1.9-6.8
-
30345-66021-0 O-RingO-Ring
-
313B7-66023-0 O-RingO-Ring
-
333T1-60001-1 Bolt 8-35Bolt 8-35
-
349402E3-0800 WasherWasher
-
940203-0800 WasherWasher
-
353B7-60001-5 BoltBolt
-
369402E3-1000 WasherWasher
-
39345-65205-0 Collar, 18-20-4.5Collar, 18-20-4.5
-
403B7-60205-0 Water Strainer SetWater Strainer Set
-
41921503-0438 Stud BoltStud Bolt
-
42930403-0400 Nylon NutNylon Nut
