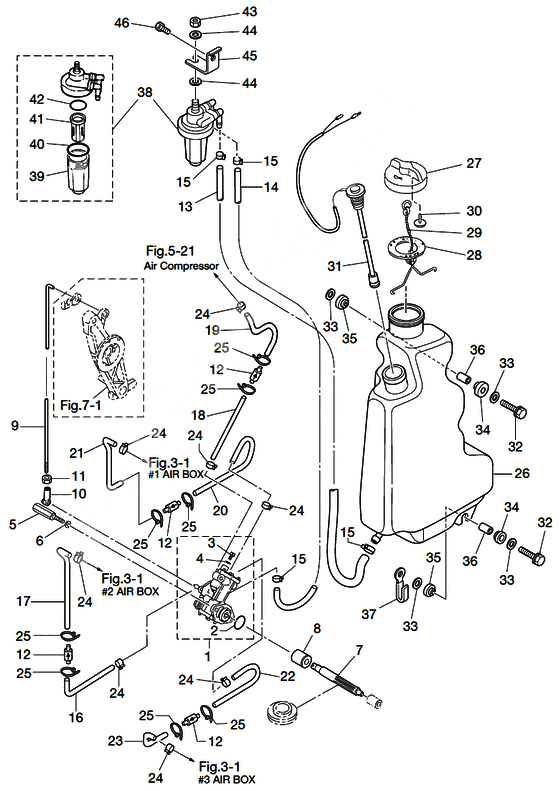

Oil pump для Tohatsu MD50B2 - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    3T5-09000-0 Oil Pump Ass'y
    Oil Pump Ass'y
  • 2
    3B7-09002-0 O-Ring
    O-Ring
  • 3
    3B7-09004-0 Bolt, Air Vent
    Bolt, Air Vent
  • 4
    3B7-09006-0 Washer
    Washer
  • 5
    3C8-09050-1 Bolt oil pump
    Bolt oil pump
  • 6
    941303-0600 New part
    New part
  • 7
    3C8-09065-0 Driven Gear Oil Pump
    Driven Gear Oil Pump
  • 8
    3C8-09069-0 Bushing
    Bushing
  • 9
    3C8-09053-1 Link Rod
    Link Rod
  • 10
    3B7-05243-0 New part
    New part
  • 11
    930103-0500 Nut
    Nut
  • 12
    3B7-09075-1 Check Valve Complete
    OIL PUMP-AIR COMP / OIL PUMP-AIR CHAMBER
    Check Valve Complete
    OIL PUMP-AIR COMP / OIL PUMP-AIR CHAMBER
  • 13
    99AA-6-0570 Oil pipe (1 ea.=1.5 meter/59.05 inches)
    OIL TANK-OIL FILTER / 99AA-6-1000
    Oil pipe (1 ea.=1.5 meter/59.05 inches)
    OIL TANK-OIL FILTER / 99AA-6-1000
  • 99AA-6-1000 Oil pipe (1 ea.=1.5 meter/59.05 inches)
    Oil pipe (1 ea.=1.5 meter/59.05 inches)
  • 14
    99AA-6-0175 Oil pipe (1 ea.=1.5 meter/59.05 inches)
    OIL FILTER-OIL PUMP / 99AA-6-1000
    Oil pipe (1 ea.=1.5 meter/59.05 inches)
    OIL FILTER-OIL PUMP / 99AA-6-1000
  • 99AA-6-1000 Oil pipe (1 ea.=1.5 meter/59.05 inches)
    Oil pipe (1 ea.=1.5 meter/59.05 inches)
  • 15
    3AB-35143-0 Clip @ 9.5
    OIL TANK-OIL FILTER / OIL FILTER-OIL PUMP
    Clip @ 9.5
    OIL TANK-OIL FILTER / OIL FILTER-OIL PUMP
  • 16
    99AA-2-0200 Vinyl pipe (1 ea.=1 meter)
    OIL PUMP-#2C/VALVE / 99AA-2-1000
    Vinyl pipe (1 ea.=1 meter)
    OIL PUMP-#2C/VALVE / 99AA-2-1000
  • 99AA-2-1000 Vinyl pipe (1 ea.=1 meter)
    Vinyl pipe (1 ea.=1 meter)
  • 17
    99AA-2-0140 Vinyl pipe (1 ea.=1 meter)
    #2C/VALVE-#2AIR BOX / 99AA-2-1000
    Vinyl pipe (1 ea.=1 meter)
    #2C/VALVE-#2AIR BOX / 99AA-2-1000
  • 99AA-2-1000 Vinyl pipe (1 ea.=1 meter)
    Vinyl pipe (1 ea.=1 meter)
  • 18
    99AA-2-0120 Vinyl pipe (1 ea.=1 meter)
    OIL PUMP-#4C/VALVE / 99AA-2-1000
    Vinyl pipe (1 ea.=1 meter)
    OIL PUMP-#4C/VALVE / 99AA-2-1000
  • 99AA-2-1000 Vinyl pipe (1 ea.=1 meter)
    Vinyl pipe (1 ea.=1 meter)
  • 19
    99AA-2-0160 Vinyl pipe (1 ea.=1 meter)
    #4C/VALVE-AIR COMP / 99AA-2-1000
    Vinyl pipe (1 ea.=1 meter)
    #4C/VALVE-AIR COMP / 99AA-2-1000
  • 99AA-2-1000 Vinyl pipe (1 ea.=1 meter)
    Vinyl pipe (1 ea.=1 meter)
  • 20
    99AA-2-0140 Vinyl pipe (1 ea.=1 meter)
    OIL PUMP-#1C/VALVE / 99AA-2-1000
    Vinyl pipe (1 ea.=1 meter)
    OIL PUMP-#1C/VALVE / 99AA-2-1000
  • 99AA-2-1000 Vinyl pipe (1 ea.=1 meter)
    Vinyl pipe (1 ea.=1 meter)
  • 21
    99AA-2-0200 Vinyl pipe (1 ea.=1 meter)
    #1C/VALVE-#1AIR BOX / 99AA-2-1000
    Vinyl pipe (1 ea.=1 meter)
    #1C/VALVE-#1AIR BOX / 99AA-2-1000
  • 99AA-2-1000 Vinyl pipe (1 ea.=1 meter)
    Vinyl pipe (1 ea.=1 meter)
  • 22
    99AA-2-0200 Vinyl pipe (1 ea.=1 meter)
    OIL PUMP-#3C/VALVE / 99AA-2-1000
    Vinyl pipe (1 ea.=1 meter)
    OIL PUMP-#3C/VALVE / 99AA-2-1000
  • 99AA-2-1000 Vinyl pipe (1 ea.=1 meter)
    Vinyl pipe (1 ea.=1 meter)
  • 23
    99AA-2-0100 Vinyl pipe (1 ea.=1 meter)
    #3C/VALVE-#3AIR BOX / 99AA-2-1000
    Vinyl pipe (1 ea.=1 meter)
    #3C/VALVE-#3AIR BOX / 99AA-2-1000
  • 99AA-2-1000 Vinyl pipe (1 ea.=1 meter)
    Vinyl pipe (1 ea.=1 meter)
  • 24
    3B7-09052-0 Clip 6.8
    OIL PUMP AIR CHAMBER / AIR COMPRESSOR
    Clip 6.8
    OIL PUMP AIR CHAMBER / AIR COMPRESSOR
  • 369-70098-2 Clip 6.8
    Clip 6.8
  • 25
    3T5-84398-0 Band Lead Wire 104
    CHECK VALVE
    Band Lead Wire 104
    CHECK VALVE
  • 26
    3T5-71010-0 Oil Tank
    Oil Tank
  • 27
    3C8-71015-0 Cap Oil Tank
    Cap Oil Tank
  • 28
    3C8-71016-0 Gasket 36-52-2
    Gasket 36-52-2
  • 29
    3C8-71017-0 Hook Tank Cap
    Hook Tank Cap
  • 30
    3C8-71018-0 Check Valve Oil Tank
    Check Valve Oil Tank
  • 31
    3T5-71020-0 Oil Level Sensor
    Oil Level Sensor
  • 32
    910103-6630 Bolt
    Bolt
  • 33
    346-67115-0 Washer
    Washer
  • 34
    346-67113-0 Mount Rubber
    Mount Rubber
  • 35
    3B7-06920-0 Mount Rubber, 8.5-14-2.5
    Mount Rubber, 8.5-14-2.5
  • 36
    346-67114-1 Spacer
    Spacer
  • 346-67114-0 Spacer
    Spacer
  • 37
    3T4-06972-1 Clamp
    Clamp
  • 3T4-06972-0 Clamp
    Clamp
  • 38
    3C7-71030-0 Filter Ass'y
    Filter Ass'y
  • 39
    3B7-02237-0 Cup
    Cup
  • 40
    3B7-02235-0 O-Ring A
    O-Ring A
  • 41
    3C7-71033-0 Filter
    Filter
  • 42
    3B7-02236-0 O???? b
    O???? b
  • 43
    930103-0800 Nut
    Nut
  • 44
    940103-0800 Washer -> 940113-0800
    Washer -> 940113-0800
  • 45
    3T5-02239-0 Plate, Filter
    Plate, Filter
  • 46
    910103-6614 Bolt
    Bolt
