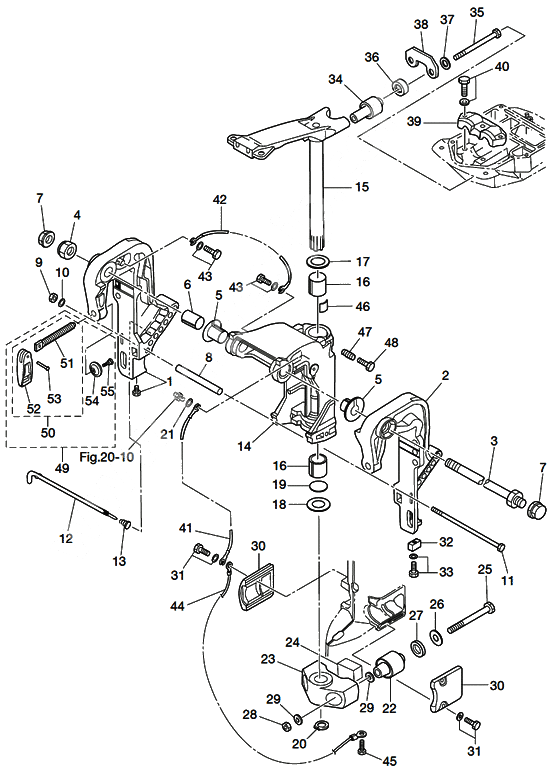

Bracket (1) manual tilt (efo/epo model) для Tohatsu MD50B2 - 2012 года выпуска`
-
№АртикулНазвание
-
13C8Q62112-1 Stern bracket right (amb)
STERN BRACKET / STARBOARD SIDEStern bracket right (amb)
STERN BRACKET / STARBOARD SIDE -
3C8Q62112-0 Stern bracket right (amb)Stern bracket right (amb)
-
23C8Q62113-1 Stern bracket left (amb)
STERN BRACKET / PORT SIDEStern bracket left (amb)
STERN BRACKET / PORT SIDE -
3C8Q62113-0 Stern bracket left (amb)Stern bracket left (amb)
-
33AC-62191-0 Swivel bracket bolt
BRACKET BOLTSwivel bracket bolt
BRACKET BOLT -
4346-62124-1 Bracket nutBracket nut
-
5349-62126-0 Bushing, Bracket BoltBushing, Bracket Bolt
-
63C8-62132-0 BushingBushing
-
7346-62127-0 Cap,Bracket Bolt
FOR F TYPECap,Bracket Bolt
FOR F TYPE -
83C8-62117-1 Distance PieceDistance Piece
-
9930103-0800 NutNut
-
109401E3-0800 WasherWasher
-
940103-0800 WasherWasher
-
113C8-62120-1 Bolt 8-170Bolt 8-170
-
123C8-62121-1 Thrust RodThrust Rod
-
13345-62122-2 Spring Thrust RodSpring Thrust Rod
-
143C8Q62310-3 Swivel bracket (amb)Swivel bracket (amb)
-
3C8Q62310-2 Swivel bracket (amb)Swivel bracket (amb)
-
153C8Q62010-3 Invalid partInvalid part
-
16345-62417-0 Bushing Steering ShaftBushing Steering Shaft
-
173A0-62423-2 Upper Thrust PlateUpper Thrust Plate
-
18346-62424-1 Trust Plate LowerTrust Plate Lower
-
193H8-62415-0 O-RingO-Ring
-
20945103-2500 ClipClip
-
21940103-0600 WasherWasher
-
223C8-61302-0 Lower Mount RubberLower Mount Rubber
-
233C8Q61411-3 Mount bracket (amb)Mount bracket (amb)
-
3C8Q61411-2 Mount bracket (amb)Mount bracket (amb)
-
243C8-61336-0 Damper RubberDamper Rubber
-
253C8-61321-1 Bolt Lower Mount RubberBolt Lower Mount Rubber
-
26353-61334-0 WasherWasher
-
273C7-61338-0 Damper RubberDamper Rubber
-
28930403-1200 Nylon NutNylon Nut
-
299402E3-1200 WasherWasher
-
303C8Q61342-0 Mount holding plate lower (amb)
RUBBER MOUNT CAPMount holding plate lower (amb)
RUBBER MOUNT CAP -
319101E3-5620 Bolt & washerBolt & washer
-
323B7-60218-1 Anode
FOR EFO/EPO MODELAnode
FOR EFO/EPO MODEL -
33910103-5635 Bolt & washer
FOR EFO/EPO MODELBolt & washer
FOR EFO/EPO MODEL -
9101E3-5635 Bolt & washerBolt & washer
-
343E3-61301-1 Upper Mount RobberUpper Mount Robber
-
35353-61307-1 Bolt upperBolt upper
-
363E3-61333-0 Upper Damper RubberUpper Damper Rubber
-
37353-61335-0 WasherWasher
-
383E3-61335-0 Upper Lock PlateUpper Lock Plate
-
393C8-61341-0 Cap Upper Mount Rubber
RUBBER MOUNT CAPCap Upper Mount Rubber
RUBBER MOUNT CAP -
409101E3-5835 Bolt & washerBolt & washer
-
413C8-62396-1 Ground Wire
SWIVEL BRACKET / -DRIVE SHAFT HOUSINGGround Wire
SWIVEL BRACKET / -DRIVE SHAFT HOUSING -
42398-62396-1 Ground Wire
CLAMP BRACKET -SWIVEL BRACKETGround Wire
CLAMP BRACKET -SWIVEL BRACKET -
439101E3-5612 Bolt & washer
CLAMP BRACKET -SWIVEL BRACKETBolt & washer
CLAMP BRACKET -SWIVEL BRACKET -
443A3-62396-1 New part
MOUNT BRACKET -DRIVE SHAFT HOUSINGNew part
MOUNT BRACKET -DRIVE SHAFT HOUSING -
459101E3-5612 Bolt & washerBolt & washer
-
46345-62441-0 Friction PlateFriction Plate
-
47346-62421-1 Spring Friction PlateSpring Friction Plate
-
489101E3-0830 BoltBolt
-
910103-0830 BoltBolt
-
493E3Q62105-0 Clamp screw kitClamp screw kit
-
503E3Q62108-0 Clamp screw assyClamp screw assy
-
513E3-62106-0 Clamp screwClamp screw
-
52332Q62102-1 Handle clamp screwHandle clamp screw
-
533C8-62104-2 RivetRivet
-
3C8-62104-1 RivetRivet
-
54332-62101-1 Pad clamp screw (threaded style)Pad clamp screw (threaded style)
-
553C8-62107-0 Shoulder boltShoulder bolt
