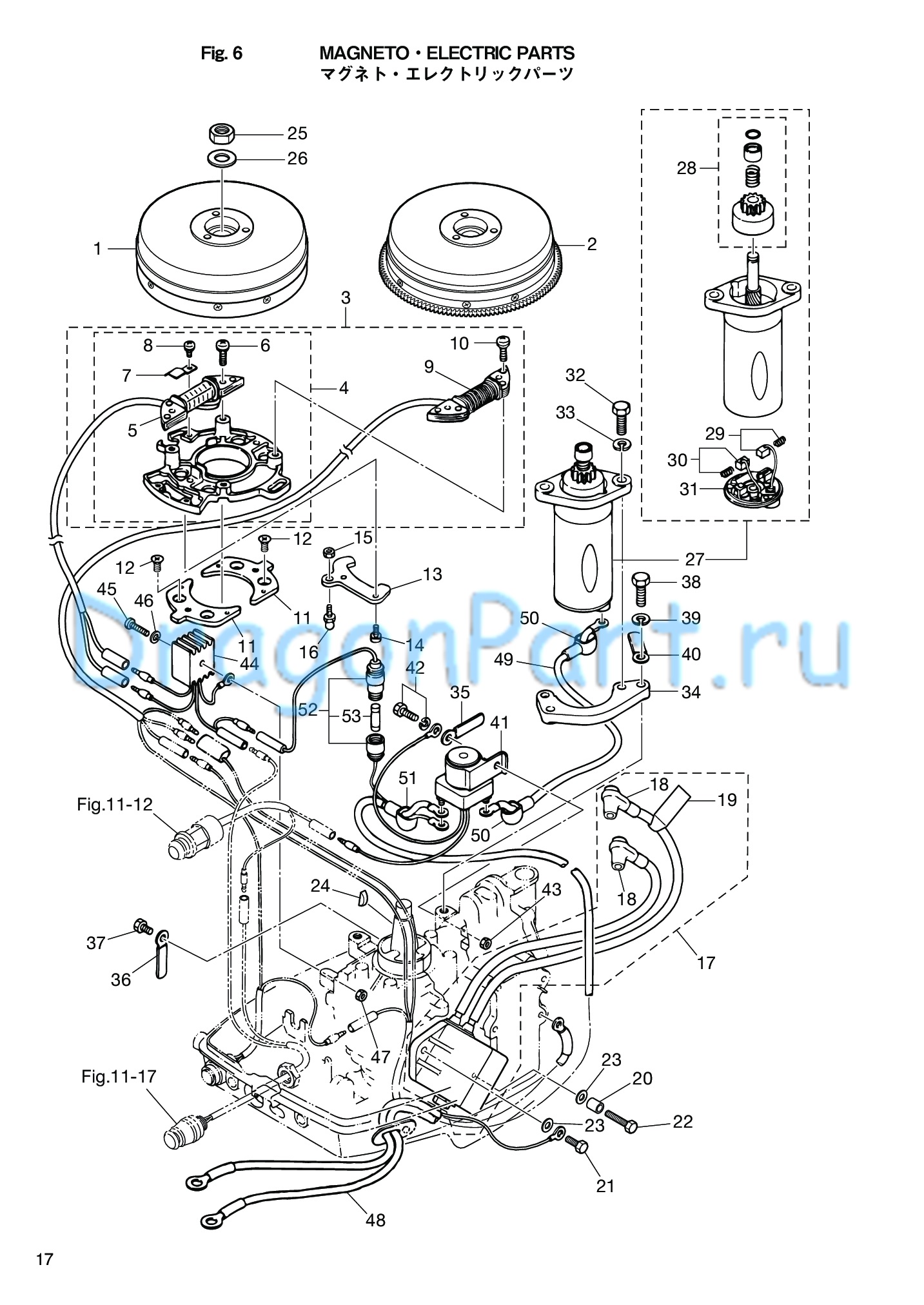

MAGNETO ELECTRIC PARTS для Tohatsu M6B - 2012 года выпуска`
-
№АртикулНазвание
-
6-13B2-06101-0 FLYWHEEL ASSY
for MFFLYWHEEL ASSY
for MF -
6-43B2-06102-2 * COIL PLATE ASSY
for MF without Altenator* COIL PLATE ASSY
for MF without Altenator -
6-53B2-06120-0 ** EXCITER COIL
ALL** EXCITER COIL
ALL -
6-6921521-6625 ** SCREW
for MF** SCREW
for MF -
6-73B2-06135-0 ** HOLDER
ALL** HOLDER
ALL -
6-8921521-6406 ** SCREW
ALL** SCREW
ALL -
6-113B2-63724-0 SETTING PLATESETTING PLATE
-
6-12921621-0612 SCREWSCREW
-
6-133B2-05233-1 COIL PLATE STOPPER
for M8B, M6BCOIL PLATE STOPPER
for M8B, M6B -
6-14921503-6510 SCREWSCREW
-
6-15930103-0600 NUTNUT
-
6-16346-05228-1 BALL JOINTBALL JOINT
-
6-173B2-06170-0 CD UNIT ASSYCD UNIT ASSY
-
6-18346-06999-0 * PLUG CAP W/RESISTANCE* PLUG CAP W/RESISTANCE
-
6-193C8-72181-0 * CAUTION DECAL (B)* CAUTION DECAL (B)
-
6-203B2-06162-0 SPACER 6.2-9-27SPACER 6.2-9-27
-
6-219101F4-0620 BOLTBOLT
-
6-229101F4-0645 BOLTBOLT
-
6-23940103-0600 WASHERWASHER
-
6-24338-00131-0 KEY
MagnetoKEY
Magneto -
6-25369-00132-0 NUT 12-P1.25NUT 12-P1.25
-
6-26940121-1200 WASHER"WASHER"
