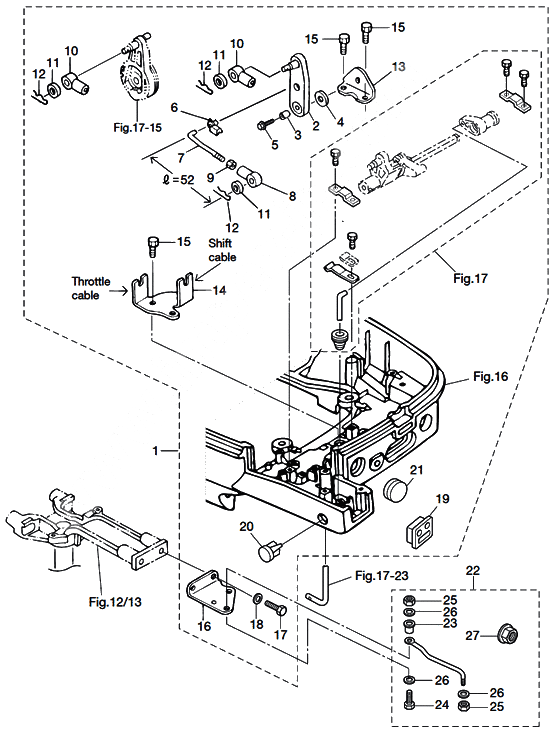

Remote control для Tohatsu MFS30B - 2011 года выпуска`
-
№АртикулНазвание
-
13AC-83880-1 Remote Control Fitting PartsRemote Control Fitting Parts
-
3AC-83880-2 Remote Control Fitting PartsRemote Control Fitting Parts
-
23AC-66122-0 Shift arm (remote control)Shift arm (remote control)
-
3353-76079-0 Collar 6.2-9-9.3Collar 6.2-9-9.3
-
43R0-66308-0 WasherWasher
-
59101E3-5620 Bolt & washerBolt & washer
-
63C8-63733-0 Rod Snap 5-3Rod Snap 5-3
-
73R0-63709-0 Link RodLink Rod
-
83R0-83715-0 Cable JointCable Joint
-
9930103-0500 NutNut
-
103B7-83715-1 Cable JointCable Joint
-
3B7-83715-2 Cable JointCable Joint
-
113AA-83719-0 WasherWasher
-
12951603-0800 R-PinR-Pin
-
133R0-66126-0 Bracket,Shift ArmBracket,Shift Arm
-
143R0-83820-0 Bracket,CableBracket,Cable
-
159101E3-5616 Bolt & washerBolt & washer
-
163R0-83830-0 Steetring Hook PlateSteetring Hook Plate
-
17910103-1030 BoltBolt
-
18940103-1000 WasherWasher
-
193R0-83732-0 Grommet,control CableGrommet,control Cable
-
203B7-01046-0 PlugPlug
-
21345-67117-0 New partNew part
-
223E0-84905-0 Drag link assy
FOR EP/EPTDrag link assy
FOR EP/EPT -
233E0-84914-0 Spacer Drag Link H
FOR EP/EPTSpacer Drag Link H
FOR EP/EPT -
243E0-84917-0 Bolt 3/8-50
FOR EP/EPTBolt 3/8-50
FOR EP/EPT -
25353-84918-0 Nylon Nut 3/8
FOR EP/EPTNylon Nut 3/8
FOR EP/EPT -
26353-84916-0 Washer
FOR EP/EPTWasher
FOR EP/EPT -
273F3-84908-0 Seal Ring Drag Link
FOR EP/EPTSeal Ring Drag Link
FOR EP/EPT
Все узлы модели:
- Assembly & kits
- Bottom cowl
- Bracket (manual tilt)
- Bracket (ptt & gas assist)
- Component parts of remote control box assy. (electrical parts)
- Component parts of remote control box assy.
- Cylinder & crank case
- Cylinder head & oil pump
- Drive shaft housing
- Electric parts
- Fuel system
- Intake manifold
- Lower unit
- Magneto
- Optional parts (accessories)
- Piston & crank shaft
- Power tilt assembly
- Pulley & timing belt
- Recoil starter
- • Remote control
- Separate fuel tank
- Shift & throttle
- Tiller handle
- Top cowl
- Twin remote control
