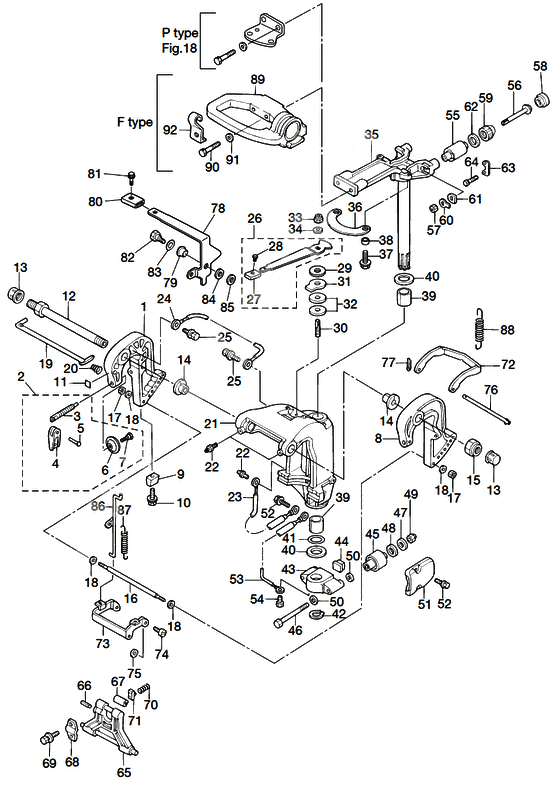

Bracket (manual tilt) для Tohatsu MFS30B - 2011 года выпуска
-
№АртикулНазвание
-
13AEQ62112-2 Clamp bracket right
STARBOARDClamp bracket right
STARBOARD -
23AAQ62105-0 Clamp screw kit (w/pad & bolt)Clamp screw kit (w/pad & bolt)
-
33AA-62106-0 Clamp screwClamp screw
-
4332Q62102-1 Handle clamp screwHandle clamp screw
-
53C8-62104-2 RivetRivet
-
3C8-62104-1 RivetRivet
-
6332-62101-1 Pad clamp screw (threaded style)Pad clamp screw (threaded style)
-
73C8-62107-0 Shoulder boltShoulder bolt
-
83AEQ62113-2 Clamp bracket left
PORTClamp bracket left
PORT -
93B7-60218-1 AnodeAnode
-
10910103-5630 BoltBolt
-
113H8-72049-0 Labe
FOR MF/EFLabe
FOR MF/EF -
123AC-62191-0 Swivel bracket boltSwivel bracket bolt
-
13346-62127-0 Cap,Bracket Bolt
FOR MF/EFCap,Bracket Bolt
FOR MF/EF -
14349-62126-0 Bushing, Bracket BoltBushing, Bracket Bolt
-
15346-62124-1 Bracket nutBracket nut
-
16346-62117-1 Distance PieceDistance Piece
-
179301E3-0600 NutNut
-
930103-0600 NutNut
-
189401E3-0600 WasherWasher
-
940113-0600 WasherWasher
-
19345-62121-1 Thrust RodThrust Rod
-
20345-62122-2 Spring Thrust RodSpring Thrust Rod
-
213AEQ62310-2 Swivel bracketSwivel bracket
-
3AEQ62310-0 Swivel bracketSwivel bracket
-
22344-67177-1 Grease NippleGrease Nipple
-
233C8-62396-1 Ground WireGround Wire
-
24398-62396-1 Ground WireGround Wire
-
25910103-5612 BoltBolt
-
263AC-62450-0 Handle co-pilot
FOR MF /EFHandle co-pilot
FOR MF /EF -
273AC-63012-0 Grip
FOR MF /EFGrip
FOR MF /EF -
28346-66334-0 Stopper
FOR MF /EFStopper
FOR MF /EF -
293R3-62443-0 Washer
FOR MF /EFWasher
FOR MF /EF -
303R3-62445-0 Bolt
FOR MF /EFBolt
FOR MF /EF -
313R3-62448-1 Washer, Co Pilot
FOR MF /EFWasher, Co Pilot
FOR MF /EF -
323R3-62449-0 Disk, Co Pilot
FOR MF /EFDisk, Co Pilot
FOR MF /EF -
33930403-0800 Nylon Nut
FOR MF /EFNylon Nut
FOR MF /EF -
349401E3-0800 Washer
FOR MF /EFWasher
FOR MF /EF -
940103-0800 WasherWasher
-
353R0Q62010-1 Steering shaft assySteering shaft assy
-
3AHQ62010-0 Steering shaft assySteering shaft assy
-
363AC-62447-0 Plate co-pilot
FOR MF /EFPlate co-pilot
FOR MF /EF -
379101E3-5616 Bolt & washer
FOR MF /EFBolt & washer
FOR MF /EF -
383AC-63619-0 Collar
FOR MF /EFCollar
FOR MF /EF -
39353-62417-0 BushingBushing
-
40353-62423-1 Thrust PlateThrust Plate
-
41353-62415-0 O-RingO-Ring
-
42945103-2800 C-RingC-Ring
-
945127-2800 C-RingC-Ring
-
433AEQ61411-1 Mount bracketMount bracket
-
3AEQ61411-0 Mount bracketMount bracket
-
443C8-61336-0 Damper RubberDamper Rubber
-
453C8-61302-0 Lower Mount RubberLower Mount Rubber
-
463R0-61321-0 Bolt,Lower Mount RubberBolt,Lower Mount Rubber
-
47353-61334-0 WasherWasher
-
483C7-61338-0 Damper RubberDamper Rubber
-
493R0-61324-0 Nylon Nut,12-P1.25Nylon Nut,12-P1.25
-
509402E3-1200 WasherWasher
-
513R0Q61342-0 Mount holding plate (lower)
RUBBER MOUNT CAP (LOWER)Mount holding plate (lower)
RUBBER MOUNT CAP (LOWER) -
529101E3-5620 Bolt & washerBolt & washer
-
533A3-62396-1 New partNew part
-
54910103-5612 BoltBolt
-
553R0-61301-1 Upper Mount RobberUpper Mount Robber
-
563R0-61307-0 Bolt,Mount RubberBolt,Mount Rubber
-
57930103-1000 NutNut
-
583R0-61333-0 Upper Damper Rubber AUpper Damper Rubber A
-
593R0-61337-1 Upper Damper Rubber BUpper Damper Rubber B
-
603R0-61323-0 Rock Plate,Mount RubberRock Plate,Mount Rubber
-
61345-61322-2 Washer Rubber Mount BWasher Rubber Mount B
-
623R0-61335-0 Upper Rock PlateUpper Rock Plate
-
633R0-61312-1 Retainer,Mount RubberRetainer,Mount Rubber
-
649101E3-0620 BoltBolt
-
910103-0620 BoltBolt
-
65349Q62993-2 Tilt StopperTilt Stopper
-
349Q62993-1 Tilt StopperTilt Stopper
-
66951403-0640 Spring WasherSpring Washer
-
67346-62437-0 BushingBushing
-
683AC-62439-0 Setting plate tilt stopperSetting plate tilt stopper
-
693AC-63201-0 BoltBolt
-
703C8-62421-1 Spring Friction PlateSpring Friction Plate
-
71346-62438-0 Set PieceSet Piece
-
72346-66322-0 Reverse LockReverse Lock
-
73349-66313-0 Arm,Reverse LockArm,Reverse Lock
-
74336-66319-1 Shaft Leverse Lock LinkShaft Leverse Lock Link
-
753R0-66308-0 WasherWasher
-
76346-66321-0 Rod,Reverse LockRod,Reverse Lock
-
77951503-0212 Split PinSplit Pin
-
783P0-66311-0 Reverse lock leverReverse lock lever
-
793AL-05212-0 BushingBushing
-
803AL-66333-0 Lock lever gripLock lever grip
-
81346-66334-0 StopperStopper
-
823AL-05254-0 Shoulder boltShoulder bolt
-
83940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
843AA-83719-0 WasherWasher
-
853R0-66308-0 WasherWasher
-
86349-66312-0 Link, Reverse LockLink, Reverse Lock
-
87346-66323-1 Spring,Reverse Lock LeverSpring,Reverse Lock Lever
-
883R0-66332-0 Spring (L) Reverse Lock
FOR TRANSOM LSpring (L) Reverse Lock
FOR TRANSOM L -
88346-66331-0 Spring (S) Reverse Lock
FOR TRANSOM SSpring (S) Reverse Lock
FOR TRANSOM S -
893R3Q62001-0 Steering bracket (amb)
FOR MF/EFSteering bracket (amb)
FOR MF/EF -
903R3-62094-2 Bolt
FOR MF/EFBolt
FOR MF/EF -
919401E3-1000 Washer
FOR MF/EFWasher
FOR MF/EF -
923R0-63628-0 Clamp,throttle Cable
FOR MF/EFClamp,throttle Cable
FOR MF/EF
