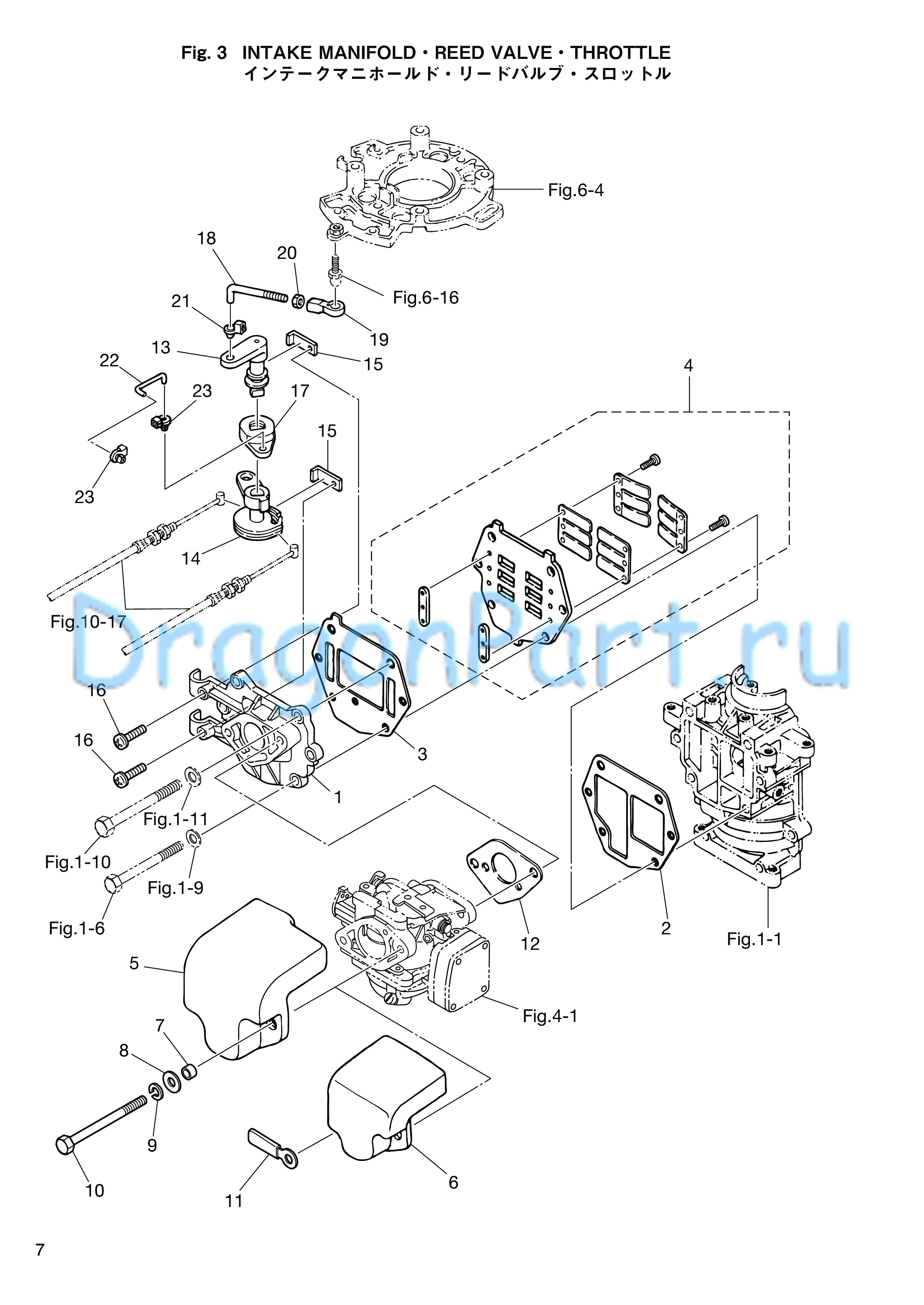

INTAKE MAINFOLD REED VALVE THROTTLE для Tohatsu M9.8B - 2011 года выпуска`
-
№АртикулНазвание
-
13B2B02010-0 Intake Manifold Ass'yIntake Manifold Ass'y
-
23B2-02104-1 Intake Manifold GasketIntake Manifold Gasket
-
33B2-02105-1 Intake Manifold GasketIntake Manifold Gasket
-
43B2-02100-0 Reed Valve Ass'yReed Valve Ass'y
-
53B2-02411-0 Intake Silencer
for MF/EFIntake Silencer
for MF/EF -
63B2-02412-0 Intake Silencer
for EPIntake Silencer
for EP -
73B2-02416-0 SpacerSpacer
-
83C8-66308-0 Washer 6-16-1.5Washer 6-16-1.5
-
9941303-0600 Spring WasherSpring Washer
-
109161F1-0685 BoltBolt
-
11309-06972-0 Clamp 6.5-47.5P
for EPClamp 6.5-47.5P
for EP -
12369-02011-0 Carburetor GasketCarburetor Gasket
-
133B2-63711-0 Advancer ArmAdvancer Arm
-
143B2-63611-0 Throttle DrumThrottle Drum
-
153B2-63506-0 HolderHolder
-
16921521-6520 ScrewScrew
-
173B2-63751-0 Throttle ArmThrottle Arm
-
183B2-63715-2 Rod 5-45Rod 5-45
-
193B7-05243-0 Ball Joint ConnectorBall Joint Connector
-
20930103-0500 NutNut
-
21345-05224-0 Rod Snap 5-2.5Rod Snap 5-2.5
-
223B2-63716-1 Throttle RodThrottle Rod
-
23346-67196-1 Rod Snap ?3-BRod Snap ?3-B
