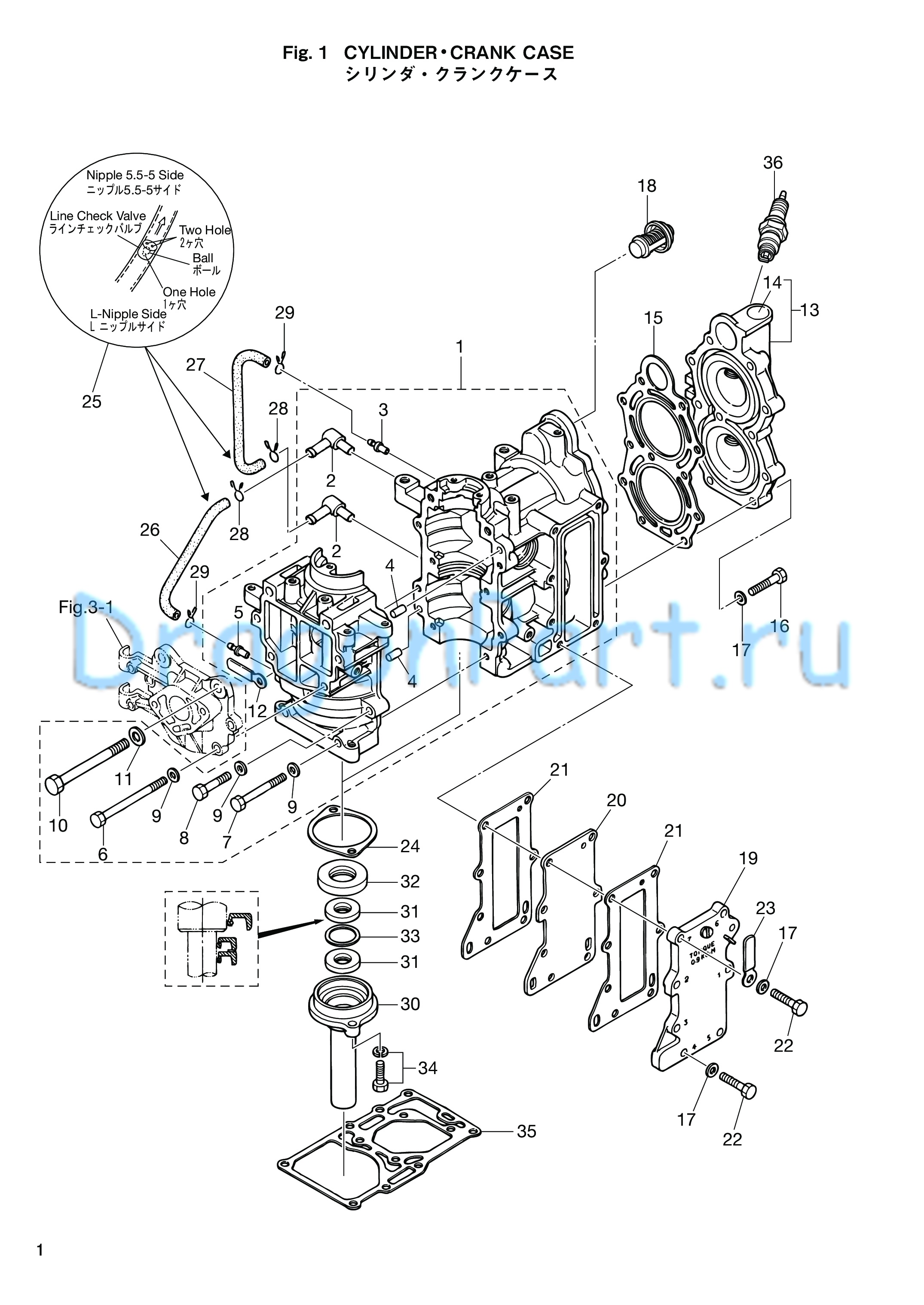

CYLINDER CRANK CASE для Tohatsu M6B - 2011 года выпуска
-
№АртикулНазвание
-
13B2B01100-2 Cyl Block & Crankcase Ass'y
for M8B, M6BCyl Block & Crankcase Ass'y
for M8B, M6B -
2393-01137-0 * Nipple* Nipple
-
3393-01131-0 * Nipple 5.5-5* Nipple 5.5-5
-
4345-01111-0 * Dowel Pin 6-12* Dowel Pin 6-12
-
5393-01131-0 * Nipple 5.5-5* Nipple 5.5-5
-
6916129-0675 * Bolt* Bolt
-
7916129-0650 * Bolt* Bolt
-
8916129-0630 * Bolt* Bolt
-
9940121-0600 * Washer* Washer
-
10910124-0880 * Bolt* Bolt
-
11940121-0800 * Washer* Washer
-
12309-06972-0 * Clamp 6.5-47.5P* Clamp 6.5-47.5P
-
133B2B01001-1 Cylinder Head Ass'y
for M8B, M6BCylinder Head Ass'y
for M8B, M6B -
14350-01093-0 * Welch Plug* Welch Plug
-
153B2-01005-1 Cylinder Head GasketCylinder Head Gasket
-
169161F9-0630 BoltBolt
-
17940121-0600 WasherWasher
-
18350-01030-1 Thermostat
Mark 52C PRVThermostat
Mark 52C PRV -
193B2B02300-0 Exhaust Cover Ass'yExhaust Cover Ass'y
-
203B2B02302-0 Exhaust Cover (Inner)
for M8B, M6BExhaust Cover (Inner)
for M8B, M6B -
213B2-02305-2 Exhaust Cover Gasket
for M8B,M6BExhaust Cover Gasket
for M8B,M6B -
229101F4-0625 BoltBolt
-
23309-06972-0 Clamp 6.5-47.5PClamp 6.5-47.5P
-
243B2-01214-1 Crankcase Head GasketCrankcase Head Gasket
-
25393-01160-0 Check ValveCheck Valve
-
2698AL-40-120 Hose
98AL-401000Hose
98AL-401000 -
2798AL-40-230 Hose
98AL-401000Hose
98AL-401000 -
283T5-01133-0 Clip ?8Clip ?8
-
29338-01133-0 ClipClip
-
303B2-01210-0 Crankcase HeadCrankcase Head
-
313B2-01215-0 Oil Seal 12-28-5Oil Seal 12-28-5
-
323B2-00122-1 Oil Seal 20-40-7Oil Seal 20-40-7
-
333B2-01217-0 Spacer 22-27.5-1Spacer 22-27.5-1
-
34910103-6620 BoltBolt
-
353B2-01303-2 Engine Basement GasketEngine Basement Gasket
-
369701-1-1010 Spark Plug (BP7HS10)
for DO STDSpark Plug (BP7HS10)
for DO STD -
369701-1-1014 Spark Plug (BPR7HS10)
for EX STD, DO OPTSpark Plug (BPR7HS10)
for EX STD, DO OPT
