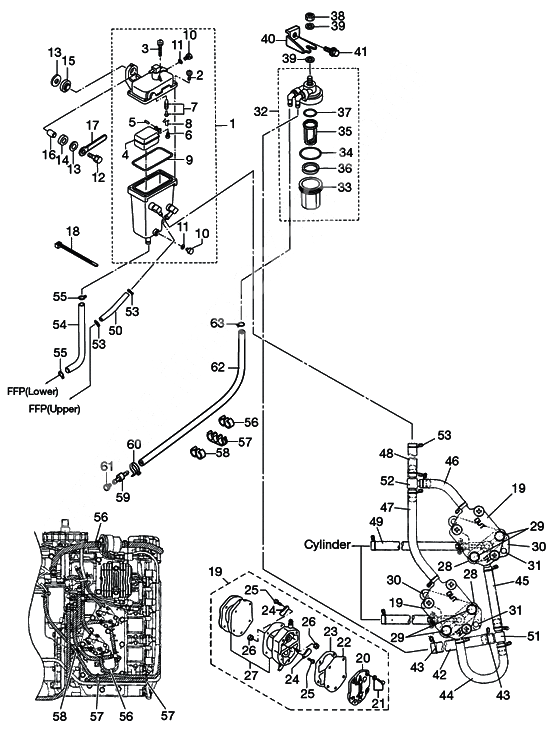

Vapor separator & fuel line для Tohatsu MD115A2 - 2010 года выпуска`
-
№АртикулНазвание
-
13T5-10150-1 Vapor separator assyVapor separator assy
-
2922531-6414 Stud BoltStud Bolt
-
3921503-6430 Stud BoltStud Bolt
-
43T5-03230-0 Float, Vapor SeparaterFloat, Vapor Separater
-
53F3-03232-0 Arm Pin FloatArm Pin Float
-
6921503-0408 Stud BoltStud Bolt
-
73R3-03239-0 Floato Valve Assy
WITH VALVE PINFloato Valve Assy
WITH VALVE PIN -
8344-03244-0 ClipClip
-
93T5-03235-0 O-RingO-Ring
-
10345-03292-0 Drain ScrewDrain Screw
-
11336-03293-0 O-RingO-Ring
-
12910103-6630 BoltBolt
-
13346-67115-0 WasherWasher
-
14346-67113-0 Mount RubberMount Rubber
-
153B7-06920-0 Mount Rubber, 8.5-14-2.5Mount Rubber, 8.5-14-2.5
-
16346-67114-1 SpacerSpacer
-
346-67114-0 SpacerSpacer
-
17309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
183T5-84398-0 Band Lead Wire 104Band Lead Wire 104
-
19356-04000-1 New partNew part
-
20334-04004-0 Fuel CoverFuel Cover
-
219225F2-6528 ScrewScrew
-
922512-6528 ScrewScrew
-
22334-04005-0 New partNew part
-
23334-04007-0 Gasket B DiaphragmGasket B Diaphragm
-
24356-04044-0 Check ValveCheck Valve
-
25921722-0306 Stud BoltStud Bolt
-
26930222-0300 NutNut
-
27356-04030-0 New partNew part
-
28346-04901-1 GasketGasket
-
346-04901-2 GasketGasket
-
29910103-6640 BoltBolt
-
303T1-04100-0 Bracket fuel pumpBracket fuel pump
-
31910103-5620 BoltBolt
-
323T1-02230-0 Fuel filter assy.Fuel filter assy.
-
333B7-02237-0 CupCup
-
343B7-02235-0 O-Ring AO-Ring A
-
353B7-02234-0 FilterFilter
-
363T5-02229-0 Float, Fuel FilterFloat, Fuel Filter
-
373B7-02236-0 O???? bO???? b
-
38930103-0800 NutNut
-
39940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
403T1-02239-0 Filter plateFilter plate
-
41910103-6614 BoltBolt
-
4298AB-7-0270 Fuel pipe 7mm/5/16in (1 ea.=1 meter)
FUEL FILTER - T-NIPPLE / 98AB-701000Fuel pipe 7mm/5/16in (1 ea.=1 meter)
FUEL FILTER - T-NIPPLE / 98AB-701000 -
98AB-701000 Fuel pipe 7mm/5/16in (1 ea.=1 meter)Fuel pipe 7mm/5/16in (1 ea.=1 meter)
-
433C7-02215-0 ClipClip
-
4498AB-5-0140 Fuel pipe 5mm (1 ea.=1 meter)
T-NIPPLE - FUEL PUMP / 98AB-501000Fuel pipe 5mm (1 ea.=1 meter)
T-NIPPLE - FUEL PUMP / 98AB-501000 -
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
4598AB-5-0105 Fuel pipe 5mm (1 ea.=1 meter)
T-NIPPLE - FUEL PUMP / 98AB-501000Fuel pipe 5mm (1 ea.=1 meter)
T-NIPPLE - FUEL PUMP / 98AB-501000 -
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
4698AB-5-0070 Fuel pipe 5mm (1 ea.=1 meter)
FUEL PUMP - T-NIPPLE / 98AB-501000Fuel pipe 5mm (1 ea.=1 meter)
FUEL PUMP - T-NIPPLE / 98AB-501000 -
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
4798AB-5-0105 Fuel pipe 5mm (1 ea.=1 meter)
FUEL PUMP - T-NIPPLE / 98AB-501000Fuel pipe 5mm (1 ea.=1 meter)
FUEL PUMP - T-NIPPLE / 98AB-501000 -
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
4898AB-5-0105 Fuel pipe 5mm (1 ea.=1 meter)
T-NIPPLE - V. S. T. / 98AB-501000Fuel pipe 5mm (1 ea.=1 meter)
T-NIPPLE - V. S. T. / 98AB-501000 -
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
4998AB-5-0140 Fuel pipe 5mm (1 ea.=1 meter)
FUEL PUMP - CYLINDER (PULSE) / 98AB-501000Fuel pipe 5mm (1 ea.=1 meter)
FUEL PUMP - CYLINDER (PULSE) / 98AB-501000 -
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
5098AB-5-0090 Fuel pipe 5mm (1 ea.=1 meter)
FFP CASE (UPPER) - V. S. T. / 98AB-501000Fuel pipe 5mm (1 ea.=1 meter)
FFP CASE (UPPER) - V. S. T. / 98AB-501000 -
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
51394-70013-0 Pipu Joint T-type
V. S. T . - FUEL PUMPPipu Joint T-type
V. S. T . - FUEL PUMP -
523C7-02092-0 Соединение трубки
FUEL FILTER - FUEL PUMPСоединение трубки
FUEL FILTER - FUEL PUMP -
53338-02215-0 ClipClip
-
5498AB-7-0160 Fuel pipe 7mm/5/16in (1 ea.=1 meter)
V. S. T. - FFP CASE / 98AB-701000Fuel pipe 7mm/5/16in (1 ea.=1 meter)
V. S. T. - FFP CASE / 98AB-701000 -
98AB-701000 Fuel pipe 7mm/5/16in (1 ea.=1 meter)Fuel pipe 7mm/5/16in (1 ea.=1 meter)
-
553C7-02215-0 ClipClip
-
563T1-06915-0 ClampClamp
-
573U1-06915-0 ClampClamp
-
583T1-06917-0 Clamp (not available)Clamp (not available)
-
593T1-60018-0 Fuel hose nippleFuel hose nipple
-
603T5-84398-0 Band Lead Wire 104Band Lead Wire 104
-
613T1-03813-0 Cap fuel hose nippleCap fuel hose nipple
-
6298AB70120-0 Fuel pipe 7mm/5/16in (1 ea.=1 meter)
FUEL HOSE NIPPLE - FUEL FILTER / 98AB-701000×2Fuel pipe 7mm/5/16in (1 ea.=1 meter)
FUEL HOSE NIPPLE - FUEL FILTER / 98AB-701000×2 -
98AB-701000 Fuel pipe 7mm/5/16in (1 ea.=1 meter)Fuel pipe 7mm/5/16in (1 ea.=1 meter)
-
633C7-02215-0 ClipClip
