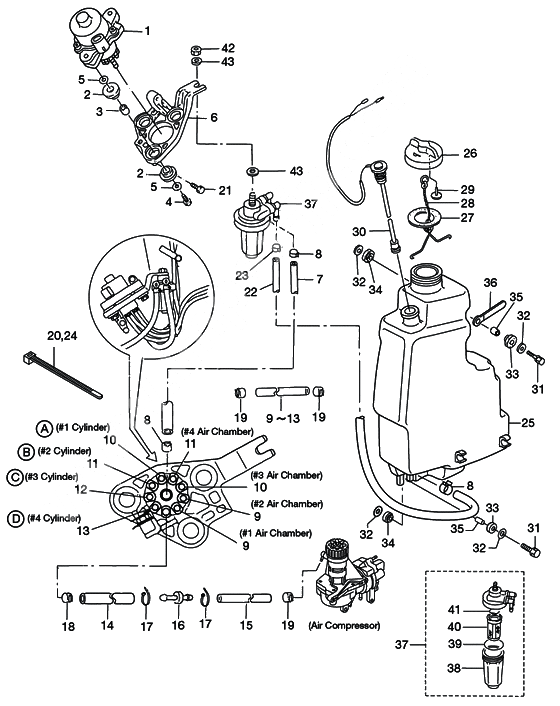

Oil pump для Tohatsu MD115A2 - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    3T1-09010-0 Electric oil pump
    Electric oil pump
  • 2
    345-67113-0 Mount Rubber
    Mount Rubber
  • 3
    3C7-67114-1 Spacer 8.4-12-17
    Spacer 8.4-12-17
  • 3C7-67114-0 Spacer 8.4-12-17
    Spacer 8.4-12-17
  • 4
    910103-0835 Bolt
    Bolt
  • 5
    3B7-63730-0 Washer
    Washer
  • 6
    3T7-09072-0 Bracket, Oil Pump
    Bracket, Oil Pump
  • 7
    99AA-6-0200 Oil pipe (1 ea.=1.5 meter/59.05 inches)
    OIL FILTER - OIL PUMP / 99AA-6-1000
    Oil pipe (1 ea.=1.5 meter/59.05 inches)
    OIL FILTER - OIL PUMP / 99AA-6-1000
  • 99AA-6-1000 Oil pipe (1 ea.=1.5 meter/59.05 inches)
    Oil pipe (1 ea.=1.5 meter/59.05 inches)
  • 8
    3AB-35143-0 Clip @ 9.5
    Clip @ 9.5
  • 9
    99AA-2-0680 Vinyl pipe (1 ea.=1 meter)
    OIL PUMP - #1& #2 AIR CHAMBER / 99AA-2-1000
    Vinyl pipe (1 ea.=1 meter)
    OIL PUMP - #1& #2 AIR CHAMBER / 99AA-2-1000
  • 99AA-2-1000 Vinyl pipe (1 ea.=1 meter)
    Vinyl pipe (1 ea.=1 meter)
  • 10
    99AA-2-0450 Vinyl pipe (1 ea.=1 meter)
    OIL PUMP - #3 AIR CHAMBER & #1 CYLINDER / 99AA-2-1000
    Vinyl pipe (1 ea.=1 meter)
    OIL PUMP - #3 AIR CHAMBER & #1 CYLINDER / 99AA-2-1000
  • 99AA-2-1000 Vinyl pipe (1 ea.=1 meter)
    Vinyl pipe (1 ea.=1 meter)
  • 11
    99AA-2-0360 Vinyl pipe (1 ea.=1 meter)
    OIL PUMP - #4 AIR CHAMBER & #2 CYLINDER / 99AA-2-1000
    Vinyl pipe (1 ea.=1 meter)
    OIL PUMP - #4 AIR CHAMBER & #2 CYLINDER / 99AA-2-1000
  • 99AA-2-1000 Vinyl pipe (1 ea.=1 meter)
    Vinyl pipe (1 ea.=1 meter)
  • 12
    99AA-2-0270 Vinyl pipe (1 ea.=1 meter)
    OIL PUMP - #3 CYLINDER / 99AA-2-1000
    Vinyl pipe (1 ea.=1 meter)
    OIL PUMP - #3 CYLINDER / 99AA-2-1000
  • 99AA-2-1000 Vinyl pipe (1 ea.=1 meter)
    Vinyl pipe (1 ea.=1 meter)
  • 13
    99AA-2-0180 Vinyl pipe (1 ea.=1 meter)
    OIL PUMP - #4 CYLINDER / 99AA-2-1000
    Vinyl pipe (1 ea.=1 meter)
    OIL PUMP - #4 CYLINDER / 99AA-2-1000
  • 99AA-2-1000 Vinyl pipe (1 ea.=1 meter)
    Vinyl pipe (1 ea.=1 meter)
  • 14
    99AA-4-0040 Vinyl pipe (1 ea.=1 meter)
    OIL PUMP - NIPPLE JOINT / 99AA-4-1000
    Vinyl pipe (1 ea.=1 meter)
    OIL PUMP - NIPPLE JOINT / 99AA-4-1000
  • 99AA-4-1000 Vinyl pipe (1 ea.=1 meter)
    Vinyl pipe (1 ea.=1 meter)
  • 15
    99AA-2-0510 Vinyl pipe (1 ea.=1 meter)
    NIPPLE JOINT - AIR COMPRESSOR / 99AA-2-1000
    Vinyl pipe (1 ea.=1 meter)
    NIPPLE JOINT - AIR COMPRESSOR / 99AA-2-1000
  • 99AA-2-1000 Vinyl pipe (1 ea.=1 meter)
    Vinyl pipe (1 ea.=1 meter)
  • 16
    3T7-09076-0 Joint, Nipple
    Joint, Nipple
  • 17
    3T5-84398-0 Band Lead Wire 104
    Band Lead Wire 104
  • 18
    151-35002-0 Clip
    Clip
  • 19
    3B7-09052-0 Clip 6.8
    Clip 6.8
  • 369-70098-2 Clip 6.8
    Clip 6.8
  • 20
    3T5-84398-0 Band Lead Wire 104
    Band Lead Wire 104
  • 21
    910103-7630 Bolt
    Bolt
  • 22
    99AA-6-1150 Oil pipe (1 ea.=1.5 meter/59.05 inches)
    OIL TANK - OIL FILTER / 99AA-6-1000
    Oil pipe (1 ea.=1.5 meter/59.05 inches)
    OIL TANK - OIL FILTER / 99AA-6-1000
  • 99AA-6-1000 Oil pipe (1 ea.=1.5 meter/59.05 inches)
    Oil pipe (1 ea.=1.5 meter/59.05 inches)
  • 23
    3AB-35143-0 Clip @ 9.5
    Clip @ 9.5
  • 24
    369-84398-0 Band Lead Wire,158
    Band Lead Wire,158
  • 25
    3T1-71010-0 Oil Tank
    Oil Tank
  • 26
    3C8-71015-0 Cap Oil Tank
    Cap Oil Tank
  • 27
    3C8-71016-0 Gasket 36-52-2
    Gasket 36-52-2
  • 28
    3C8-71017-0 Hook Tank Cap
    Hook Tank Cap
  • 29
    3C8-71018-0 Check Valve Oil Tank
    Check Valve Oil Tank
  • 30
    3T9-71020-0 Oir Level Sensor
    Oir Level Sensor
  • 31
    910103-6630 Bolt
    Bolt
  • 32
    346-67115-0 Washer
    Washer
  • 33
    346-67113-0 Mount Rubber
    Mount Rubber
  • 34
    3B7-06920-0 Mount Rubber, 8.5-14-2.5
    Mount Rubber, 8.5-14-2.5
  • 35
    346-67114-1 Spacer
    Spacer
  • 346-67114-0 Spacer
    Spacer
  • 36
    3T4-06972-1 Clamp
    Clamp
  • 3T4-06972-0 Clamp
    Clamp
  • 37
    3C7-71030-0 Filter Ass'y
    Filter Ass'y
  • 38
    3B7-02237-0 Cup
    Cup
  • 39
    3B7-02235-0 O-Ring A
    O-Ring A
  • 40
    3C7-71033-0 Filter
    Filter
  • 41
    3B7-02236-0 O???? b
    O???? b
  • 42
    930103-0800 Nut
    Nut
  • 43
    940103-0800 Washer -> 940113-0800
    Washer -> 940113-0800
