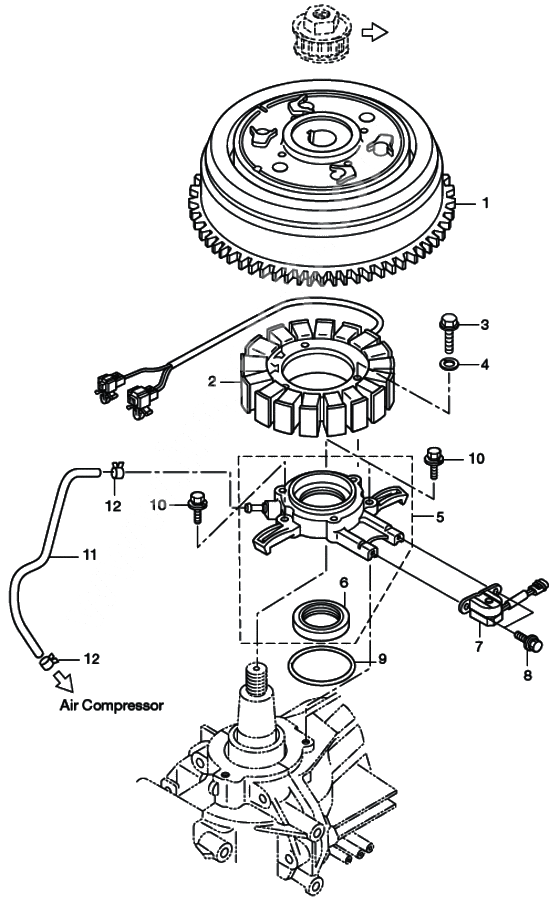

Magneto для Tohatsu MD115A2 - 2010 года выпуска`
-
№АртикулНазвание
-
13T1-06191-0 Flywheel cupFlywheel cup
-
23T1-06123-0 AlternatorAlternator
-
3910103-5635 Bolt & washerBolt & washer
-
9101E3-5635 Bolt & washerBolt & washer
-
4941303-0600 New partNew part
-
53T1-06007-0 Coil bracket assy (with oil seal)
WITH OIL SEALCoil bracket assy (with oil seal)
WITH OIL SEAL -
63T1-00121-0 Oil seal 35-58-9Oil seal 35-58-9
-
73T1-06145-0 Pick-up coil-(cps)
CRANK POSITION SENSORPick-up coil-(cps)
CRANK POSITION SENSOR -
8910103-6512 BoltBolt
-
93C7-01403-0 O-RingO-Ring
-
10910103-5620 BoltBolt
-
1199AA-2-0360 Vinyl pipe (1 ea.=1 meter)
COMPRESSOR - COIL BRACKET / 99AA-2-1000Vinyl pipe (1 ea.=1 meter)
COMPRESSOR - COIL BRACKET / 99AA-2-1000 -
99AA-2-1000 Vinyl pipe (1 ea.=1 meter)Vinyl pipe (1 ea.=1 meter)
-
123B7-09052-0 Clip 6.8Clip 6.8
-
369-70098-2 Clip 6.8Clip 6.8
