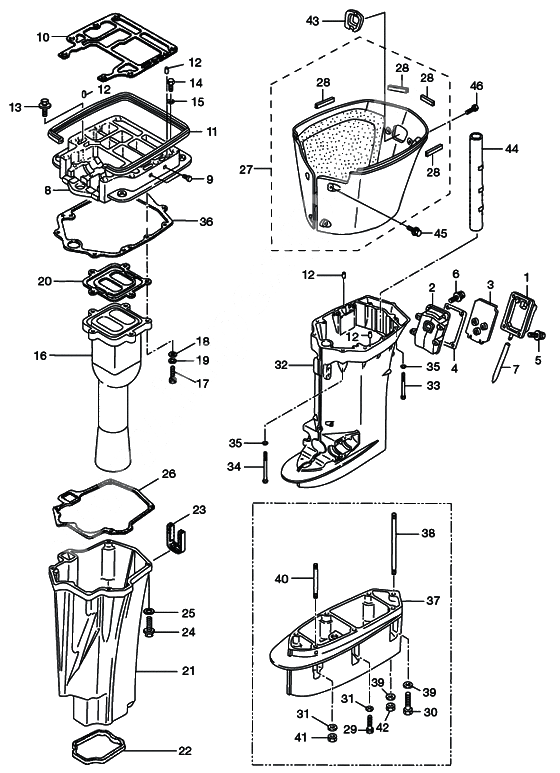

Drive shaft housing для Tohatsu MD115A2 - 2010 года выпуска`
-
№АртикулНазвание
-
13T1Q61245-0 Cover idle exhaust passage (amb)Cover idle exhaust passage (amb)
-
23T1Q61241-0 Idle exhaust passage (amb)Idle exhaust passage (amb)
-
33T1-61242-0 Separation idle exhaust passageSeparation idle exhaust passage
-
43T1-61244-0 Gasket passage coverGasket passage cover
-
59101E3-5620 Bolt & washerBolt & washer
-
69101E3-5635 Bolt & washerBolt & washer
-
73T1-61097-0 Water outlet hoseWater outlet hose
-
83T1Q01300-0 Engine baseEngine base
-
93H6-07257-0 Exhaust PlugExhaust Plug
-
103C7-01303-5 Gasket engine baseGasket engine base
-
113B7-67116-0 Seal Rubber, Lower CoverSeal Rubber, Lower Cover
-
12345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
13910103-5635 Bolt & washerBolt & washer
-
9101E3-5635 Bolt & washerBolt & washer
-
143C7-01312-0 Bolt, 8-50Bolt, 8-50
-
15940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
163T1-02311-0 Exhaust PipeExhaust Pipe
-
179101F4-0835 BoltBolt
-
916114-0835 BoltBolt
-
18940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
19941303-0800 Spring WasherSpring Washer
-
203C7-02312-2 Gasket exhaust pipeGasket exhaust pipe
-
213D8-61180-0 Exhaust HousingExhaust Housing
-
223B7-61182-1 Grommet exhaust housingGrommet exhaust housing
-
233B7-61207-0 Grommet, Idle PortGrommet, Idle Port
-
24910103-0830 New partNew part
-
25940203-0800 WasherWasher
-
263B7-61181-2 GasketGasket
-
273T1Q61225-1 Apron assy (amb)Apron assy (amb)
-
3T1Q61225-0 Apron assy (amb)Apron assy (amb)
-
283T1-61213-0 Apron sealApron seal
-
293T1-60001-0 Bolt 8-35
FOR TRANSOM ULBolt 8-35
FOR TRANSOM UL -
3T1-60001-1 Bolt 8-35Bolt 8-35
-
303B7-60001-4 Bolt
FOR TRANSOM ULBolt
FOR TRANSOM UL -
3B7-60001-5 BoltBolt
-
319401E3-0800 Washer
FOR TRANSOM ULWasher
FOR TRANSOM UL -
940103-0800 WasherWasher
-
323T1Q61192-0 Drive shaft housing (l) d115a2Drive shaft housing (l) d115a2
-
333C7-61017-2 Bolt,10-107Bolt,10-107
-
343C7-61018-2 Bolt 10-120Bolt 10-120
-
3C7-61018-1 Bolt 10-120Bolt 10-120
-
359401E3-1000 WasherWasher
-
363C7-61012-2 Gasket drive shaft housingGasket drive shaft housing
-
373B7Q61110-0 Extension housing ul (amb)
FOR TRANSOM ULExtension housing ul (amb)
FOR TRANSOM UL -
383B7-61112-1 Stud Bolt
FOR TRANSOM ULStud Bolt
FOR TRANSOM UL -
3B7-61112-0 Stud BoltStud Bolt
-
399402E3-1000 Washer
FOR TRANSOM ULWasher
FOR TRANSOM UL -
409153E3-0825 Stud Bolt
FOR TRANSOM ULStud Bolt
FOR TRANSOM UL -
41930103-0800 Nut
FOR TRANSOM ULNut
FOR TRANSOM UL -
423B7-61114-0 Nut
FOR TRANSOM ULNut
FOR TRANSOM UL -
433T1-61212-0 Apron grommetApron grommet
-
443B7-61186-0 Reverse Gas PassageReverse Gas Passage
-
459101E3-5612 Bolt & washerBolt & washer
-
469101E3-5616 Bolt & washerBolt & washer
