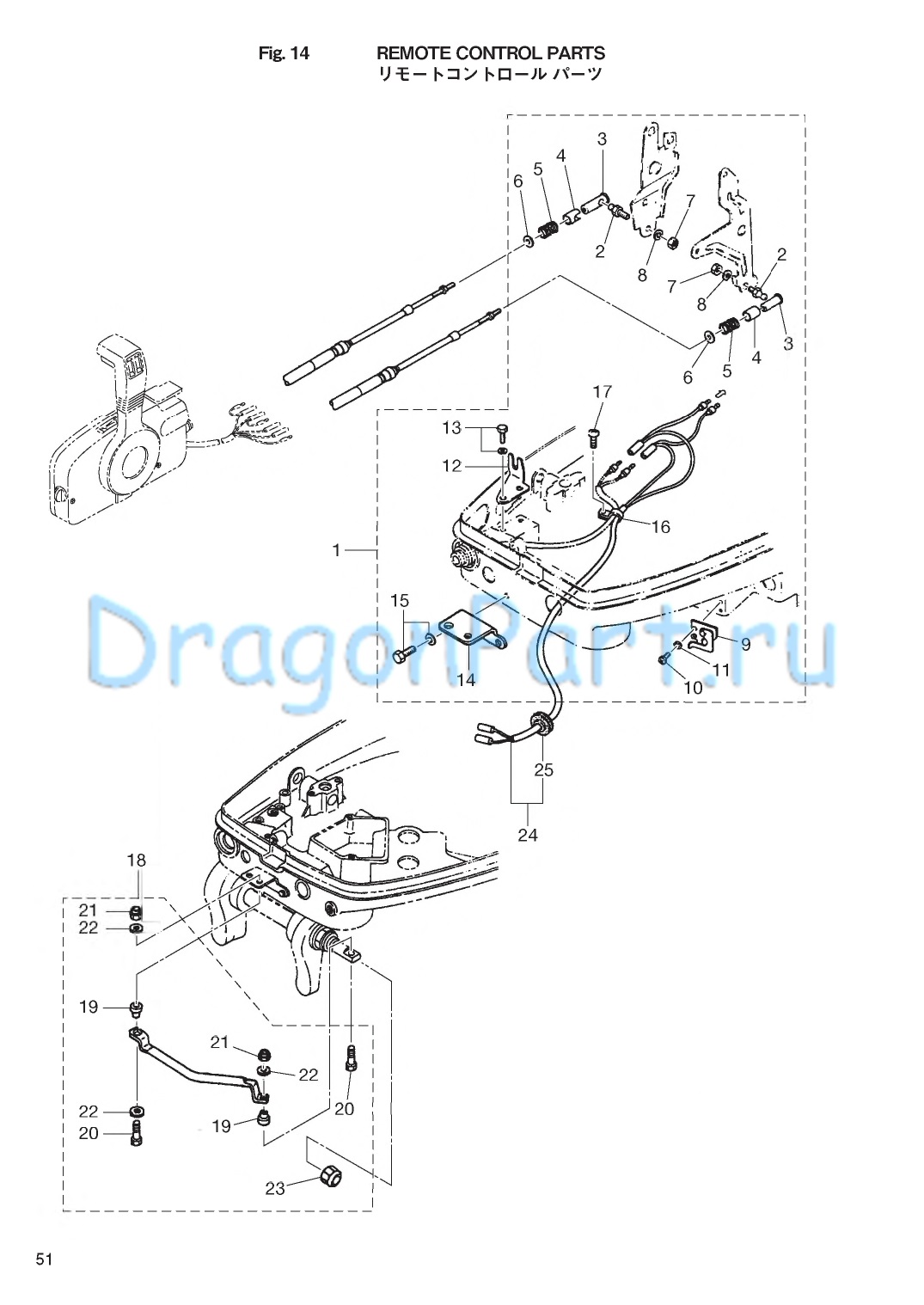

REMOTE CONTROL PARTS для Tohatsu M40C - 2010 года выпуска`
-
№АртикулНазвание
-
1361-83880-3 REMOTE CONTROL FITTING ASSY
for EP TypeREMOTE CONTROL FITTING ASSY
for EP Type -
2345-83721-0 * BALL JOINT* BALL JOINT
-
33A1-83722-0 * BALL JOINT HOLDER* BALL JOINT HOLDER
-
4332-83723-0 * HOLDER CAP* HOLDER CAP
-
5332-83724-0 * SPRING* SPRING
-
6332-83725-0 * WASHER 5.5-14-1.2* WASHER 5.5-14-1.2
-
7930103-0600 * NUT* NUT
-
8941303-0600 * SPRING WASHER* SPRING WASHER
-
9345-83820-0 * CABLE CLIP ASSY* CABLE CLIP ASSY
-
10910403-0518 * BOLT* BOLT
-
11941303-0500 * SPRING WASHER* SPRING WASHER
-
12345-83821-0 * CLUTCH CABLE CLIP BRACKET* CLUTCH CABLE CLIP BRACKET
-
13910103-6616 * BOLT* BOLT
-
14345-84830-0 * STEERING HOOK* STEERING HOOK
-
15910103-6820 * BOLT* BOLT
-
16336-06973-0 * CLAMP 6-9.5L* CLAMP 6-9.5L
-
179215E3-0612 * SCREW* SCREW
-
18361-84905-1 DRAG LINK ASSY
for EP TypeDRAG LINK ASSY
for EP Type -
19361-84914-1 * SPACER* SPACER
-
20353-84917-0 * BOLT 3/8-45* BOLT 3/8-45
-
21353-84918-0 * NYLON NUT 3/8* NYLON NUT 3/8
-
22353-84916-0 * WASHER 9.6-18-2* WASHER 9.6-18-2
-
233F3-84908-0 * SEAL RING* SEAL RING
-
243P0-83857-0 REMOTE CONTROL STOP CORD ASSY L=3900
OPTREMOTE CONTROL STOP CORD ASSY L=3900
OPT -
24361-83857-0 REMOTE CONTROL STOP CORD ASSY L=5900
OPTREMOTE CONTROL STOP CORD ASSY L=5900
OPT -
25345-76023-0 * GROMMET 22-2.5
OPT* GROMMET 22-2.5
OPT
Все узлы модели:
- CYLINDER CRANK CASE
- PISTON CRANK SHAFT
- INTAKE MAINFOLD FUEL PUMP
- CARBURETOR
- RECOIL STARTER
- MAGNETO
- ELECTRIC PARTS
- DRIVE SHAFT HOUSING
- GEAR CASE
- BRACKET
- TILLER HANDLE
- BOTTOM COWL
- SHIFT
- • REMOTE CONTROL PARTS
- TOP COWL
- FUEL TANK
- COMPONENT PARTS OF REMOTE CONTROL (ELECTRIC PARTS)
- COMPONENT PARTS OF REMOTE CONTROL
- OPTIONAL PARTS ACCESSORIES (1)
- OPTIONAL PARTS ACCESSORIES (2)
- ASSEMBLY KIT PARTS
