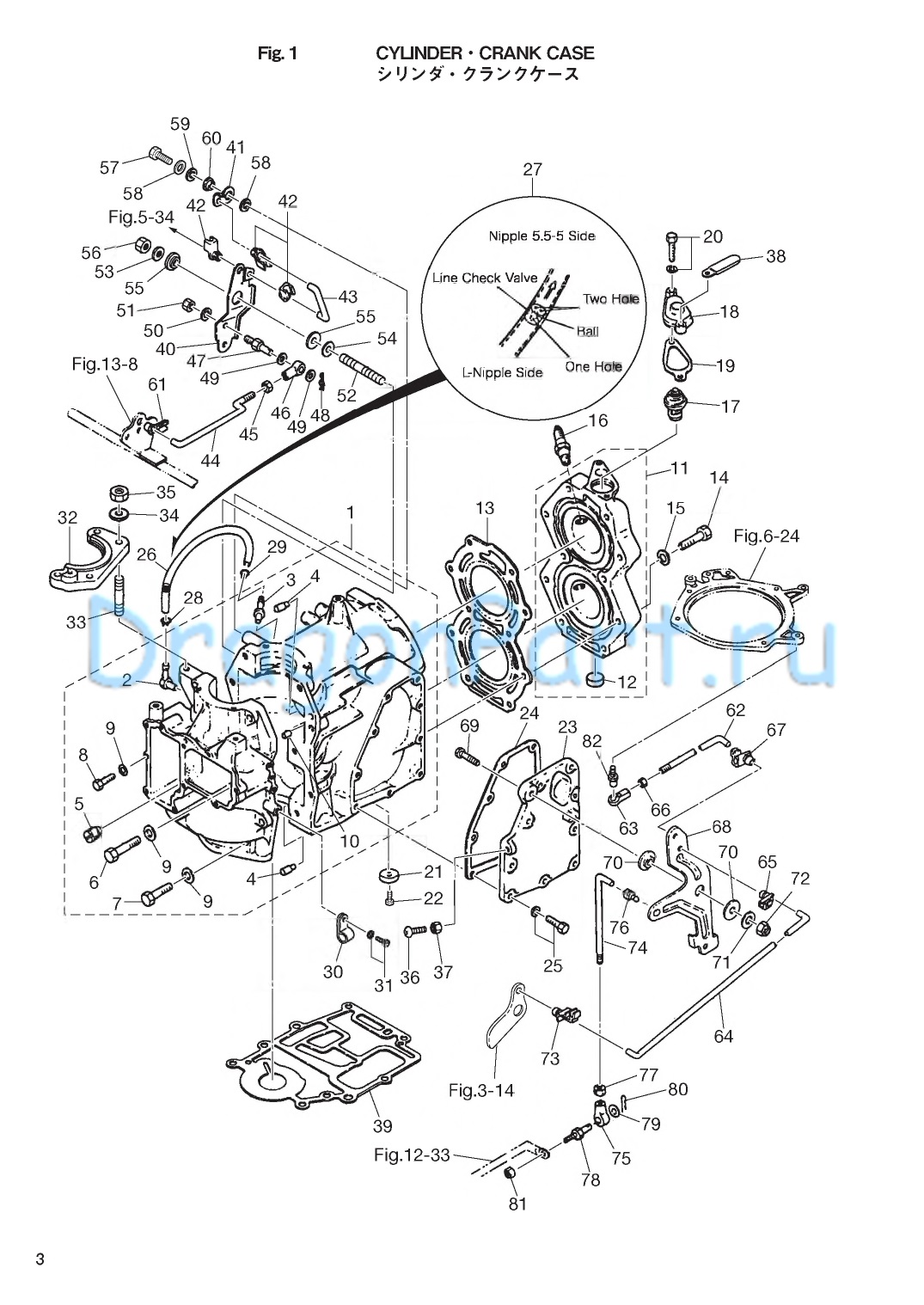

CYLINDER CRANK CASE для Tohatsu M40C - 2010 года выпуска`
-
№АртикулНазвание
-
1361B01100-2 CYL BLOCK & CRANKCASE ASSYCYL BLOCK & CRANKCASE ASSY
-
2393-01137-0 * NIPPLE* NIPPLE
-
3393-01131-0 * NIPPLE 5.5-5* NIPPLE 5.5-5
-
4345-00117-0 * DOWEL PIN
Bearing* DOWEL PIN
Bearing -
5345-01150-1 * CHECK VALVE ASSY* CHECK VALVE ASSY
-
6916129-0850 * BOLT* BOLT
-
7916124-0840 * BOLT* BOLT
-
89161F4-0835 * BOLT* BOLT
-
9940121-0800 * WASHER* WASHER
-
10345-01111-0 * DOWEL PIN 6-12* DOWEL PIN 6-12
-
11361B01001-1 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
12350-01093-0 * WELCH PLUG* WELCH PLUG
-
13345-01005-1 CYLINDER HEAD GASKETCYLINDER HEAD GASKET
-
149161F9-0845 BOLTBOLT
-
15345-01015-0 WASHER 8.5-19.5-3.2WASHER 8.5-19.5-3.2
-
169701-1-1015 SPARK PLUG (BR7HS10)
NGKSPARK PLUG (BR7HS10)
NGK -
17345-01030-0 THERMOSTAT
Mark 52A PRVTHERMOSTAT
Mark 52A PRV -
183H6B01031-0 THERMOSTAT CAPTHERMOSTAT CAP
-
19346-01032-0 THERMOSTAT CAP GASKETTHERMOSTAT CAP GASKET
-
209101F4-5630 BOLTBOLT
-
21338-60218-2 ANODEANODE
-
22910103-0616 BOLTBOLT
-
23345B02301-2 EXHAUST COVER (OUTER)EXHAUST COVER (OUTER)
-
24345-02305-1 EXHAUST COVER GASKETEXHAUST COVER GASKET
-
259101F4-5620 BOLTBOLT
-
2698AL-40-230 HOSE
98AL-401000HOSE
98AL-401000 -
27393-01160-0 CHECK VALVECHECK VALVE
-
283T5-01133-0 CLIP φ8CLIP φ8
-
29338-01133-0 CLIP φ7CLIP φ7
-
30336-06973-0 CLAMP 6-9.5LCLAMP 6-9.5L
-
31910103-6612 BOLTBOLT
-
32345B05101-0 BRACKETBRACKET
-
33915324-0825 STUDSTUD
-
34940121-0800 WASHERWASHER
-
35930121-0800 NUTNUT
-
36921503-0520 SCREWSCREW
-
37930103-0500 NUTNUT
-
38309-06972-0 CLAMP 6.5-47.5PCLAMP 6.5-47.5P
-
39345-01303-1 ENGINE BASEMENT GASKETENGINE BASEMENT GASKET
-
40361-05211-0 STARTER LOCK ARMSTARTER LOCK ARM
-
41345-05213-0 THROTTLE LIMITER ARMTHROTTLE LIMITER ARM
-
42345-05223-1 ROD SNAP 3.5-2ROD SNAP 3.5-2
-
43345-05221-1 THROTTLE LIMITER RODTHROTTLE LIMITER ROD
-
44345-05222-1 STARTER LOCK RODSTARTER LOCK ROD
-
45930103-0500 NUTNUT
-
46346-05234-0 ROD JOINT φ5ROD JOINT φ5
-
47353-83728-1 PINPIN
-
48951603-0800 SNAP PIN d=8SNAP PIN d=8
-
493AA-83719-0 WASHER 8.5-18-1.6WASHER 8.5-18-1.6
-
50941303-0600 SPRING WASHERSPRING WASHER
-
51930103-0600 NUTNUT
-
52915324-0825 STUDSTUD
-
53940103-0800 WASHERWASHER
-
54345-01015-0 WASHER 8.5-19.5-3.2WASHER 8.5-19.5-3.2
-
55345-63713-0 BUSHING 8-14-4BUSHING 8-14-4
-
56930403-0800 NYLON NUT 8-P1.25NYLON NUT 8-P1.25
-
579101F4-0620 BOLTBOLT
-
58940103-0600 WASHERWASHER
-
59941403-1000 WAVE WASHER d=10WAVE WASHER d=10
-
60346-63721-0 BUSHING 6.2-16-5BUSHING 6.2-16-5
-
61345-05224-0 ROD SNAP 5-2.5ROD SNAP 5-2.5
-
62348-63715-1 ROD 5-75LROD 5-75L
-
633B7-05243-0 BALL JOINT CONNECTORBALL JOINT CONNECTOR
-
64348-63716-1 THROTTLE RODTHROTTLE ROD
-
65345-05223-1 ROD SNAP 3.5-2ROD SNAP 3.5-2
-
66930103-0500 NUTNUT
-
673B7-63733-0 ROD SNAP 5-2.5ROD SNAP 5-2.5
-
68348-63711-1 ADVANCER ARMADVANCER ARM
-
69910121-0840 BOLTBOLT
-
70345-63713-0 BUSHING 8-14-4BUSHING 8-14-4
-
71334-66233-0 WASHER 8.1-16-1.5WASHER 8.1-16-1.5
-
72930403-0800 NYLON NUT 8-P1.25NYLON NUT 8-P1.25
-
73345-05223-1 ROD SNAP 3.5-2ROD SNAP 3.5-2
-
74348-63715-1 ROD 5-75L
for MF/EF TypeROD 5-75L
for MF/EF Type -
75346-05234-0 ROD JOINT φ5
for MF/EF TypeROD JOINT φ5
for MF/EF Type -
763B7-63733-0 ROD SNAP 5-2.5
for MF/EF TypeROD SNAP 5-2.5
for MF/EF Type -
77930103-0500 NUT
for MF/EF TypeNUT
for MF/EF Type -
78361-83728-0 PIN
for MF/EF TypePIN
for MF/EF Type -
793AA-83719-0 WASHER 8.5-18-1.6
for MF/EF TypeWASHER 8.5-18-1.6
for MF/EF Type -
80951603-0800 SNAP PIN d=8
for MF/EF TypeSNAP PIN d=8
for MF/EF Type -
81930103-0600 NUT
for MF/EF TypeNUT
for MF/EF Type -
82346-05228-1 BALL JOINTBALL JOINT
