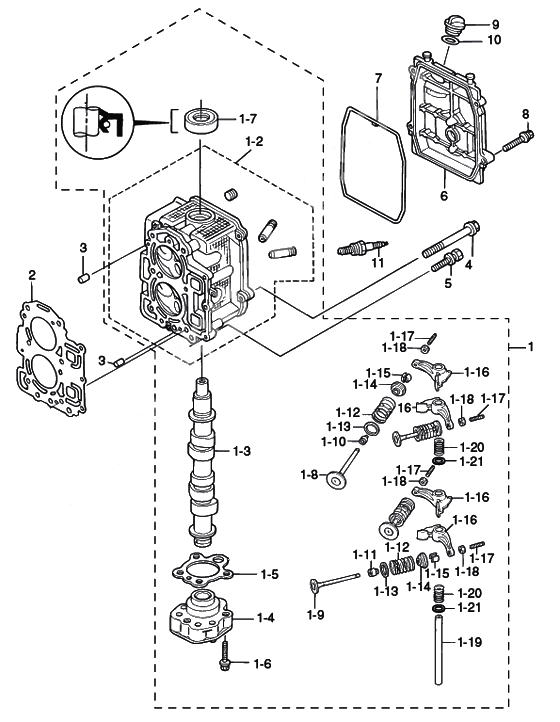

Cylinder head & oil pump для Tohatsu MFS8A3 - 2009 года выпуска`
-
№АртикулНазвание
-
13V1B01000-3 Cylinder head assy mfs8/9.8a3
WITH CRANKSHAFT & OIL PUMP & VALVECylinder head assy mfs8/9.8a3
WITH CRANKSHAFT & OIL PUMP & VALVE -
1-103R3-07204-0 Seal, In Valve Stem
BLACKSeal, In Valve Stem
BLACK -
1-113R3-07206-0 Seal, EX Valve Stem
GREENSeal, EX Valve Stem
GREEN -
1-123AA-07203-0 Valbe Spring
L=38.3 / # 002966XD~Valbe Spring
L=38.3 / # 002966XD~ -
1-133V1-07205-0 Seat,Valve SpringSeat,Valve Spring
-
1-143V1-07221-0 RetainerRetainer
-
1-153H6-07223-0 CotterCotter
-
1-163V1-07235-0 Rocker armRocker arm
-
1-173R0-07238-0 Stud BoltStud Bolt
-
1-183H8-07237-0 NutNut
-
1-193Y2-07920-0 Shaft rocker arm
OR 3H8-07226-0Shaft rocker arm
OR 3H8-07226-0 -
1-23V1B01001-0 Cylinder Head Comp.Cylinder Head Comp.
-
1-203AA-07225-0 Rocker Shaft Spring
L=25 / # 002966XD~Rocker Shaft Spring
L=25 / # 002966XD~ -
1-213R3-07227-0 Washer
# 002966XD~Washer
# 002966XD~ -
1-33Y4-07810-0 Camshaft
OR 3V1-07010-0Camshaft
OR 3V1-07010-0 -
1-43V1-07600-0 Oil PumpOil Pump
-
1-53V1-07653-0 Gasket,Oil PumpGasket,Oil Pump
-
1-69101F4-5635 Bolt & washer
OR 910114-5635Bolt & washer
OR 910114-5635 -
9101E3-5635 Bolt & washerBolt & washer
-
1-73H8-07025-0 Oil Seal,18-35-8Oil Seal,18-35-8
-
1-83V1-07201-0 Intake ValveIntake Valve
-
1-93V1-07202-0 Exhaust ValveExhaust Valve
-
23V1-01005-0 Cykinder Head GasketCykinder Head Gasket
-
3345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
43H8-01012-1 Bolt
OR 3H8-01012-0Bolt
OR 3H8-01012-0 -
59101F4-5625 Bolt
OR 910114-5625Bolt
OR 910114-5625 -
910114-5625 BoltBolt
-
63V1B01021-0 Cover, Cylinder HeadCover, Cylinder Head
-
73V1-01024-0 Gasket HeadcoverGasket Headcover
-
89101E3-5625 Bolt & washer
OR 910113-5625Bolt & washer
OR 910113-5625 -
93R0-71015-0 Filler Cap,Engine OilFiller Cap,Engine Oil
-
103R0-07422-0 New partNew part
-
119701-1-1103 Spark plug (dcpr6e)
NGK: DCPR6ESpark plug (dcpr6e)
NGK: DCPR6E
