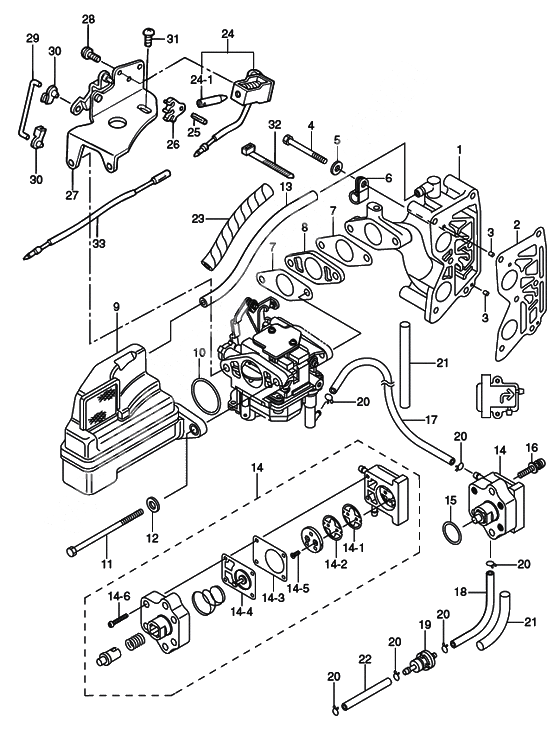

Intake manifold & fuel pump для Tohatsu MFS8A3 - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    3V1-02010-1 Всасывающий коллектор
    # 010322XD~
    Всасывающий коллектор
    # 010322XD~
  • 2
    3V1-02104-0 O-Ring
    O-Ring
  • 3
    951403-0310 New part
    New part
  • 4
    916114-0653 Bolt
    OR 916114-0653
    Bolt
    OR 916114-0653
  • 5
    9401E3-0600 Washer
    OR 940113-0600
    Washer
    OR 940113-0600
  • 940113-0600 Washer
    Washer
  • 6
    345-06915-0 Clamp 6.5-14
    Clamp 6.5-14
  • 7
    3V1-02011-0 Caburetor Gasket
    Caburetor Gasket
  • 8
    3V1-03952-0 Insukator
    Insukator
  • 9
    3V1-02409-0 Air Silencer
    Air Silencer
  • 10
    3V1-02012-0 O-Ring
    O-Ring
  • 11
    9161E3-0695 Bolt
    CARBURETOR / OR 916113-0695
    Bolt
    CARBURETOR / OR 916113-0695
  • 3R0-03215-0 Bolt
    Bolt
  • 12
    9401E3-0600 Washer
    OR 940113-0600
    Washer
    OR 940113-0600
  • 940113-0600 Washer
    Washer
  • 13
    98AB-7-0200 Fuel pipe 7mm/5/16in (1 ea.=1 meter)
    OR 98AB-70-200
    Fuel pipe 7mm/5/16in (1 ea.=1 meter)
    OR 98AB-70-200
  • 98AB-701000 Fuel pipe 7mm/5/16in (1 ea.=1 meter)
    Fuel pipe 7mm/5/16in (1 ea.=1 meter)
  • 14
    3H6-04000-4 Fuel pump 4/5/6/8/9.8 4-str only
    (MARK C # 002966XD~) / MARK D
    Fuel pump 4/5/6/8/9.8 4-str only
    (MARK C # 002966XD~) / MARK D
  • 3H6-04000-7 Fuel pump 4/5/6/8/9.8 4-str only
    Fuel pump 4/5/6/8/9.8 4-str only
  • 14-1
    3H6-04014-1 Check Valve
    BLACK / # 002966XD~
    Check Valve
    BLACK / # 002966XD~
  • 14-2
    3H6-04044-0 Check Valve
    WHITE
    Check Valve
    WHITE
  • 14-3
    3H6-04028-0 O-Ring
    O-Ring
  • 14-4
    3H6-04005-0 Diaphragm
    Diaphragm
  • 14-5
    921603-0308 Stud Bolt
    Stud Bolt
  • 14-6
    922503-6418 Stud Bolt
    Stud Bolt
  • 15
    3H6-07422-0 New part
    New part
  • 16
    9215E3-5625 Screw
    OR 921513-5625
    Screw
    OR 921513-5625
  • 921503-5625 Screw
    Screw
  • 17
    98AB-5-0260 Fuel pipe 5mm (1 ea.=1 meter)
    OR 98AB-50-260
    Fuel pipe 5mm (1 ea.=1 meter)
    OR 98AB-50-260
  • 98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)
    Fuel pipe 5mm (1 ea.=1 meter)
  • 18
    98AB-5-0150 Fuel pipe 5mm (1 ea.=1 meter)
    OR 98AB-50-150
    Fuel pipe 5mm (1 ea.=1 meter)
    OR 98AB-50-150
  • 98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)
    Fuel pipe 5mm (1 ea.=1 meter)
  • 19
    369-02230-0 Фильтр топливный
    Фильтр топливный
  • 20
    338-02215-0 Clip
    Clip
  • 21
    3V2-06157-0 Protector
    ø 12-120
    Protector
    ø 12-120
  • 22
    98AB-5-0330 Fuel pipe 5mm (1 ea.=1 meter)
    OR 98AB-50-330
    Fuel pipe 5mm (1 ea.=1 meter)
    OR 98AB-50-330
  • 98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)
    Fuel pipe 5mm (1 ea.=1 meter)
  • 23
    3V1-76148-0 Spiral Tube Protector
    ø 10-100 / FOR EP/EPT
    Spiral Tube Protector
    ø 10-100 / FOR EP/EPT
  • 24
    3V1-76050-0 Choke Solenoid
    FOR EP/EPT
    Choke Solenoid
    FOR EP/EPT
  • 24-1
    361-76073-0 Plunger,Choke Solenoid
    FOR EP/EPT
    Plunger,Choke Solenoid
    FOR EP/EPT
  • 25
    951403-0312 Spring Washer
    FOR EP/EPT
    Spring Washer
    FOR EP/EPT
  • 26
    346-76057-0 Hook choke solenoid
    FOR EP/EPT
    Hook choke solenoid
    FOR EP/EPT
  • 27
    3V1-76078-1 Bracket,Choke Solenoido
    FOR EP/EPT
    Bracket,Choke Solenoido
    FOR EP/EPT
  • 28
    921503-6408 Stud Bolt
    FOR EP/EPT
    Stud Bolt
    FOR EP/EPT
  • 29
    3V1-76076-0 Link Rod
    FOR EP/EPT
    Link Rod
    FOR EP/EPT
  • 30
    3V1-67196-0 Rod Snap
    FOR EP/EPT
    Rod Snap
    FOR EP/EPT
  • 31
    9215E3-0510 Screw
    FOR EP/EPT
    Screw
    FOR EP/EPT
  • 921503-0510 Screw
    Screw
  • 32
    3T5-84398-0 Band Lead Wire 104
    FOR EP/EPT
    Band Lead Wire 104
    FOR EP/EPT
  • 33
    3V1-72547-0 Assist Cord(blue)
    (BLUE) / FOR EP
    Assist Cord(blue)
    (BLUE) / FOR EP
