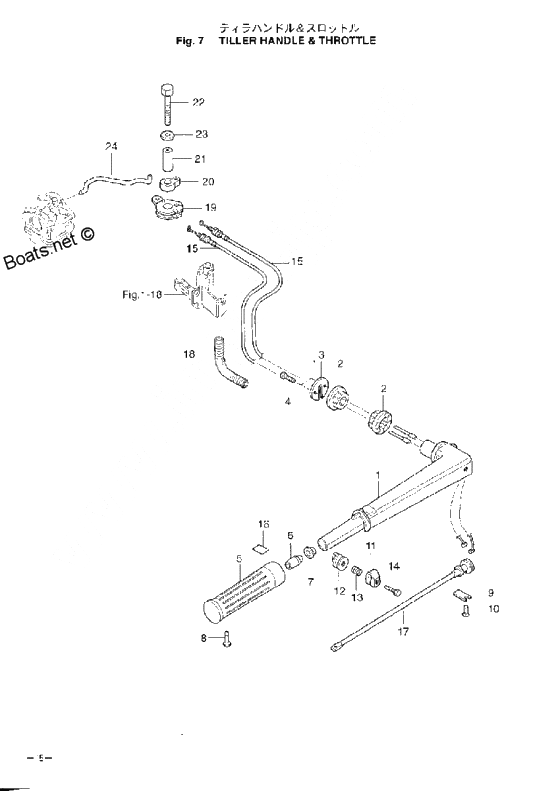

Tiller handle and throttle для Tohatsu MFS2A - 2008 года выпуска
-
№АртикулНазвание
-
13V1Q63011-0 Tiller handle (amb)Tiller handle (amb)
-
3V1Q63011-3 Tiller handle (amb)Tiller handle (amb)
-
2369-63102-0 New partNew part
-
33V1-63107-0 CoverCover
-
53R3-63012-0 GripGrip
-
63H6-63048-0 Rubber, Shrottle ShaftRubber, Shrottle Shaft
-
73H6-63510-0 BushingBushing
-
8920813-0518 ScrewScrew
-
93B2-63063-0 Supporter Throttle ShaftSupporter Throttle Shaft
-
113V1-63035-0 Friction PiceceFriction Picece
-
123V1-63077-0 Adjusting NutAdjusting Nut
-
133V1-63036-0 Spring WasherSpring Washer
-
153V1-63600-0 Throttle WireThrottle Wire
-
163V9-72019-0 Label,ThrottleLabel,Throttle
-
173V1-63041-0 Throttle ShaftThrottle Shaft
-
183H9-70313-0 Protector,fuel PipeProtector,fuel Pipe
-
193H6-63611-0 Throttel DrumThrottel Drum
-
203H6-63612-0 Throttle OpenerThrottle Opener
-
213H6-63618-0 Collar, drumCollar, drum
-
233C8-66308-0 New part
or 3C8-66308-0New part
or 3C8-66308-0 -
243AB-63617-0 Throttle RodThrottle Rod
