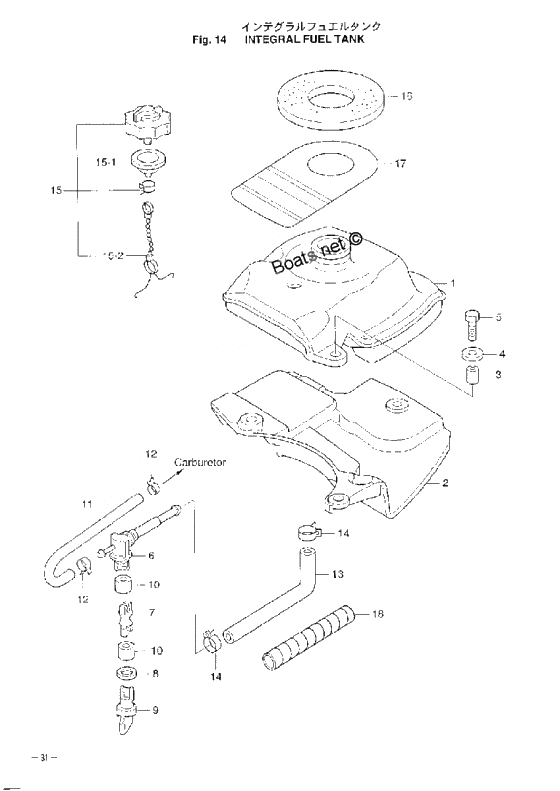

Fuel tank (integral) для Tohatsu MFS2A - 2008 года выпуска`
-
№АртикулНазвание
-
13AB-70310-0 Fuel tank f2.5a/3.5aFuel tank f2.5a/3.5a
-
3GT-70310-1 Fuel tank f2.5a/3.5aFuel tank f2.5a/3.5a
-
23AB-06846-0 Fuel tank coverFuel tank cover
-
3AB-06846-1 Fuel tank coverFuel tank cover
-
33T5-76079-0 Spacer, 6.2-9-10.7Spacer, 6.2-9-10.7
-
43C8-66308-0 New part
or 3C8-66308-0New part
or 3C8-66308-0 -
6369-70311-0 Fuel CockFuel Cock
-
73AB-70061-0 Fuel cock rodFuel cock rod
-
8369-70063-0 Rubber Fuel Cock Rod KnobRubber Fuel Cock Rod Knob
-
9369-70062-0 Knob fuel cock rodKnob fuel cock rod
-
10353-72544-0 Tube,fuel cock rodTube,fuel cock rod
-
113AB-70326-0 Fuel hoseFuel hose
-
12121-35143-0 ClipClip
-
133AB-70325-0 Fuel hoseFuel hose
-
143AB-02215-0 Clip 15Clip 15
-
153R6-70320-0 Fuel tank capFuel tank cap
-
3R6-70320-1 Fuel tank capFuel tank cap
-
15-1309-70021-3 Gasket, Fuel Tank CapGasket, Fuel Tank Cap
-
15-23C8-71017-0 Hook Tank CapHook Tank Cap
-
163AB-70036-0 Seal fuel tankSeal fuel tank
-
3AB-70036-1 Seal fuel tankSeal fuel tank
-
173AB-72183-0 Caution tagCaution tag
-
183V1-76148-0 Spiral Tube ProtectorSpiral Tube Protector
