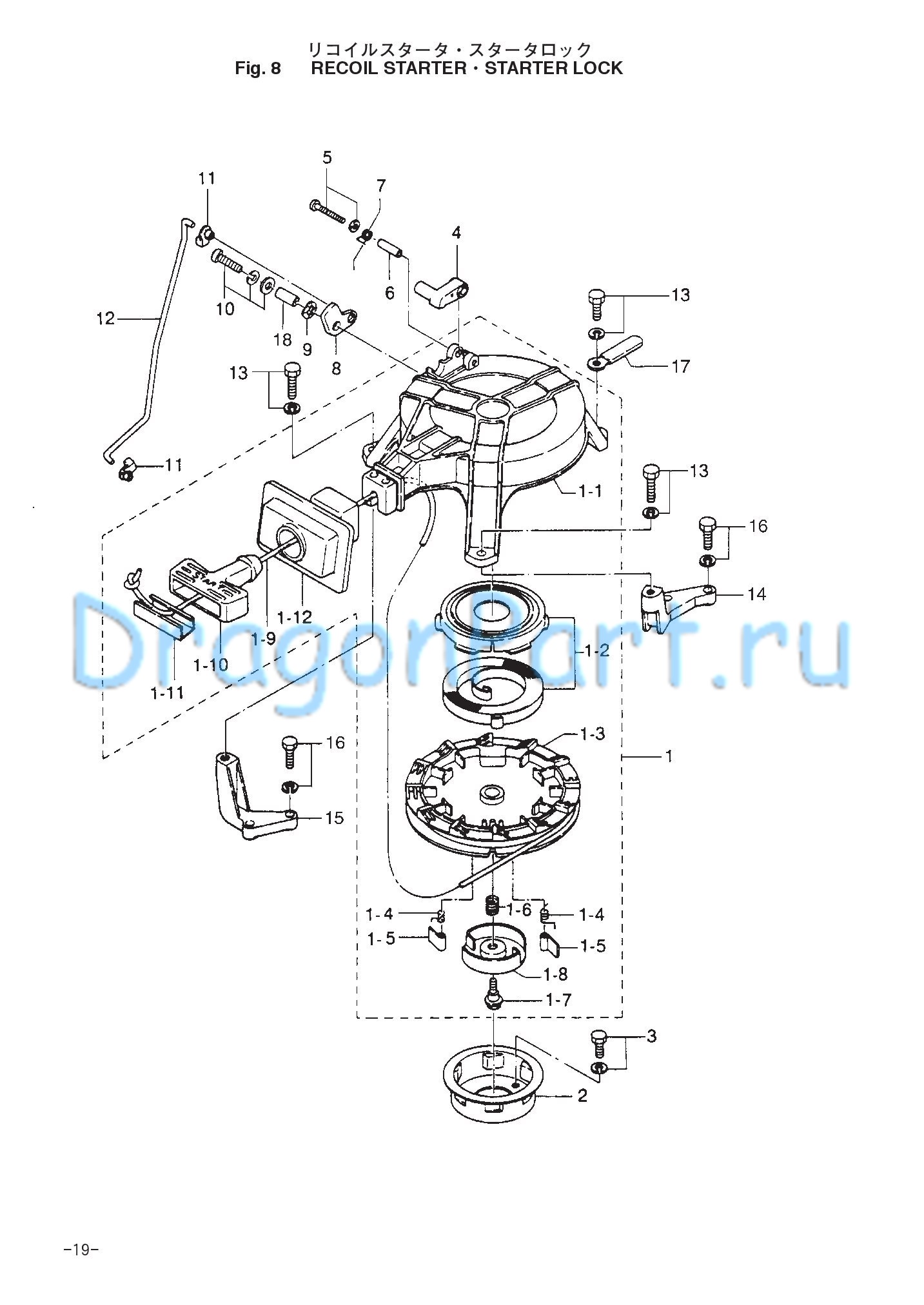

RECOIL STARTER STARTER LOCK для Tohatsu M8B - 2008 года выпуска`
-
№АртикулНазвание
-
13B2-05000-0 Recoil StarterRecoil Starter
-
1-13B2-05105-0 * Starter Case* Starter Case
-
1-23B2-05010-0 * Starter Spring Set* Starter Spring Set
-
1-33B2-05104-0 * Reel* Reel
-
1-4369-05012-0 * Return Spring* Return Spring
-
1-53B2-05003-0 * Ratchet* Ratchet
-
1-6369-05007-0 * Friction Spring* Friction Spring
-
1-73B2-05138-0 * Starter Shaft Bolt* Starter Shaft Bolt
-
1-83B2-05006-0 * Friction Plate* Friction Plate
-
1-93B2-05013-0 * Starter Rope
04.5-1620* Starter Rope
04.5-1620 -
1-103B2-05019-0 * Starter Handle* Starter Handle
-
1-113B2-05131-0 * Rope Anchor* Rope Anchor
-
1-123B2-05116-0 * Starter Sealing Plate* Starter Sealing Plate
-
23B2-05901-0 Starter PulleyStarter Pulley
-
3910121-6612 BoltBolt
-
4338-05252-0 Starter LockStarter Lock
-
5921503-5430 ScrewScrew
-
6338-05255-0 Collar, 4-6-21Collar, 4-6-21
-
7338-05216-0 Starter Lock SpringStarter Lock Spring
-
83B2-05253-0 Starter Lock CamStarter Lock Cam
-
9941403-0800 Wave Washer, d=8Wave Washer, d=8
-
10921503-7616 ScrewScrew
-
113K9-05223-0 Rod Snap, 4-2
9.8B # 15989~ 8B # 75661 ~ 6B # 53017~Rod Snap, 4-2
9.8B # 15989~ 8B # 75661 ~ 6B # 53017~ -
123B2-05217-1 Starter Lock Rod
9.8B # 15989~ 8B # 75661 ~ 6B # 53017~Starter Lock Rod
9.8B # 15989~ 8B # 75661 ~ 6B # 53017~ -
13910103-6620 BoltBolt
-
143B2B05101-0 Starter Bracket (Left)Starter Bracket (Left)
-
153B2B05102-0 Starter Bracket (Right)Starter Bracket (Right)
-
16910121-6623 BoltBolt
-
17309-06972-0 Clamp, 6.5-47.5PClamp, 6.5-47.5P
-
183M2-05215-0 Collar, 6.1-8-4Collar, 6.1-8-4
