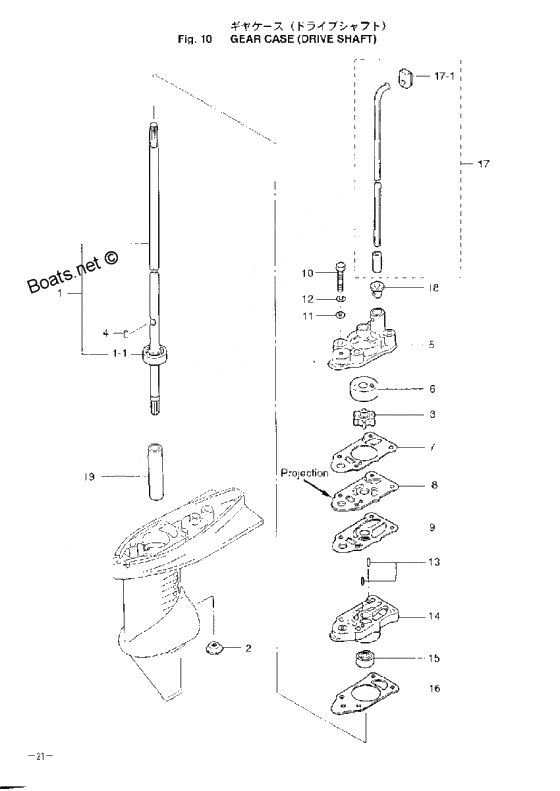

Gear case (drive shaft) для Tohatsu MFS3.5A - 2007 года выпуска`
-
№АртикулНазвание
-
13AB-64306-0 Drive shaft insin f2.5a/3.5a
for Transom S""Drive shaft insin f2.5a/3.5a
for Transom S"" -
13AB-64307-0 Drive shaft inlin f2.5a/3.5a
for Transom L""Drive shaft inlin f2.5a/3.5a
for Transom L"" -
1-13AB-60213-0 Ball bearing 6000Ball bearing 6000
-
2369-64020-2 Bevel Gear BBevel Gear B
-
3369-65021-1 Крыльчатка водной помпыКрыльчатка водной помпы
-
4369-65022-0 Key water pump impellerKey water pump impeller
-
53F0-65016-0 Pump CasePump Case
-
63F0-65011-0 Liner Pump CaseLiner Pump Case
-
73F0-65018-0 New partNew part
-
83AB-65025-0 WATER PUMP GUIDE PLATEWATER PUMP GUIDE PLATE
-
93F0-65029-0 New partNew part
-
11940113-0600 WasherWasher
-
12941303-0600 New partNew part
-
133B2-65022-0 New partNew part
-
143F0-65040-1 Lower pump case
with Bushing & O-RingLower pump case
with Bushing & O-Ring -
153F0-60223-0 Oil Seal 10-22-8Oil Seal 10-22-8
-
163F0-65020-0 New partNew part
-
173AB-65191-0 Water pipe insin f2/3.5a
for Transom S""Water pipe insin f2/3.5a
for Transom S"" -
173AB-65192-0 Water pipe inlin f2.5a/3.5a
for Transom L""Water pipe inlin f2.5a/3.5a
for Transom L"" -
17-13AB-65031-0 Grommet water pipe (upper)Grommet water pipe (upper)
-
183F0-65032-0 Grommet Lower Water TubeGrommet Lower Water Tube
-
193F0-64321-0 Spacer 10.1-15-72Spacer 10.1-15-72
