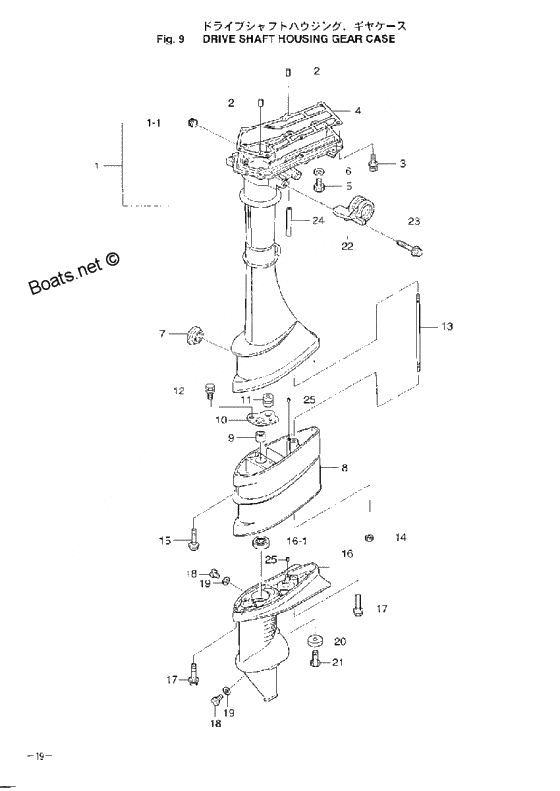

Drive shaft housing gear case для Tohatsu MFS3.5A - 2007 года выпуска
-
№АртикулНазвание
-
13ABQ61020-0 Drive shaft housing insin f2.5ab/3.5abDrive shaft housing insin f2.5ab/3.5ab
-
3ABQ61020-2 Drive shaft housing insin f2.5ab/3.5abDrive shaft housing insin f2.5ab/3.5ab
-
1-13H6-07257-0 Exhaust PlugExhaust Plug
-
2345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
43AB-61012-0 Drive Shaft Housing GasketDrive Shaft Housing Gasket
-
6332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
7369-61016-0 Grommet Drive Shaft HousingGrommet Drive Shaft Housing
-
83ABQ61100-0 Extension housing inlin f2.5ab/3.5abExtension housing inlin f2.5ab/3.5ab
-
93AB-60003-0 Drive shaft bushingDrive shaft bushing
-
103AB-64332-0 Drive shaft bushing stopperDrive shaft bushing stopper
-
11172-36008-0 Grommet
for Transom L""Grommet
for Transom L"" -
12910113-5612 Bolt
for Transom L""Bolt
for Transom L"" -
133F0-61101-1 Stud BoltStud Bolt
-
153AB-60001-0 Bolt 6-30 precoatedBolt 6-30 precoated
-
3AB-60001-1 Bolt 6-30 precoatedBolt 6-30 precoated
-
163BMQ60000-0 Gear case f2.5ab/3.5abGear case f2.5ab/3.5ab
-
16-13AB-60213-0 Ball bearing 6000Ball bearing 6000
-
173AB-60001-0 Bolt 6-30 precoatedBolt 6-30 precoated
-
3AB-60001-1 Bolt 6-30 precoatedBolt 6-30 precoated
-
18332-60005-2 Oil Plug Water PlugOil Plug Water Plug
-
20338-60218-2 New partNew part
-
21910103-0616 BoltBolt
-
223ABQ62001-0 Steering bracketSteering bracket
-
3ABQ62001-1 Steering bracketSteering bracket
-
253AB-01111-0 Dowel Pin 6-12Dowel Pin 6-12
Все узлы модели:
- Accessories
- Assembly kit
- Camshaft & valve
- Carburetor
- Clamp bracket, swivel bracket
- Cowl
- Cylinder & cylinder head
- • Drive shaft housing gear case
- Fuel tank (integral)
- Gear case (drive shaft)
- Gear case (propeller shaft)
- Magneto
- Oil pan
- Piston & crank shaft
- Recoil starter
- Shift
- Tiller handle and throttle
