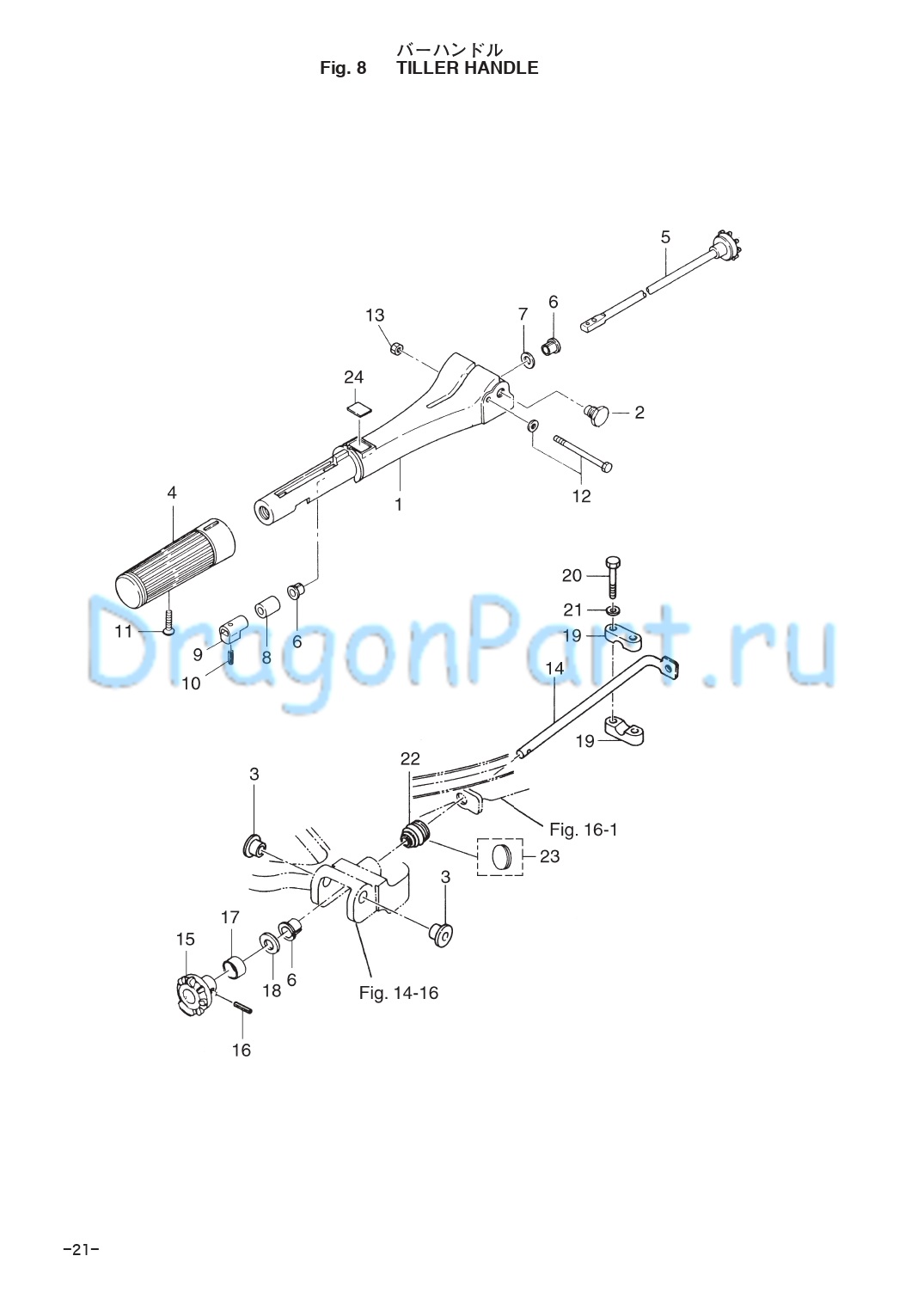

TILLER HANDLE для Tohatsu M25C3 - 2007 года выпуска`
-
№АртикулНазвание
-
1398Q63011-0 Tiller HandleTiller Handle
-
2346-63201-1 Tiller Handle BoltTiller Handle Bolt
-
3345-63207-0 Collar, 9.8-12-7.5Collar, 9.8-12-7.5
-
4398-63012-0 GripGrip
-
5398-63041-0 Throttle Shaft “A”Throttle Shaft “A”
-
6350-63046-0 Bushing, 8.4-10-11Bushing, 8.4-10-11
-
7941403-1000 Wave Washer, d二10Wave Washer, d二10
-
8345-63048-0 Throttle Shaft DamperThrottle Shaft Damper
-
9398-63053-0 Throttle Shaft SpacerThrottle Shaft Spacer
-
10951403-0310 Spring Pin, 3-10Spring Pin, 3-10
-
11921803-0525 ScrewScrew
-
12910103-5675 Bolt
or 910113-5675Bolt
or 910113-5675 -
13930403-0600 Nylon Nut, 6P-1.0Nylon Nut, 6P-1.0
-
14346-63061-2 Throttle Shaft “B”Throttle Shaft “B”
-
15346-63064-0 Universal PinionUniversal Pinion
-
16951403-0414 Spring Pin, 4-14Spring Pin, 4-14
-
17346-63066-1 Collar, 15.9-17.1-9Collar, 15.9-17.1-9
-
18940103-0800 Washer
or 940113-0800Washer
or 940113-0800 -
19345-63063-0 Throttle Shaft SupporterThrottle Shaft Supporter
-
20910114-0630 BoltBolt
-
21940103-0600 Washer
or 940113-0600Washer
or 940113-0600 -
22345-66226-0 Throttle Shaft GrommetThrottle Shaft Grommet
-
23345-67117-0 Grommet, 17-2.7
for Remote ControlGrommet, 17-2.7
for Remote Control -
24369-72019-1 Throttle DecalThrottle Decal
