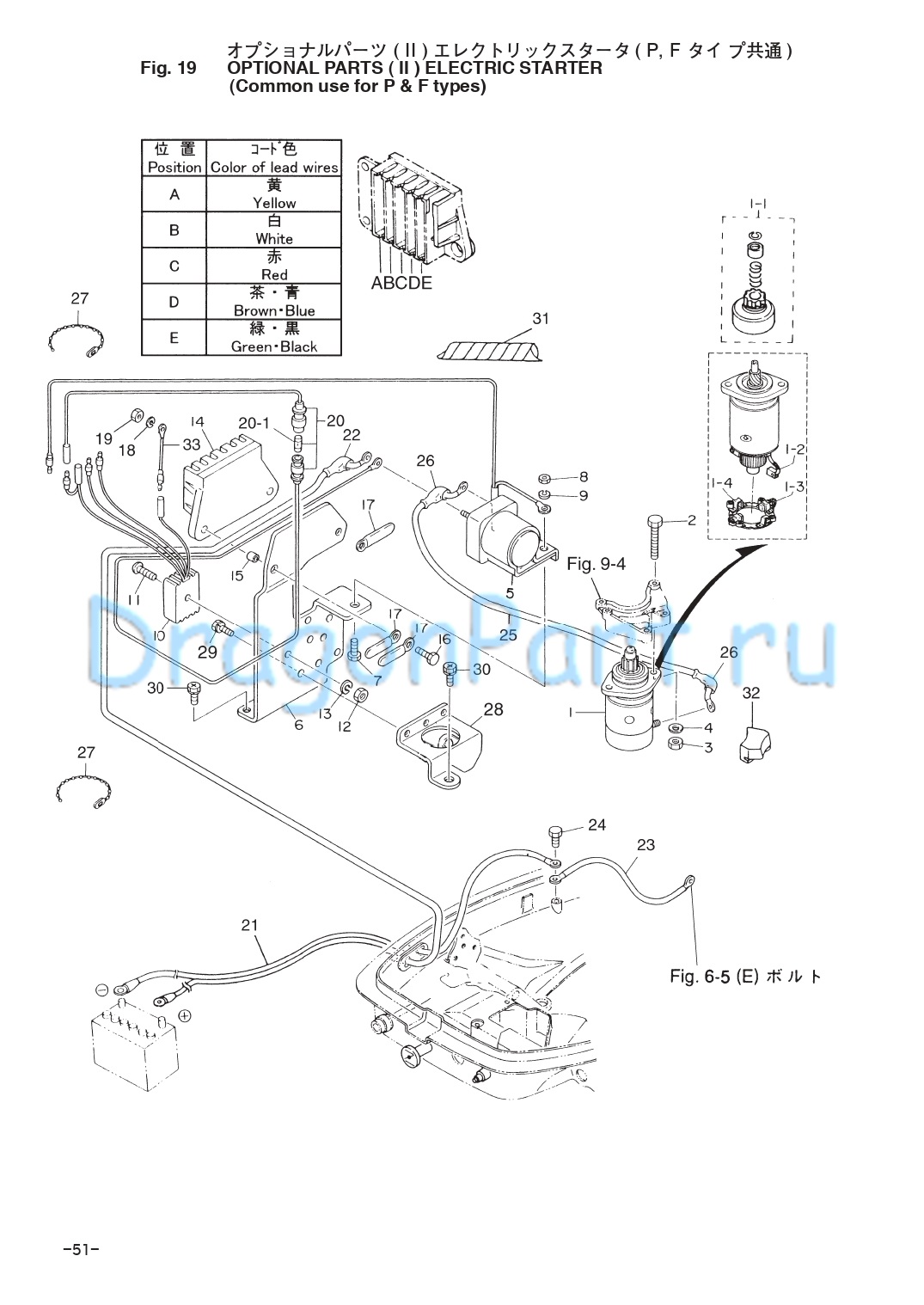

OPTIONAL PARTS (II) ELECTRIC STARTER для Tohatsu M25C3 - 2007 года выпуска
-
№АртикулНазвание
-
1346-76010-0 Starter MotorStarter Motor
-
1-1346-76015-0 * Pinion* Pinion
-
1-2346-76012-0 * Positive Brush ( + )* Positive Brush ( + )
-
1-3346-76013-0 * Negative Brush (一）* Negative Brush (一）
-
1-4346-76014-0 * Brush Holder* Brush Holder
-
2916103-0835 BoltBolt
-
3930103-0800 NutNut
-
4941303-0800 Spring WasherSpring Washer
-
5346-76040-0 Starter SolenoidStarter Solenoid
-
6346-76043-1 Starter Solenoid BracketStarter Solenoid Bracket
-
7910103-0616 BoltBolt
-
8930103-0600 NutNut
-
9941303-0600 Spring WasherSpring Washer
-
103G2-76060-0 Rectifier
30A4# 35175〜 25C3 # 50039〜Rectifier
30A4# 35175〜 25C3 # 50039〜 -
11921503-0525 ScrewScrew
-
12930103-0500 NutNut
-
13941303-0500 Spring WasherSpring Washer
-
14353-06281-0 Cable Terminal HolderCable Terminal Holder
-
15353-06283-0 Collar, 6.4-10-4.7Collar, 6.4-10-4.7
-
16910103-0620 BoltBolt
-
17309-06972-0 Clamp, 6.5-47.5PClamp, 6.5-47.5P
-
18941303-0600 Spring WasherSpring Washer
-
19930103-0600 NutNut
-
203B2-76062-0 Fuse Cable
L二355Fuse Cable
L二355 -
20-1346-76212-0 * Fuse (15A)* Fuse (15A)
-
213B2-76120-0 Batterv Cable
L二2000Batterv Cable
L二2000 -
223B7-76145-0 Terminal CapTerminal Cap
-
23334-76141-0 Ground Cable
L二150Ground Cable
L二150 -
24910103-0612 BoltBolt
-
253B2-76147-1 Starter Cable
L二200Starter Cable
L二200 -
263A3-76145-0 Terminal CapTerminal Cap
-
27336-76091-0 Lead Wire BandLead Wire Band
-
28346-76081-0 Neutral Switch BracketNeutral Switch Bracket
-
29910403-6508 Bolt
or 910903-6508Bolt
or 910903-6508 -
30910403-6616 Bolt
or 910903-6616Bolt
or 910903-6616 -
31361-76149-0 Coil TubeCoil Tube
-
32346-76007-0 Starter Motor DamperStarter Motor Damper
-
333G2-76142-0 Ground Cable
30A4# 35175〜 25C3 # 50039〜Ground Cable
30A4# 35175〜 25C3 # 50039〜
