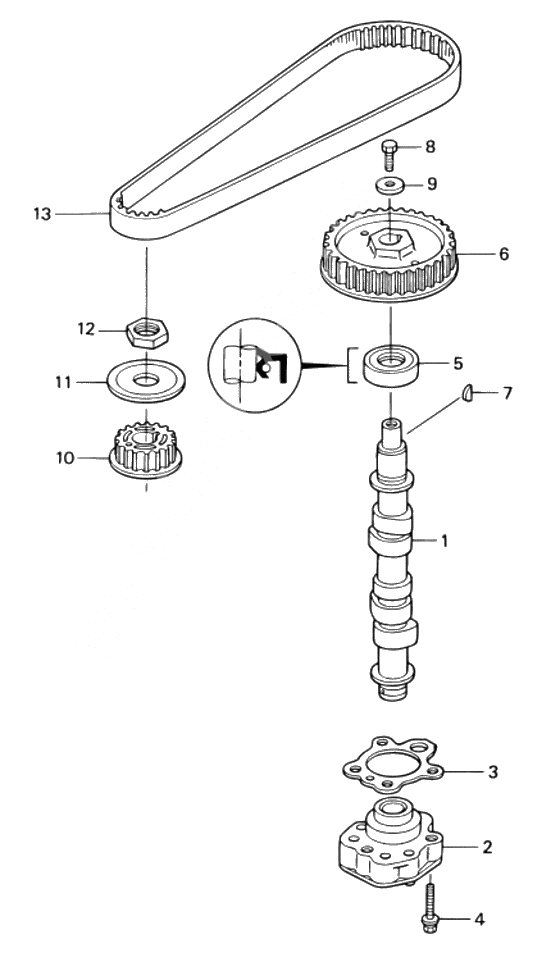

Camshaft & oil pump для Tohatsu MFS9.8A3 - 2006 года выпуска`
-
№АртикулНазвание
-
13V1-07010-0 CamshaftCamshaft
-
23V1-07600-0 Oil PumpOil Pump
-
33V1-07653-0 Gasket,Oil PumpGasket,Oil Pump
-
4910114-5635 Bolt & washer
OIL PUMPBolt & washer
OIL PUMP -
9101E3-5635 Bolt & washerBolt & washer
-
53H8-07025-0 Oil Seal,18-35-8Oil Seal,18-35-8
-
63H8-10062-2 Driven Pulley
BLACK CAMSHAFT PULLEYDriven Pulley
BLACK CAMSHAFT PULLEY -
7309-00131-0 Key, MagnetoKey, Magneto
-
83AA-60108-0 Pre-Coated Bolt
#017458XD~Pre-Coated Bolt
#017458XD~ -
93H8-10066-0 WasherWasher
-
103V1-10060-0 Drive Pulley
TIMING PULLEYDrive Pulley
TIMING PULLEY -
113V1-10063-0 Belt GuideBelt Guide
-
123V1-10068-0 NutNut
-
133V1-10045-0 Timing BeltTiming Belt
