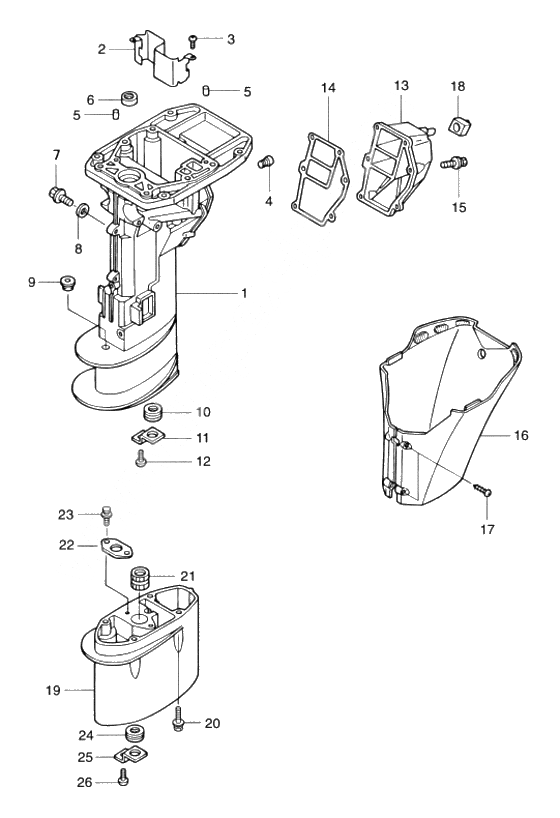

Drive shaft housing для Tohatsu MFS9.8A3 - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    3V1Q61020-0 Drive shaft housing s (amb)
    SHORT
    Drive shaft housing s (amb)
    SHORT
  • 1
    3V1Q61030-0 Drive shaft housing l (amb)
    LONG
    Drive shaft housing l (amb)
    LONG
  • 3V1Q61030-1 Drive shaft housing l (amb)
    Drive shaft housing l (amb)
  • 2
    3V1-07440-0 Guide Plate
    OR 3V1-07440-0
    Guide Plate
    OR 3V1-07440-0
  • 3
    921503-6510 Stud Bolt
    Stud Bolt
  • 4
    3H6-07257-0 Exhaust Plug
    Exhaust Plug
  • 5
    345-01111-0 Dowel Pin 6-12
    Dowel Pin 6-12
  • 6
    3B2-01215-0 Oil seal 12-28-5
    Oil seal 12-28-5
  • 7
    3R3-07405-1 Bolt, Drain
    Bolt, Drain
  • 8
    3R3-07406-0 Washer
    Washer
  • 9
    369-66043-1 Grommet Cam Rod
    Grommet Cam Rod
  • 10
    3V1-65204-0 Rubber Mount,13-2.5
    FOR TRANSOM S L
    Rubber Mount,13-2.5
    FOR TRANSOM S L
  • 11
    3V1-65203-0 Lock Plate
    FOR TRANSOM S L
    Lock Plate
    FOR TRANSOM S L
  • 12
    921513-0510 Stud Bolt
    FOR TRANSOM S L
    Stud Bolt
    FOR TRANSOM S L
  • 13
    3V1-61208-0 Cover,Idol Port
    Cover,Idol Port
  • 14
    3V1-61220-0 Gasket,Idle Port
    Gasket,Idle Port
  • 15
    910113-5620 Bolt
    Bolt
  • 16
    3V1Q61225-0 Apron (amb)
    Apron (amb)
  • 17
    3F3-02423-0 Screw 5-30
    Screw 5-30
  • 18
    3V1-61212-0 Grommet,Idle Port
    Grommet,Idle Port
  • 19
    3B2Q61110-2 Extension housing ul (amb)
    FOR TRANSOM UL
    Extension housing ul (amb)
    FOR TRANSOM UL
  • 20
    3V1-60001-0 Bolt 6-35 precoated
    FOR TRANSOM UL
    Bolt 6-35 precoated
    FOR TRANSOM UL
  • 3V2-60001-0 Bolt 6-35 precoated
    Bolt 6-35 precoated
  • 21
    3B2-60003-1 Bushing Drive Shaft Housing
    FOR TRANSOM UL
    Bushing Drive Shaft Housing
    FOR TRANSOM UL
  • 22
    3V1-64332-0 Stopoer,Bushing
    FOR TRANSOM UL
    Stopoer,Bushing
    FOR TRANSOM UL
  • 23
    910113-5612 Bolt
    FOR TRANSOM UL
    Bolt
    FOR TRANSOM UL
  • 24
    3V1-65204-0 Rubber Mount,13-2.5
    FOR TRANSOM UL
    Rubber Mount,13-2.5
    FOR TRANSOM UL
  • 25
    3V1-65203-0 Lock Plate
    FOR TRANSOM UL
    Lock Plate
    FOR TRANSOM UL
  • 26
    921513-0510 Stud Bolt
    FOR TRANSOM UL
    Stud Bolt
    FOR TRANSOM UL
