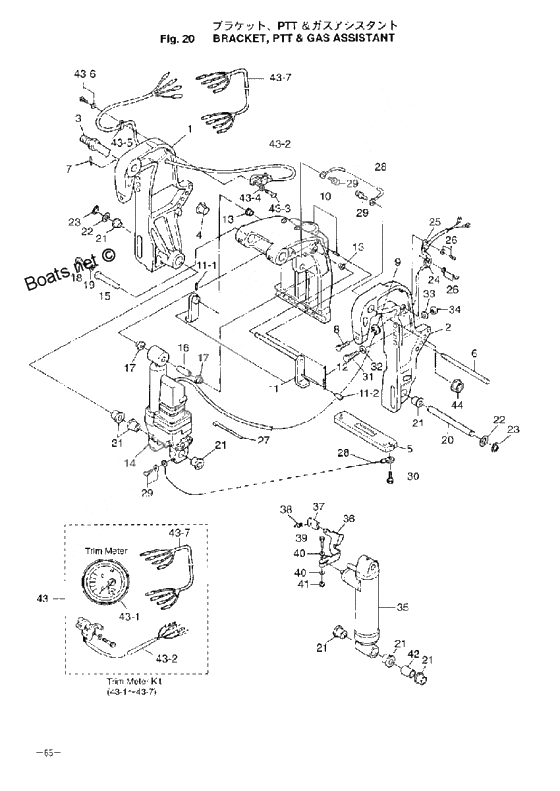

Bracket, ptt & gas assistant для Tohatsu MFS30B - 2006 года выпуска`
-
№АртикулНазвание
-
13AEQ77211-0 Clamp bracket right (ptt)
Stern Bracket Right, PTT type onlyClamp bracket right (ptt)
Stern Bracket Right, PTT type only -
13AFQ77211-0 Clamp bracket (right) gas assist type
Stern Bracket Right, Gas Assist type onlyClamp bracket (right) gas assist type
Stern Bracket Right, Gas Assist type only -
23AEQ77212-0 Clamp bracket left (ptt)
Stern Bracket Left, PTT type onlyClamp bracket left (ptt)
Stern Bracket Left, PTT type only -
23AFQ77212-0 Clamp bracket (left) gas assist type
Stern Bracket Left, Gas Assist type onlyClamp bracket (left) gas assist type
Stern Bracket Left, Gas Assist type only -
33AD-62191-0 Swivel bracket bolt (ptt)
Bracket BoltSwivel bracket bolt (ptt)
Bracket Bolt -
43C8-77213-0 Bushing Bracket BoltBushing Bracket Bolt
-
53C7-60218-2 Anode, Stern BracketAnode, Stern Bracket
-
63R0-77118-0 Thrust RodThrust Rod
-
7951603-1000 R-PinR-Pin
-
83C8-77214-0 Винт струбциныВинт струбцины
-
9332-62101-0 Pad clamp screwPad clamp screw
-
103ACQ77208-0 Swivel bracket (ptt)
with PinSwivel bracket (ptt)
with Pin -
113R0S62470-0 Tilt Stopper Ass'yTilt Stopper Ass'y
-
113R0Q62470-0 Tilt stopper assy.Tilt stopper assy.
-
3AC-62466-1 Tilt stopper assy.Tilt stopper assy.
-
11-1951403-3516 New partNew part
-
11-2369-62433-1 Grip Tilt StopperGrip Tilt Stopper
-
123R0-62473-0 Spring,Tilt StopperSpring,Tilt Stopper
-
13353-63207-0 Collar 10.2-12-12Collar 10.2-12-12
-
143ACQ77151-0 Power trim & tilt assyPower trim & tilt assy
-
3AC-77151-1 Power trim & tilt assyPower trim & tilt assy
-
153R0-77071-0 Upper,Cylinder PinUpper,Cylinder Pin
-
163R0-77075-0 BushingBushing
-
173R0-77076-0 BushingBushing
-
19345-05122-0 New partNew part
-
203R0-77101-0 Lower,Cylinder PinLower,Cylinder Pin
-
213C8-77076-1 New part
6 For Gas assist typeNew part
6 For Gas assist type -
223R0-77112-0 WasherWasher
-
23945103-1800 C-RingC-Ring
-
243AC-06973-0 ClampClamp
-
336-06973-0 ClampClamp
-
25345-06915-0 Clamp 6.5-14Clamp 6.5-14
-
26921503-5612 Stud BoltStud Bolt
-
271H2-31534-0 Lead wire band-local purchaseLead wire band-local purchase
-
28398-62396-1 Ground Wire
Length: 130Ground Wire
Length: 130 -
30910103-5630 BoltBolt
-
313C7-62133-2 Bolt
Length: 105Bolt
Length: 105 -
32353-61334-0 WasherWasher
-
33940113-1200 WasherWasher
-
343C7-62139-1 Nut,P1.25Nut,P1.25
-
353R0Q77601-0 Gas shock absorber
Gas assist type onlyGas shock absorber
Gas assist type only -
3R0Q77601-2 Gas shock absorberGas shock absorber
-
363R0-66311-0 Rever, Revers Lock
Gas assist type onlyRever, Revers Lock
Gas assist type only -
373AL-66333-0 Lock lever grip
Gas assist type onlyLock lever grip
Gas assist type only -
38346-66334-0 Stopper
Gas assist type onlyStopper
Gas assist type only -
39910114-0635 New part
Gas assist type onlyNew part
Gas assist type only -
40940113-0600 Washer
Gas assist type onlyWasher
Gas assist type only -
423R0-77105-0 Втулка тяги КПП
Gas assist type onlyВтулка тяги КПП
Gas assist type only -
433R0-72525-1 Trim meter kit-25/30b - no longer available
OptionTrim meter kit-25/30b - no longer available
Option -
43-13E0-72571-0 Trim meter ass'y
OptionTrim meter ass'y
Option -
43-23Z5-72574-0 Trim sensor (4-wire) - short - nla
Length: 1700, Option, Trim SenderTrim sensor (4-wire) - short - nla
Length: 1700, Option, Trim Sender -
43-43C8-66308-0 New partNew part
-
43-5336-06973-0 Clamp Lead Wire
OptionClamp Lead Wire
Option -
43-73F3-72573-1 Extension cord trim sender
Length: 6000, OptionExtension cord trim sender
Length: 6000, Option -
44346-62124-1 Bracket nutBracket nut
