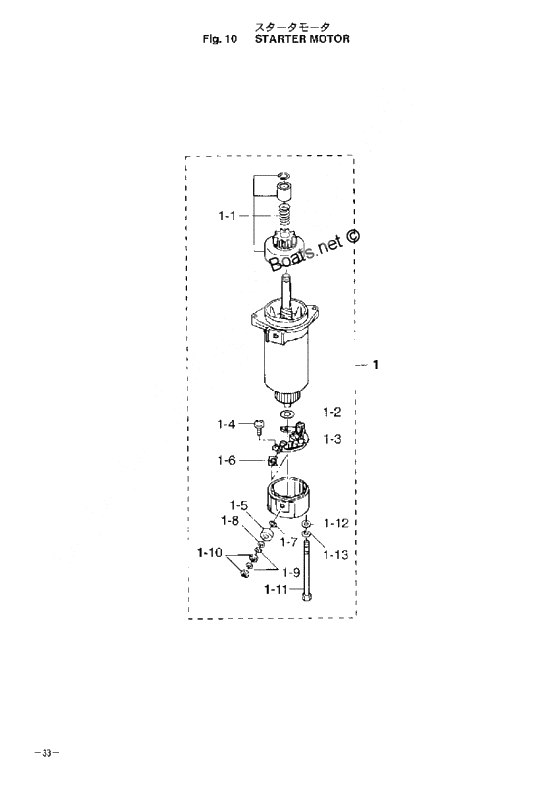

Starter motor для Tohatsu MFS30B - 2006 года выпуска
-
№АртикулНазвание
-
13C8-76010-1 Starter Motor Ass'yStarter Motor Ass'y
-
1-13C8-76015-0 Pinion Ass'yPinion Ass'y
-
1-10930203-0600 NutNut
-
1-113C8-75019-0 BoltBolt
-
1-23C8-75015-0 WasherWasher
-
1-33C8-75014-0 Brush Holder Ass'yBrush Holder Ass'y
-
1-4921521-6408 Stud BoltStud Bolt
-
1-53C8-75016-0 BushingBushing
-
1-63C8-75017-0 BushingBushing
-
1-73C8-75018-0 O-RingO-Ring
-
1-8940103-0600 WasherWasher
-
1-9941303-0600 New partNew part
Все узлы модели:
- Assembly kit
- Bottom cowl
- Bracket, ptt & gas assistant
- Camshaft & oil pump
- Clamp bracket & reverse lock
- Cylinder head
- Cylinder
- Drive shaft & water pump
- Drive shaft housing
- Electric parts
- Fuel pump, fuel rail & vapor separator
- Gear case
- Intake manifold & throttle body
- Intank valve & exhaust valve
- Magneto & ecu
- Optional parts, accessories
- Piston & crank shaft
- Power trim & tilt
- Recoil starter
- Separate fuel tank
- Shift & cam rod
- Shift
- • Starter motor
- Steering handle, tiller handle
- Stern bracket & reverse lock
- Swivel bracket, manual type
- Top cowl
