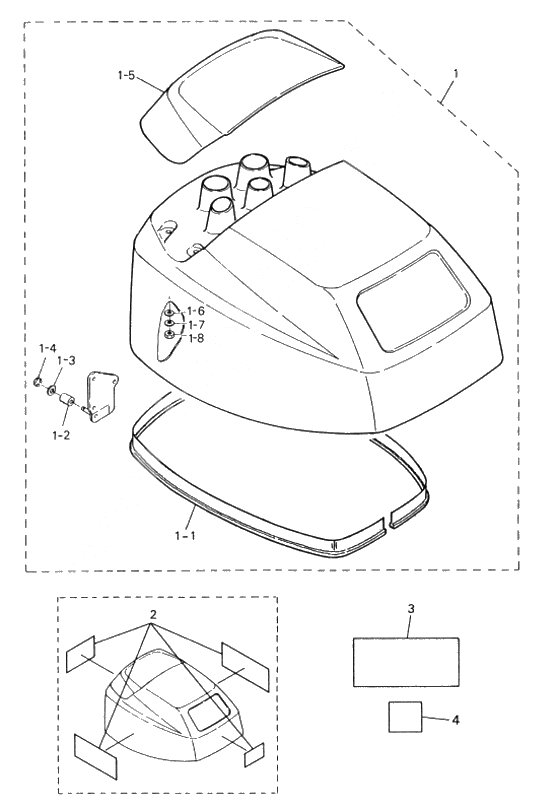

Top cowl (motor cover upper) для Tohatsu MFS15B2 - 2006 года выпуска`
-
№АртикулНазвание
-
13V9Q67500-1 Motor cover upper mfs15/18b2 (aqua marine blue)
TOHATSU MOTOR COVER (UPPER)Motor cover upper mfs15/18b2 (aqua marine blue)
TOHATSU MOTOR COVER (UPPER) -
3V9Q67645-0 Motor cover upper mfs15/18b2 (aqua marine blue)Motor cover upper mfs15/18b2 (aqua marine blue)
-
13W0N67500-1 Motor cover upper nsf15/18b (aqua marine blue)
NISSAN MOTOR COVER (UPPER)Motor cover upper nsf15/18b (aqua marine blue)
NISSAN MOTOR COVER (UPPER) -
3W0Q67645-0 Motor cover upper nsf15/18b (aqua marine blue)Motor cover upper nsf15/18b (aqua marine blue)
-
1-13S9-67501-0 Seal rubber,motor coverSeal rubber,motor cover
-
1-23R3-67517-0 Roller, 6.5-11-14Roller, 6.5-11-14
-
1-33R0-66308-0 WasherWasher
-
1-4945303-0500 E-RingE-Ring
-
1-53R3Q67521-0 Tilt handle f15/20c (amb)Tilt handle f15/20c (amb)
-
1-63R0-66308-0 WasherWasher
-
1-7941303-0600 New partNew part
-
1-8930113-0600 NutNut
-
23V6Q87801-0 Decal set mfs15b2 (aqua marine blue)
TOHATSUDecal set mfs15b2 (aqua marine blue)
TOHATSU -
23V8N87801-0 Decal set nsf15b2 (aqua marine blue)
NISSANDecal set nsf15b2 (aqua marine blue)
NISSAN -
33R0-72180-0 Caution Lable ACaution Lable A
-
43H6-76199-0 Label,oil PressureLabel,oil Pressure
Все узлы модели:
- Assembly kit
- Bottom cowl (motor cover lower)
- Camshaft & oil pump
- Carburetor
- Clamp bracket (stern bracket) & reverse lock
- Cylinder head
- Cylinder
- Drive shaft housing
- Drive system & water pump
- Electric parts
- Fuel tank
- Gear case
- Intake manifold & fuel pump
- Intake valve & exhaust valve
- Magneto
- Optional parts (accessories)
- Piston & crank shaft
- Recoil starter
- Shift & stop switch
- Shift (for ep model)
- Starter motor
- Swivel bracket
- Tiller handle (steering handle)
- • Top cowl (motor cover upper)
