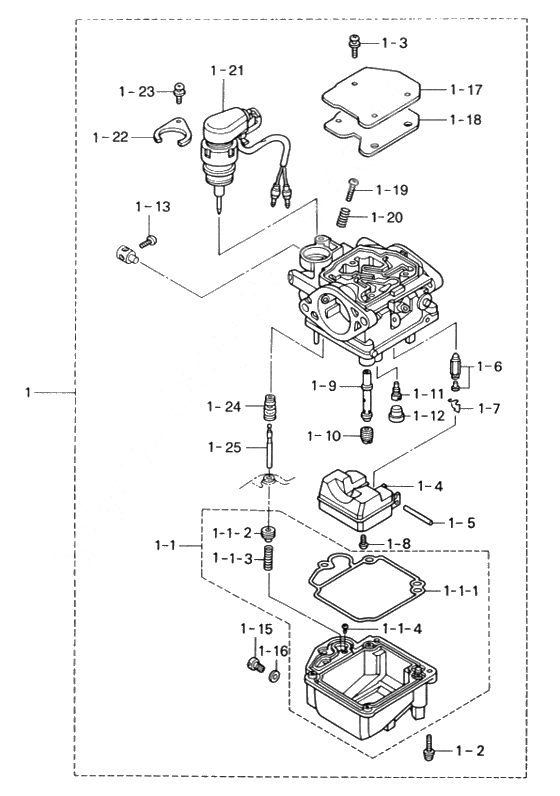

Carburetor для Tohatsu MFS15B2 - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    3R3-03500-2 Caburetor complete
    3R3G 15B2 #12011~
    Caburetor complete
    3R3G 15B2 #12011~
  • 1
    3R3-03200-1 Carburetor assy 15a-b 4-stroke
    3R3F 15B #10001~12010
    Carburetor assy 15a-b 4-stroke
    3R3F 15B #10001~12010
  • 3R3-03500-2 Carburetor assy 15a-b 4-stroke
    Carburetor assy 15a-b 4-stroke
  • 1-1
    3V9-03220-0 Float Chamber
    15B#10001~#12010 / OLD PART # 3R3-03221-0
    Float Chamber
    15B#10001~#12010 / OLD PART # 3R3-03221-0
  • 1-1
    3R3-03221-1 Float chamber f15a / f15b2 (s/n 12011~)
    15B2 #12011~
    Float chamber f15a / f15b2 (s/n 12011~)
    15B2 #12011~
  • 1-1-1
    3R3-03222-0 O-ring,float chamber
    O-ring,float chamber
  • 1-1-2
    3R3-03315-1 Plunger comp
    H=11.9 15B2 #12011~
    Plunger comp
    H=11.9 15B2 #12011~
  • 1-1-2
    3V9-03315-0 Plunger comp
    H=9.6 15B#10001~#12010 / OLD PART #3R3-03315-0
    Plunger comp
    H=9.6 15B#10001~#12010 / OLD PART #3R3-03315-0
  • 1-1-3
    3R3-03314-0 Катушка пружины
    Катушка пружины
  • 1-1-4
    3R3-03316-0 Stud Bolt
    Stud Bolt
  • 1-10
    3R3-03251-0 Main jet #105
    Main jet #105
  • 1-11
    3R3-03255-0 Slow jet #50
    Slow jet #50
  • 1-12
    346-03256-0 Rubber cap
    Rubber cap
  • 1-13
    3R3-03180-0 Stud Bolt
    Stud Bolt
  • 1-15
    3R3-03292-0 Drain Screw
    Drain Screw
  • 1-16
    3R3-03293-0 O-Ring
    O-Ring
  • 1-17
    3R3-03181-0 Carburetor cover
    Carburetor cover
  • 1-18
    3R3-03182-0 Gasket,carburetor cover
    Gasket,carburetor cover
  • 1-19
    346-03265-0 Stop Screw
    Stop Screw
  • 1-2
    922503-6414 Stud Bolt
    Stud Bolt
  • 1-20
    3R3-03267-0 Spring Washer
    Spring Washer
  • 1-21
    3R3-03410-0 Auto-by-stater ass'y
    WITH O-RING
    Auto-by-stater ass'y
    WITH O-RING
  • 1-22
    3R3-03411-0 Holder
    Holder
  • 1-23
    369-03186-0 Stud Bolt
    Stud Bolt
  • 1-24
    3R3-03311-1 Rubber boot
    #043679XD~
    Rubber boot
    #043679XD~
  • 1-25
    3R3-03312-0 Link Rod
    Link Rod
  • 1-3
    369-03186-0 Stud Bolt
    Stud Bolt
  • 1-4
    3R3-03231-0 Float
    Float
  • 1-5
    3F3-03232-0 Arm Pin Float
    Arm Pin Float
  • 1-6
    3R3-03239-0 Floato Valve Assy
    WITH VALVE PIN
    Floato Valve Assy
    WITH VALVE PIN
  • 1-7
    344-03244-0 Clip
    Clip
  • 1-8
    3R3-03234-0 Stud Bolt
    Stud Bolt
  • 1-9
    3R3-03252-0 Main Nozzle
    Main Nozzle
