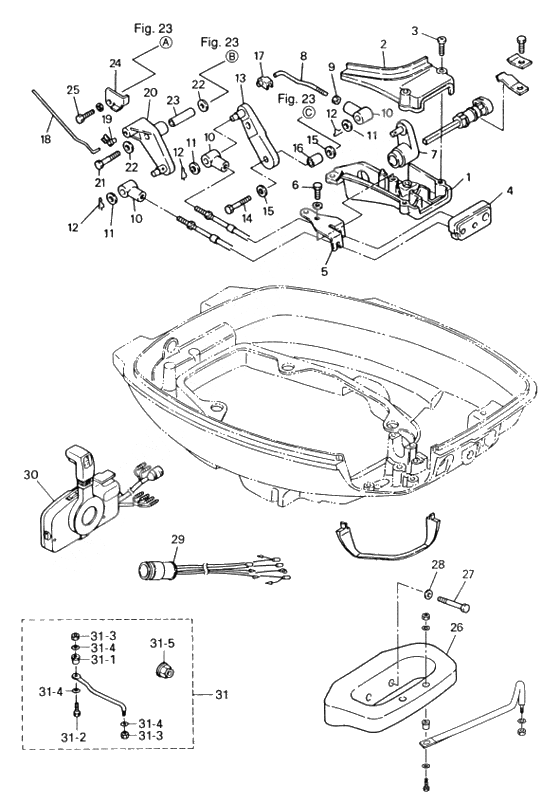

Shift (for ep model) для Tohatsu MFS15B2 - 2006 года выпуска`
-
№АртикулНазвание
-
13R3Q67482-0 Rc control bracket (aqua marine blue)
FOR EPRc control bracket (aqua marine blue)
FOR EP -
23R3-67483-0 Cover, Remote Control Bracket
FOR EPCover, Remote Control Bracket
FOR EP -
3922513-5630 Stud Bolt
FOR EPStud Bolt
FOR EP -
43R3-83732-0 Втулка кабеля
FOR EPВтулка кабеля
FOR EP -
53R3-83820-0 Bracket, Cable
FOR EPBracket, Cable
FOR EP -
6910113-5616 Bolt
FOR EPBolt
FOR EP -
73R3-66128-0 Shift Arm, Remote Control
FOR EPShift Arm, Remote Control
FOR EP -
83R3-66134-1 Rod. shift lever
FOR EPRod. shift lever
FOR EP -
9930103-0500 Nut
FOR EPNut
FOR EP -
103B7-83715-1 Cable Joint
FOR EPCable Joint
FOR EP -
3B7-83715-2 Cable JointCable Joint
-
113AA-83719-0 Washer
OR 353-83719-0 FOR EPWasher
OR 353-83719-0 FOR EP -
12951603-0800 R-Pin
FOR EPR-Pin
FOR EP -
133R3-66129-0 Shift Lever, Remote Control
FOR EPShift Lever, Remote Control
FOR EP -
14910113-0625 Bolt
FOR EPBolt
FOR EP -
153R0-66308-0 Washer
FOR EPWasher
FOR EP -
16353-76079-0 Collar 6.2-9-9.3
FOR EPCollar 6.2-9-9.3
FOR EP -
173C8-63733-0 Rod Snap 5-3
FOR EPRod Snap 5-3
FOR EP -
183R3-63709-0 Throttle Rod, Remote Control
FOR EPThrottle Rod, Remote Control
FOR EP -
19346-67196-1 Rod Snap 3-b
FOR EPRod Snap 3-b
FOR EP -
203R3-83910-0 Throttle Lever, Remote Control
FOR EPThrottle Lever, Remote Control
FOR EP -
21910113-0645 Bolt
FOR EPBolt
FOR EP -
910103-0645 BoltBolt
-
223R0-66308-0 Washer
FOR EPWasher
FOR EP -
233R3-83913-0 Втулка тяги КПП
FOR EPВтулка тяги КПП
FOR EP -
243R3-83914-0 Stopper, throttle lever
FOR EPStopper, throttle lever
FOR EP -
25910113-5616 Bolt
FOR EPBolt
FOR EP -
263V5Q62001-0 Steering bracket (amb)
FOR EPSteering bracket (amb)
FOR EP -
27916113-1045 Bolt
FOR EPBolt
FOR EP -
28940113-1000 Washer
FOR EPWasher
FOR EP -
293R3-76110-0 Cord ass'y a
FOR EPCord ass'y a
FOR EP -
303B7Q84340-2 Rc box rc5b (mfs-15/18b2-15/20c-25b/30b ep) w/o ptt amb
TOHATSU FOR EPRc box rc5b (mfs-15/18b2-15/20c-25b/30b ep) w/o ptt amb
TOHATSU FOR EP -
3B7Q84340-3 Rc box rc5b (mfs-15/18b2-15/20c-25b/30b ep) w/o ptt ambRc box rc5b (mfs-15/18b2-15/20c-25b/30b ep) w/o ptt amb
-
303B1N84340-3 Rc box rc8b (nsf15b2/18b2 25b/30b ep) w/o ptt amb
NISSAN FOR EPRc box rc8b (nsf15b2/18b2 25b/30b ep) w/o ptt amb
NISSAN FOR EP -
3B1Q84340-3 Rc box rc8b (nsf15b2/18b2 25b/30b ep) w/o ptt ambRc box rc8b (nsf15b2/18b2 25b/30b ep) w/o ptt amb
-
313E0-84905-0 Drag link assy
FOR EPDrag link assy
FOR EP -
31-13E0-84914-0 Spacer Drag Link H
FOR EPSpacer Drag Link H
FOR EP -
31-23E0-84917-0 Bolt 3/8-50
FOR EPBolt 3/8-50
FOR EP -
31-3353-84918-0 Nylon Nut 3/8
FOR EPNylon Nut 3/8
FOR EP -
31-4353-84916-0 Washer
FOR EPWasher
FOR EP -
31-53F3-84908-0 Seal Ring Drag Link
FOR EPSeal Ring Drag Link
FOR EP
