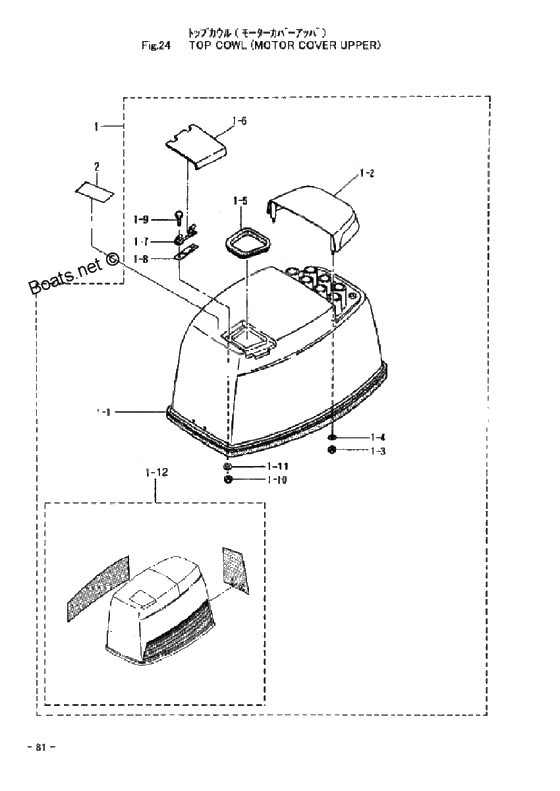

Top cowl (motor cover upper) для Tohatsu MD50B - 2006 года выпуска`
-
№АртикулНазвание
-
13T5Q67510-2 Motor cover upper md40/50 (aqua marine blue)
Motor Cover (Upper), UniqueMotor cover upper md40/50 (aqua marine blue)
Motor Cover (Upper), Unique -
3Z5Q67645-5 Motor cover upper md40/50 (aqua marine blue)Motor cover upper md40/50 (aqua marine blue)
-
1-13F3-67501-0 Seal rubber upper motor coverSeal rubber upper motor cover
-
1-11941303-0600 New partNew part
-
1-123Z5Q87802-0 Decal set md50b (aqua marine blue)
, UniqueDecal set md50b (aqua marine blue)
, Unique -
1-23E3Q67521-0 Tilt handle (aqua marine blue)Tilt handle (aqua marine blue)
-
1-43C8-66308-0 New partNew part
-
1-53E3-67213-0 Seal Rubber Filler LidSeal Rubber Filler Lid
-
1-63E3Q67210-0 Filler lid (aqua marine blue)Filler lid (aqua marine blue)
-
3E3Q67210-1 Filler lid (aqua marine blue)Filler lid (aqua marine blue)
-
1-73B7-67211-0 Hinge, Filler LidHinge, Filler Lid
-
1-83C8-67212-0 Spring filler lidSpring filler lid
-
1-9910103-0614 BoltBolt
-
23C7-72180-3 Caution labelCaution label
-
3C7-72180-0 Caution labelCaution label
