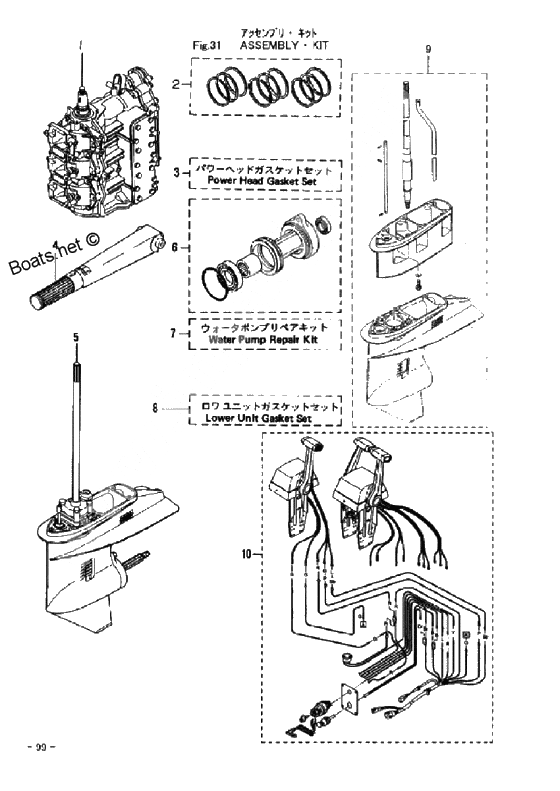

Assembly kit для Tohatsu MD50B - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    3Z5B87110-2 Short block d40/50b
    # 011601XC-
    Short block d40/50b
    # 011601XC-
  • 3Z5B87090-7 Short block d40/50b
    Short block d40/50b
  • 2
    3T5-00015-0 Piston Ring 2nd (0.5mm O/S)
    Piston Ring 2nd (0.5mm O/S)
  • 2
    3T5-87123-0 Кольца поршневые
    Кольца поршневые
  • 2
    3T5-00011-0 Поршневые кольца
    Поршневые кольца
  • 2
    3T5-00012-0 Piston ring 2nd(std)
    Piston ring 2nd(std)
  • 2
    3T5-87124-0 Piston ring set(0.5)
    Piston ring set(0.5)
  • 2
    3T5-00014-0 Поршневые кольца
    Поршневые кольца
  • 3
    3T5-02245-0 Gasket, Air Box Cover
    Gasket, Air Box Cover
  • 3
    3B7-02236-0 O???? b
    , Fuel Filter, Oil Filter
    O???? b
    , Fuel Filter, Oil Filter
  • 3
    3C8-02305-1 Gasket exhaust cover
    Gasket exhaust cover
  • 3C8-02305-2 Gasket exhaust cover
    Gasket exhaust cover
  • 3
    3T5-87121-3 Power Head Gasket Set
    Power Head Gasket Set
  • 3T5-87121-6 Power Head Gasket Set
    Power Head Gasket Set
  • 3
    3C8-01303-1 Base gasket
    Base gasket
  • 3C8-01303-4 Base gasket
    Base gasket
  • 3
    353-00108-0 O-Ring
    , Crankshaft (Upper)
    O-Ring
    , Crankshaft (Upper)
  • 3
    3T5-01005-0 Gasket,Cylinder Head
    Gasket,Cylinder Head
  • 3
    3C8-01215-0 Oil Seal 16-28-7
    , Drive Shaft
    Oil Seal 16-28-7
    , Drive Shaft
  • 3
    3T5-01024-0 Gasket,head Cover
    Gasket,head Cover
  • 3
    3T5-00122-0 Oil Seal, 25-40-8
    , Crankshaft (Lower)
    Oil Seal, 25-40-8
    , Crankshaft (Lower)
  • 3
    3T5-01032-0 Gasket, Thermostat Cap
    Gasket, Thermostat Cap
  • 3
    346-01216-0 O-Ring
    , Crank Case Head
    O-Ring
    , Crank Case Head
  • 3
    3T5-02104-1 Gasket inlet manifold
    Gasket inlet manifold
  • 3T5-02104-2 Gasket inlet manifold
    Gasket inlet manifold
  • 3
    3B7-02235-0 O-Ring A
    , Fuel Filter, Oil Filter
    O-Ring A
    , Fuel Filter, Oil Filter
  • 4
    3T5Q63003-0 Tiller handle assy d40/50b
    Tiller handle assy d40/50b
  • 5
    3T5Q87301-3 Lower unit assy s (amb)
    for Transom S""
    Lower unit assy s (amb)
    for Transom S""
  • 3T5Q87301-1 Lower unit assy s (amb)
    Lower unit assy s (amb)
  • 5
    3T5Q87302-3 Lower unit assy l (amb)
    for Transom L""
    Lower unit assy l (amb)
    for Transom L""
  • 3T5Q87302-4 Lower unit assy l (amb)
    Lower unit assy l (amb)
  • 5
    3T5Q87304-3 Lower unit assy ul (amb)
    for Transom UL""
    Lower unit assy ul (amb)
    for Transom UL""
  • 6
    3C8Q60100-0 Prop shaft housing assy (amb)
    Prop shaft housing assy (amb)
  • 7
    3C8-65029-1 Gasket
    Gasket
  • 3C8-65029-2 Gasket
    Gasket
  • 7
    3T5-87322-1 Water pump repair kit
    Water pump repair kit
  • 7
    3C8-65021-2 Impeller water pump
    Impeller water pump
  • 7
    332-65022-0 Key, pump impeller
    Key, pump impeller
  • 7
    3T5-65011-0 Liner, Water Pump Case
    Liner, Water Pump Case
  • 7
    3C7-65018-0 Seal Water Pump Case
    Seal Water Pump Case
  • 7
    3C8-65025-0 GUIDE PLATE,PUMP
    GUIDE PLATE,PUMP
  • 8
    345-60103-0 O-Ring
    , Propeller Shaft
    O-Ring
    , Propeller Shaft
  • 8
    3B7-60016-1 Gasket, 10.1-15-1
    Gasket, 10.1-15-1
  • 8
    3C8-60223-0 Packing 17-33-6
    , Drive Shaft
    Packing 17-33-6
    , Drive Shaft
  • 8
    3T9-87321-0 Lower Unit Gasket Set
    Lower Unit Gasket Set
  • 8
    334-60223-0 Oil seal, 22-36-10
    , Propeller Shaft
    Oil seal, 22-36-10
    , Propeller Shaft
  • 8
    3B7-61012-0 New part
    New part
  • 8
    345-65015-0 O-Ring
    , Pump Case (Lower)
    O-Ring
    , Pump Case (Lower)
  • 8
    3C8-02312-0 Gasket exhaust pipe
    Gasket exhaust pipe
  • 8
    332-66021-0 O-Ring
    , Cam Rod
    O-Ring
    , Cam Rod
  • 8
    3C8-61181-1 Exhaust Housing Gasket
    Exhaust Housing Gasket
  • 3C8-61181-2 Exhaust Housing Gasket
    Exhaust Housing Gasket
  • 8
    3C8-66032-0 O-Ring
    , Cam Rod Bushing
    O-Ring
    , Cam Rod Bushing
  • 8
    332-60006-0 Gasket (8.1x15.1)
    Gasket (8.1x15.1)
  • 9
    3C8Q60090-0 Gear case ul (amb)
    Gear case ul (amb)
  • 9
    3C8Q87314-0 Extension housing kit (amb)
    Extension housing kit (amb)
  • 3C8Q87314-1 Extension housing kit (amb)
    Extension housing kit (amb)
  • 9
    3C8-64303-0 Drive Shaft UL
    Drive Shaft UL
  • 9
    3C8Q61110-0 Extension housing xl (amb)
    Extension housing xl (amb)
  • 9
    3C8-66014-0 Cam Rod UL
    Cam Rod UL
  • 9
    346-66037-0 Holder Cam Rod
    Holder Cam Rod
  • 9
    3C8-65120-0 Water Pipe UL
    Water Pipe UL
  • 9
    353-66024-0 Stopper
    Stopper
  • 9
    951407-0312 Spring Washer
    , Clutch Cam & Bushing
    Spring Washer
    , Clutch Cam & Bushing
  • 9
    910103-6612 Bolt
    Bolt
  • 9
    951403-0312 Spring Washer
    , Shift Rod Joint
    Spring Washer
    , Shift Rod Joint
  • 9
    346-65204-0 Lock Rubber Water Pipe
    Lock Rubber Water Pipe
  • 10
    3T5Q84540-1 Binnacle mount control box kit dual 40/50/70/90 tldi (amb)
    for Twin N.A.F.N.
    Binnacle mount control box kit dual 40/50/70/90 tldi (amb)
    for Twin N.A.F.N.
