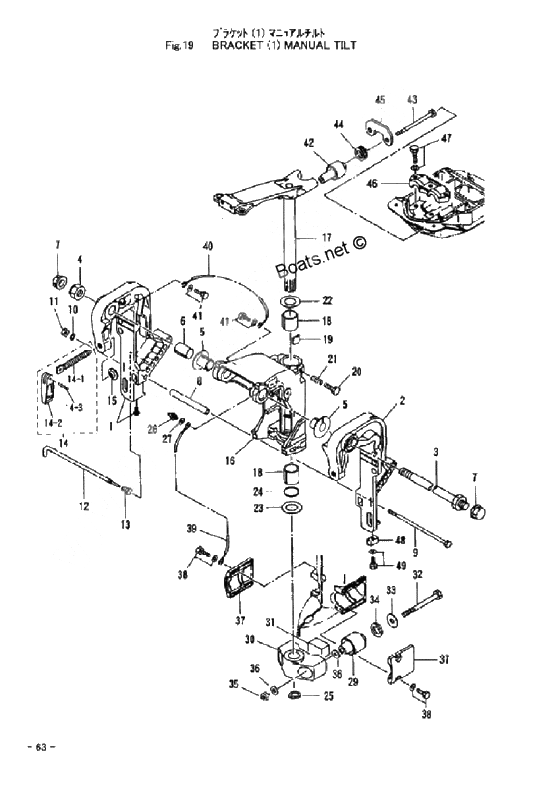

Bracket (1) (manual tilt) для Tohatsu MD50B - 2006 года выпуска`

№

Артикул

Название
1

3C8Q62112-0 Stern bracket right (amb)
Stern Bracket (Right) Starboard

Stern bracket right (amb)
Stern Bracket (Right) Starboard

12 980 ₽
2

3C8Q62113-0 Stern bracket left (amb)
Stern Bracket (Left) Port

Stern bracket left (amb)
Stern Bracket (Left) Port

12 980 ₽
3

3AC-62191-0 Swivel bracket bolt
Bracket Bolt or 346-62191-0

Swivel bracket bolt
Bracket Bolt or 346-62191-0

4 420 ₽
4

346-62124-1 Bracket nut

Bracket nut

1 630 ₽
5

349-62126-0 Bushing, Bracket Bolt

Bushing, Bracket Bolt

1 110 ₽
6

3C8-62132-0 Bushing

Bushing

770 ₽
7

346-62127-0 Cap,Bracket Bolt
for F" Type"

Cap,Bracket Bolt
for F" Type"

200 ₽
8

3C8-62117-1 Distance Piece

Distance Piece

1 890 ₽
9

3C8-62120-1 Bolt 8-170

Bolt 8-170

950 ₽
12

3C8-62121-1 Thrust Rod

Thrust Rod

4 500 ₽
13

345-62122-2 Spring Thrust Rod

Spring Thrust Rod

540 ₽
14

3C8Q62100-1 Clamp screw assy (amb)

Clamp screw assy (amb)

2 740 ₽
14-1

3E3-62103-0 Винт струбцины

Винт струбцины

1 130 ₽
14-2

332Q62102-1 Handle clamp screw

Handle clamp screw

990 ₽
14-3

3C8-62104-1 Rivet3-22

Rivet3-22

120 ₽
15

332-62101-0 Pad clamp screw

Pad clamp screw

1 230 ₽
16

3C8Q62310-2 Swivel bracket (amb)

Swivel bracket (amb)

22 610 ₽
17

3C8Q62010-2 Steering shaft assy (amb)

Steering shaft assy (amb)

33 850 ₽
18

345-62417-0 Bushing Steering Shaft

Bushing Steering Shaft

1 080 ₽
19

345-62441-0 Friction Plate

Friction Plate

1 080 ₽
21

346-62421-1 Spring Friction Plate

Spring Friction Plate

340 ₽
22

3A0-62423-2 Upper Thrust Plate

Upper Thrust Plate

320 ₽
23

346-62424-1 Trust Plate Lower

Trust Plate Lower

890 ₽
24

345-62415-0 O-Ring

O-Ring

330 ₽
25

945103-2500 Clip

Clip

200 ₽
26

344-67177-0 Масленка

Масленка

210 ₽
27

940113-0600 Washer

Washer

140 ₽
29

3C8-61302-0 Lower Mount Rubber

Lower Mount Rubber

3 330 ₽
30

3C8Q61411-2 Mount bracket (amb)

Mount bracket (amb)

9 720 ₽
31

3C8-61336-0 Damper Rubber

Damper Rubber

450 ₽
32

3C8-61321-1 Bolt Lower Mount Rubber

Bolt Lower Mount Rubber

1 090 ₽
33

353-61334-0 Washer

Washer

860 ₽
34

3C7-61338-0 Damper Rubber

Damper Rubber

960 ₽
35

930403-1200 Nylon Nut

Nylon Nut

500 ₽
37

3C8Q61342-0 Mount holding plate lower (amb)
Rubber Mount Cap (Lower)

Mount holding plate lower (amb)
Rubber Mount Cap (Lower)

1 840 ₽
39

3C8-62396-1 Ground Wire
L=210

Ground Wire
L=210

550 ₽
40

398-62396-1 Ground Wire
L=310

Ground Wire
L=310

610 ₽
42

3E3-61301-1 Upper Mount Robber

Upper Mount Robber

2 330 ₽
43

353-61307-0 Bolt mount rubber upper

Bolt mount rubber upper

870 ₽
44

3E3-61333-0 Upper Damper Rubber

Upper Damper Rubber

830 ₽
45

3E3-61335-0 Upper Lock Plate

Upper Lock Plate

420 ₽
46

3C8Q61341-0 Mount holding plate upper (amb)
Rubber Mount Cap (Upper)

Mount holding plate upper (amb)
Rubber Mount Cap (Upper)

2 550 ₽
48

3B7-60218-1 Anode

Anode

1 380 ₽
