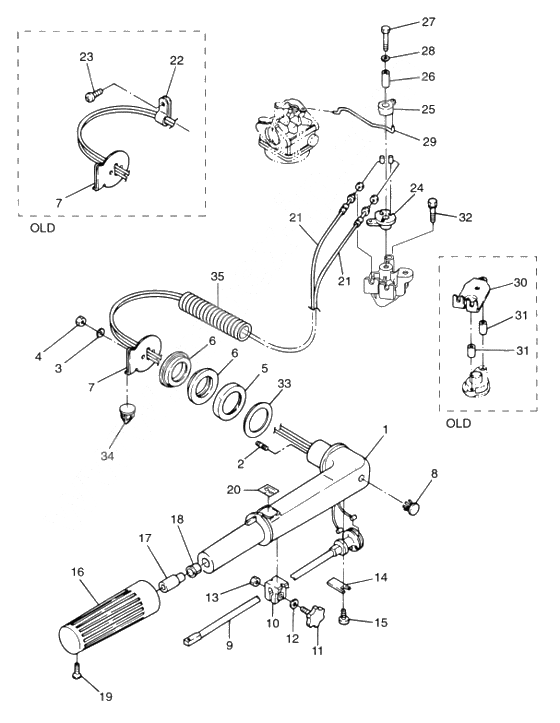

Tiller handle & throttle для Tohatsu MFS5B - 2005 года выпуска`
-
№АртикулНазвание
-
13H6Q63011-0 Tiller handle (amb)Tiller handle (amb)
-
23B2-63104-1 Stud BoltStud Bolt
-
3941303-0600 New partNew part
-
4930113-0600 Nut
OR 930103-0600Nut
OR 930103-0600 -
53H6-63026-0 Spacer, HandleSpacer, Handle
-
63H6-63102-0 Bushing, Steering HandleBushing, Steering Handle
-
73H6-63103-0 Stopper,steering handleStopper,steering handle
-
8350-67154-0 New partNew part
-
93B2-63041-0 Throttle ShaftThrottle Shaft
-
103B2-63035-1 Friction Piece GripFriction Piece Grip
-
113B2-63034-0 Adjust ScrewAdjust Screw
-
12940113-0600 Washer
OR 940103-0600Washer
OR 940103-0600 -
13930113-0600 Nut
OR 930103-0600Nut
OR 930103-0600 -
143B2-63063-0 Supporter Throttle ShaftSupporter Throttle Shaft
-
15921513-0612 Stud Bolt
OR 921503-0612Stud Bolt
OR 921503-0612 -
16369-63012-1 GripGrip
-
173H6-63048-0 Rubber, Shrottle ShaftRubber, Shrottle Shaft
-
183H6-63510-0 Bushing
OLD PART NO. 3H6-63506-0Bushing
OLD PART NO. 3H6-63506-0 -
19920813-0518 Screw
OR 920803-0518Screw
OR 920803-0518 -
20369-72019-1 Lable throttleLable throttle
-
213H6-63600-1 Throttle Wire
OUTER L=476 #016455XC~Throttle Wire
OUTER L=476 #016455XC~ -
213H6-63600-0 Throttle Wire
OUTERL=526 ~#012402XCThrottle Wire
OUTERL=526 ~#012402XC -
22345-06915-0 Clamp 6.5-14
~#012402XCClamp 6.5-14
~#012402XC -
23921513-0612 Stud Bolt
~#012402XCStud Bolt
~#012402XC -
243H6-63611-0 Throttel DrumThrottel Drum
-
253H6-63612-0 Throttle OpenerThrottle Opener
-
263H6-63618-0 Collar, drumCollar, drum
-
27910103-6635 BoltBolt
-
283R0-66308-0 Washer
OR 3C8-66308-0Washer
OR 3C8-66308-0 -
293H6-63617-0 Throttle RodThrottle Rod
-
303H6-63615-0 Bracket, throttel wire
6A2~#03505 5A2~#21291 4A2~#12517Bracket, throttel wire
6A2~#03505 5A2~#21291 4A2~#12517 -
313H6-63619-1 Collar, Bracket
6A2~#03505 5A2~#21291 4A2~#12517Collar, Bracket
6A2~#03505 5A2~#21291 4A2~#12517 -
32910103-6645 BoltBolt
-
333B2-63108-0 WasherWasher
-
343H6-67154-0 Anchor clip 6.5Anchor clip 6.5
-
353H6-06133-0 Protector,wire Harness
#016455XC~Protector,wire Harness
#016455XC~
