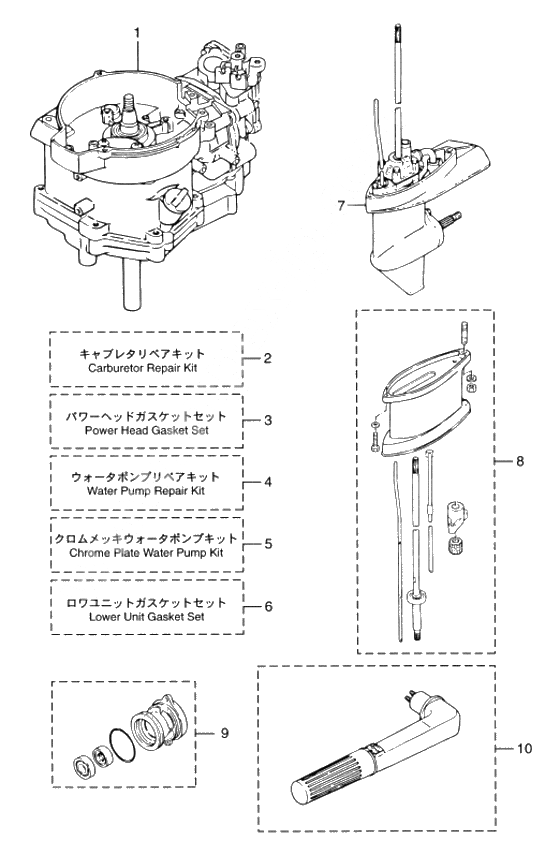

Assembly kits для Tohatsu MFS5B - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    3ASB87100-1 Short block kit (4/5/6b/4-str-amb)
    #023742XE~ F6B/5B/4B
    Short block kit (4/5/6b/4-str-amb)
    #023742XE~ F6B/5B/4B
  • 3ASB87090-6 Short block kit (4/5/6b/4-str-amb)
    Short block kit (4/5/6b/4-str-amb)
  • 1
    3R4B87100-0 Engine short block
    ~#20184XE ~F6A2/5A2/4A2
    Engine short block
    ~#20184XE ~F6A2/5A2/4A2
  • 2
    3H6-87122-0 Carburetor Rerair Kit
    Carburetor Rerair Kit
  • 2
    3H6-03231-0 Float
    Float
  • 2
    3H6-03240-0 Float Valve
    Float Valve
  • 2
    3H6-03244-0 Clip
    Clip
  • 2
    3H6-03232-0 Aym Pin, Float
    Aym Pin, Float
  • 2
    3H6-03222-0 Gasket,float Chamber
    Gasket,float Chamber
  • 2
    922503-6412 Stud Bolt
    Stud Bolt
  • 2
    3H6-03293-0 O-ring,drain Screw
    O-ring,drain Screw
  • 3
    3AS-87121-0 Power head gasket set 4b/5b/6b
    #023742XE~ F6B/5B/4B~
    Power head gasket set 4b/5b/6b
    #023742XE~ F6B/5B/4B~
  • 3
    3R2-87121-0 Power head gasket set 4a/5a/6a
    OLD #042037XD~020184XE
    Power head gasket set 4a/5a/6a
    OLD #042037XD~020184XE
  • 3R1-87121-0 Power head gasket set 4a/5a/6a
    Power head gasket set 4a/5a/6a
  • 3
    3H6-01005-1 Gasket, Cyl. Head
    Gasket, Cyl. Head
  • 3
    3H6-02306-0 Gasket,exh.port
    Gasket,exh.port
  • 3
    3H6-01024-0 Gasket,head Cover
    Gasket,head Cover
  • 3
    346-01032-0 New part
    New part
  • 3
    3AS-07432-0 Gasket breather cap
    Gasket breather cap
  • 3
    3H6-07422-0 New part
    FILLER CAP & FUEL PUMP
    New part
    FILLER CAP & FUEL PUMP
  • 3
    101-00121-0 Oil seal,20-35-7
    UPPER
    Oil seal,20-35-7
    UPPER
  • 3
    3H6-03293-0 O-ring,drain Screw
    O-ring,drain Screw
  • 3
    3H6-02011-0 Gasket, carburetor
    Gasket, carburetor
  • 3
    3H6-02104-0 O-Ring
    INTAKE MANIFOLD
    O-Ring
    INTAKE MANIFOLD
  • 3
    334-00122-0 Oil seal 25-40-8
    LOWER
    Oil seal 25-40-8
    LOWER
  • 3
    3H6-07402-0 Gasket, Oil Pan
    Gasket, Oil Pan
  • 3
    3H6-02305-0 Gasket, Exh.plate
    Gasket, Exh.plate
  • 3
    3R1-07605-0 O-ring Oil Pump
    O-ring Oil Pump
  • 3
    345-66021-0 O-Ring
    PLUNGER
    O-Ring
    PLUNGER
  • 3
    369-01215-0 Oil Seal
    DRIVE SHAFT
    Oil Seal
    DRIVE SHAFT
  • 3
    369-01214-0 Gasket Crank Case Head
    Gasket Crank Case Head
  • 3
    3H6-61012-0 Gasket,Drive Shaft Housing
    Gasket,Drive Shaft Housing
  • 4
    369-87322-1 New part
    New part
  • 4
    369-65021-1 Крыльчатка водной помпы
    Крыльчатка водной помпы
  • 4
    369-65022-0 Key water pump impeller
    Key water pump impeller
  • 4
    369-65011-0 Liner Water Pump Case
    Liner Water Pump Case
  • 4
    369-65018-0 Gasket water pump case
    Gasket water pump case
  • 4
    369-65025-0 Guide Plate Water Pump
    Guide Plate Water Pump
  • 4
    369-65029-0 Gasket Pump Guide Plate
    Gasket Pump Guide Plate
  • 4
    369-65020-0 Gasket Water Pump Case Lower
    Gasket Water Pump Case Lower
  • 4
    916113-0645 Bolt
    OR 910103-0645
    Bolt
    OR 910103-0645
  • 4
    940113-0600 Washer
    Washer
  • 5
    369-65231-0 Chrome Plated Water Pump Kit
    Chrome Plated Water Pump Kit
  • 5
    369-65021-1 Крыльчатка водной помпы
    Крыльчатка водной помпы
  • 5
    369-65238-0 Liner chrome plated water pump case
    Liner chrome plated water pump case
  • 5
    369-65239-0 Guide plate chrome plated water pump
    Guide plate chrome plated water pump
  • 5
    369-65018-0 Gasket water pump case
    Gasket water pump case
  • 5
    369-65029-0 Gasket Pump Guide Plate
    Gasket Pump Guide Plate
  • 6
    369-87321-0 Lower Unit Gasket Set
    Lower Unit Gasket Set
  • 6
    332-60006-0 Gasket (8.1x15.1)
    Gasket (8.1x15.1)
  • 6
    369-60111-0 Oil Seal
    PROPELLER SHAFT
    Oil Seal
    PROPELLER SHAFT
  • 6
    345-65015-0 O-Ring
    PROPELLER SHAFT
    O-Ring
    PROPELLER SHAFT
  • 6
    369-65018-0 Gasket water pump case
    Gasket water pump case
  • 6
    369-65029-0 Gasket Pump Guide Plate
    Gasket Pump Guide Plate
  • 6
    369-60223-0 Oil Seal
    PUMP CASE (LOWER)
    Oil Seal
    PUMP CASE (LOWER)
  • 6
    369-65020-0 Gasket Water Pump Case Lower
    Gasket Water Pump Case Lower
  • 6
    369-66021-1 O?????2.5-4.9
    CAM ROD
    O?????2.5-4.9
    CAM ROD
  • 6
    332-66032-0 O?????2.4-15.4
    BUSHING
    O?????2.4-15.4
    BUSHING
  • 7
    369Q87301-2 Lower unit s (amb)
    FOR TRANSOM S
    Lower unit s (amb)
    FOR TRANSOM S
  • 369Q87301-4 Lower unit s (amb)
    Lower unit s (amb)
  • 7
    369Q87302-2 Lower unit l (amb)
    FOR TRANSOM L
    Lower unit l (amb)
    FOR TRANSOM L
  • 369Q87302-3 Lower unit l (amb)
    Lower unit l (amb)
  • 8
    3ASQ87314-0 Extension housing kit ul (amb)
    Extension housing kit ul (amb)
  • 8
    369Q61110-1 Extension housing ul (amb)
    Extension housing ul (amb)
  • 8
    916113-0625 Bolt
    Bolt
  • 8
    940113-0600 Washer
    Washer
  • 8
    915213-0825 Stud Bolt
    Stud Bolt
  • 8
    930113-0800 Nut
    Nut
  • 8
    940113-0800 Washer
    Washer
  • 8
    3AS-64331-0 Drive shaft bushing assy (amb)
    Drive shaft bushing assy (amb)
  • 8
    369-64303-0 Drive Shaft UL
    Drive Shaft UL
  • 8
    369-66014-0 Cam Rod UL
    Cam Rod UL
  • 8
    369-65120-0 Water Pipe UL
    Water Pipe UL
  • 9
    369Q87323-1 Propeller shaft housing assy (amb)
    Propeller shaft housing assy (amb)
  • 10
    3H6Q63010-0 Tiller handle sub-assy (amb)
    Tiller handle sub-assy (amb)
  • 3ASQ63005-0 Tiller handle sub-assy (amb)
    Tiller handle sub-assy (amb)
