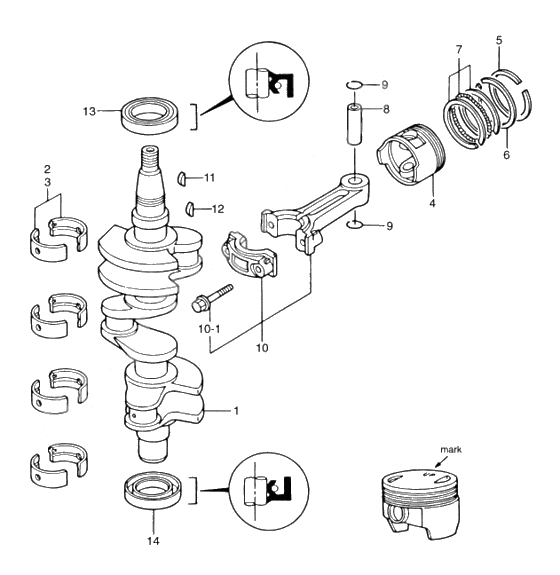

Piston & crank shaft для Tohatsu MFS25B - 2005 года выпуска`
-
№АртикулНазвание
-
13R0-00030-1 Вал коленчатыйВал коленчатый
-
23AE-07407-0 Bearing (red)Bearing (red)
-
33AE-07408-0 Bearing (blue)Bearing (blue)
-
43AC-00001-0 PistonPiston
-
53AC-00011-0 Top ringTop ring
-
63AC-00012-0 2-nd ring2-nd ring
-
73AC-00013-0 3-d ring3-d ring
-
83H6-00021-0 Палец поршняПалец поршня
-
93H6-00024-0 Clip, Piston PinClip, Piston Pin
-
103R0-00040-0 Conncting Rod Ass'yConncting Rod Ass'y
-
10-13H6-00059-0 Bolt, Connecting RodBolt, Connecting Rod
-
11334-00131-0 Key MagnetoKey Magneto
-
123T5-10131-0 Key, Drive Pulley
TIMING PULLEYKey, Drive Pulley
TIMING PULLEY -
133R0-00122-0 Oil Seal,38-50-8
UPPEROil Seal,38-50-8
UPPER -
143R0-00121-0 Oil Seal.30-50-8
LOWEROil Seal.30-50-8
LOWER
