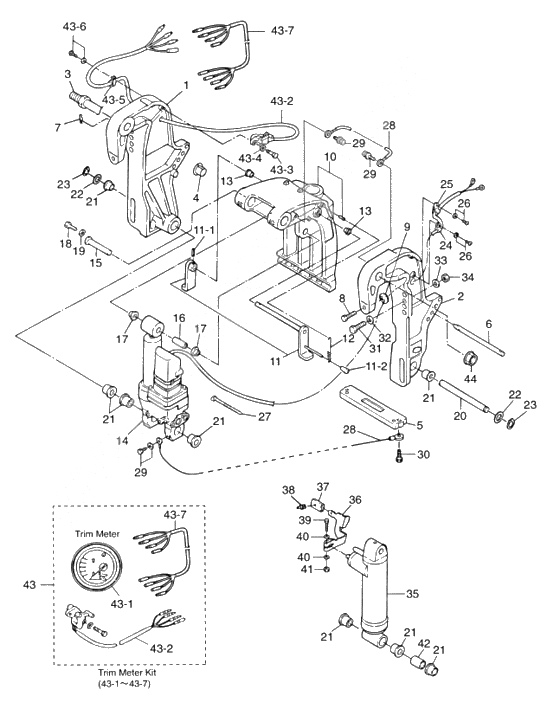

Bracket ptt & gas assist для Tohatsu MFS25B - 2005 года выпуска`
-
№АртикулНазвание
-
13AEQ77211-0 Clamp bracket right (ptt)
STERN BRACKET (RIGHT) PTT TYPE ONLYClamp bracket right (ptt)
STERN BRACKET (RIGHT) PTT TYPE ONLY -
13AFQ77211-0 Clamp bracket (right) gas assist type
STERN BRACKET (RIGHT) GAS ASSIST TYPE ONLYClamp bracket (right) gas assist type
STERN BRACKET (RIGHT) GAS ASSIST TYPE ONLY -
23AEQ77212-0 Clamp bracket left (ptt)
STERN BRACKET (LEFT) PTT TYPE ONLYClamp bracket left (ptt)
STERN BRACKET (LEFT) PTT TYPE ONLY -
23AFQ77212-0 Clamp bracket (left) gas assist type
STERN BRACKET (LEFT) GAS ASSIST TYPE ONLYClamp bracket (left) gas assist type
STERN BRACKET (LEFT) GAS ASSIST TYPE ONLY -
33AD-62191-0 Swivel bracket bolt (ptt)
BRACKET BOLTSwivel bracket bolt (ptt)
BRACKET BOLT -
43C8-77213-0 Bushing Bracket BoltBushing Bracket Bolt
-
53C7-60218-2 Anode, Stern BracketAnode, Stern Bracket
-
63R0-77118-0 Thrust RodThrust Rod
-
7951603-1000 R-PinR-Pin
-
83C8-77214-0 Винт струбциныВинт струбцины
-
9332-62101-0 Pad clamp screwPad clamp screw
-
103ACQ77208-0 Swivel bracket (ptt)
WITH PINSwivel bracket (ptt)
WITH PIN -
113Z5Q62470-1 Tilt stopper (ptt type)Tilt stopper (ptt type)
-
3GF-62466-1 Tilt stopper (ptt type)Tilt stopper (ptt type)
-
113R0Q62470-0 Tilt stopper assy.Tilt stopper assy.
-
3AC-62466-1 Tilt stopper assy.Tilt stopper assy.
-
11-1951403-3516 New partNew part
-
11-2369-62433-1 Grip Tilt StopperGrip Tilt Stopper
-
123R0-62473-0 Spring,Tilt StopperSpring,Tilt Stopper
-
13353-63207-0 Collar 10.2-12-12Collar 10.2-12-12
-
143ACQ77151-0 Power trim & tilt assy
SEE FIG. 21Power trim & tilt assy
SEE FIG. 21 -
3AC-77151-1 Power trim & tilt assyPower trim & tilt assy
-
153R0-77071-0 Upper,Cylinder PinUpper,Cylinder Pin
-
163R0-77075-0 BushingBushing
-
173R0-77076-0 BushingBushing
-
18910113-0612 BoltBolt
-
19345-05122-0 New partNew part
-
203R0-77101-0 Lower,Cylinder PinLower,Cylinder Pin
-
213C8-77076-1 New part
6 FOR GAS ASSIST TYPENew part
6 FOR GAS ASSIST TYPE -
223R0-77112-0 WasherWasher
-
23945103-1800 C-RingC-Ring
-
243AC-06973-0 ClampClamp
-
336-06973-0 ClampClamp
-
25345-06915-0 Clamp 6.5-14Clamp 6.5-14
-
26921513-5612 ScrewScrew
-
271H2-31534-0 Lead wire band-local purchaseLead wire band-local purchase
-
28398-62396-1 Ground Wire
L=130Ground Wire
L=130 -
29910103-5612 BoltBolt
-
30910103-5630 BoltBolt
-
313C7-62133-2 Bolt
L=105Bolt
L=105 -
32353-61334-0 WasherWasher
-
33940113-1200 WasherWasher
-
343C7-62139-1 Nut,P1.25Nut,P1.25
-
353R0Q77601-0 Gas shock absorber
GAS ASSIST TYPE ONLYGas shock absorber
GAS ASSIST TYPE ONLY -
3R0Q77601-2 Gas shock absorberGas shock absorber
-
363R0-66311-0 Rever, Revers Lock
GAS ASSIST TYPE ONLYRever, Revers Lock
GAS ASSIST TYPE ONLY -
373AL-66333-0 Lock lever grip
GAS ASSIST TYPE ONLYLock lever grip
GAS ASSIST TYPE ONLY -
38346-66334-0 Stopper
GAS ASSIST TYPE ONLYStopper
GAS ASSIST TYPE ONLY -
39910114-0635 New part
GAS ASSIST TYPE ONLYNew part
GAS ASSIST TYPE ONLY -
40940113-0600 Washer
GAS ASSIST TYPE ONLYWasher
GAS ASSIST TYPE ONLY -
41930113-0600 Nut
GAS ASSIST TYPE ONLYNut
GAS ASSIST TYPE ONLY -
423R0-77105-0 Втулка тяги КПП
GAS ASSIST TYPE ONLYВтулка тяги КПП
GAS ASSIST TYPE ONLY -
433R0-72525-1 Trim meter kit-25/30b - no longer available
OPTIONTrim meter kit-25/30b - no longer available
OPTION -
43-13E0-72571-0 Trim meter ass'y
OPTIONTrim meter ass'y
OPTION -
43-23Z5-72574-0 Trim sensor (4-wire) - short - nla
L=1700 OPTION TRIM SENDERTrim sensor (4-wire) - short - nla
L=1700 OPTION TRIM SENDER -
43-23Z4-72574-0 Trim sensor (2-wire)Trim sensor (2-wire)
-
43-3910113-0620 Bolt
OPTIONBolt
OPTION -
43-43R0-66308-0 Washer
OPTIONWasher
OPTION -
43-5336-06973-0 Clamp Lead Wire
OPTIONClamp Lead Wire
OPTION -
43-6921513-5612 Screw
OPTIONScrew
OPTION -
43-73F3-72573-1 Extension cord trim sender
L=6000 OPTIONExtension cord trim sender
L=6000 OPTION -
43-73T1-72573-0 Extension cord trim (2-wire) 6m
L=6000 OPTIONExtension cord trim (2-wire) 6m
L=6000 OPTION -
44346-62124-1 Bracket nutBracket nut
