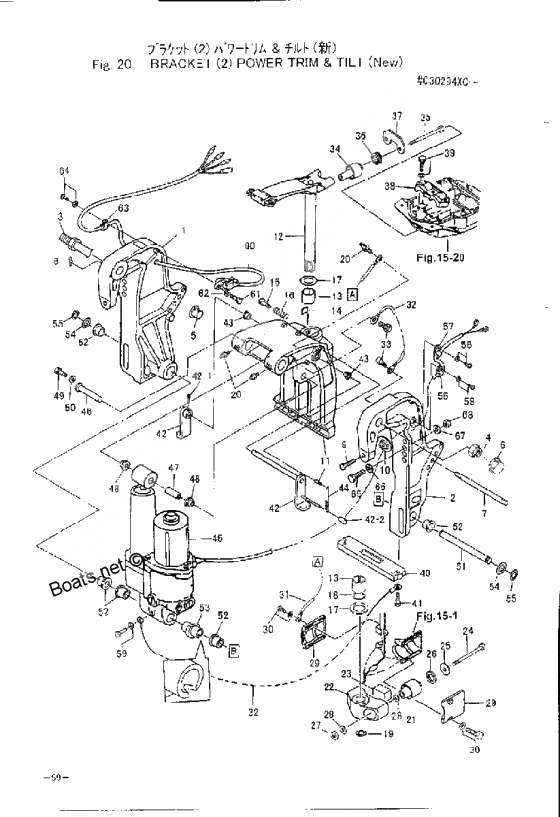

Bracket (2) power trim & tilt (new) для Tohatsu M40D2 - 2005 года выпуска`
-
№АртикулНазвание
-
13Z5S77211-0 Stern bracket r
StarboardStern bracket r
Starboard -
23Z5S77212-0 Stern bracket l
PortStern bracket l
Port -
33Z5-62191-0 Bracket boltBracket bolt
-
4346-62124-0 Bracket Nut(Nylon)Bracket Nut(Nylon)
-
53C8-77213-0 Bushing Bracket BoltBushing Bracket Bolt
-
6346-62127-0 Cap,Bracket Bolt
for F" type"Cap,Bracket Bolt
for F" type" -
73R0-77118-0 Thrust RodThrust Rod
-
8951603-1000 R-PinR-Pin
-
93C8-77214-0 Винт струбциныВинт струбцины
-
10332-62101-0 Pad clamp screwPad clamp screw
-
113Z5S77215-0 Seivel bracket,ppower torim & tiltSeivel bracket,ppower torim & tilt
-
123Z5S62010-0 Steering shaft ass'ySteering shaft ass'y
-
13353-62417-0 BushingBushing
-
14345-62441-0 Friction PlateFriction Plate
-
16346-62421-1 Spring Friction PlateSpring Friction Plate
-
17353-62423-1 Thrust PlateThrust Plate
-
18353-62415-0 O-RingO-Ring
-
20344-67177-0 МасленкаМасленка
-
213C8-61302-0 Lower Mount RubberLower Mount Rubber
-
223Z5S61411-0 Mount bracketMount bracket
-
233C8-61336-0 Damper RubberDamper Rubber
-
243C8-61321-1 Bolt Lower Mount RubberBolt Lower Mount Rubber
-
25353-61334-0 WasherWasher
-
263C7-61338-0 Damper RubberDamper Rubber
-
27930403-1200 Nylon NutNylon Nut
-
293C8S61342-0 Cap lower mount rubberCap lower mount rubber
-
313C8-62396-0 Ground Wire
L=210Ground Wire
L=210 -
323C8-62158-0 Ground Wire
L=130Ground Wire
L=130 -
33910113-5612 BoltBolt
-
343E3-61301-1 Upper Mount RobberUpper Mount Robber
-
35353-61307-0 Bolt mount rubber upperBolt mount rubber upper
-
363E3-61333-0 Upper Damper RubberUpper Damper Rubber
-
373E3-61335-0 Upper Lock PlateUpper Lock Plate
-
383C8S61341-0 Cap upper mount rubberCap upper mount rubber
-
403C7-60218-2 Anode, Stern BracketAnode, Stern Bracket
-
41910103-6630 BoltBolt
-
423Z5S62470-0 Tilt stopper (ptt type)Tilt stopper (ptt type)
-
3GF-62466-1 Tilt stopper (ptt type)Tilt stopper (ptt type)
-
42-1951403-3516 New partNew part
-
42-2369-62433-1 Grip Tilt StopperGrip Tilt Stopper
-
43353-63207-0 Collar 10.2-12-12Collar 10.2-12-12
-
443R0-62473-0 Spring,Tilt StopperSpring,Tilt Stopper
-
453E5S77150-0 Power trim & tilt ass'yPower trim & tilt ass'y
-
463R0-77071-0 Upper,Cylinder PinUpper,Cylinder Pin
-
473R0-77075-0 BushingBushing
-
483R0-77076-0 BushingBushing
-
50345-05122-0 New partNew part
-
513R0-77101-0 Lower,Cylinder PinLower,Cylinder Pin
-
523C8-77076-1 New partNew part
-
533Z5-77103-0 BushingBushing
-
543R0-77112-0 WasherWasher
-
55945103-1800 C-RingC-Ring
-
56336-06973-0 Clamp Lead WireClamp Lead Wire
-
57345-06915-0 Clamp 6.5-14Clamp 6.5-14
-
58921503-5612 Stud BoltStud Bolt
-
603B7-72574-0 Trim sender
L=6000 for P" type"Trim sender
L=6000 for P" type" -
623C8-66308-0 New part
L=6000 for P" type"New part
L=6000 for P" type" -
653C7-62133-2 Bolt
L=105Bolt
L=105 -
67940113-1200 Washer
or 940103-1200Washer
or 940103-1200 -
683C7-62139-1 Nut,P1.25Nut,P1.25
