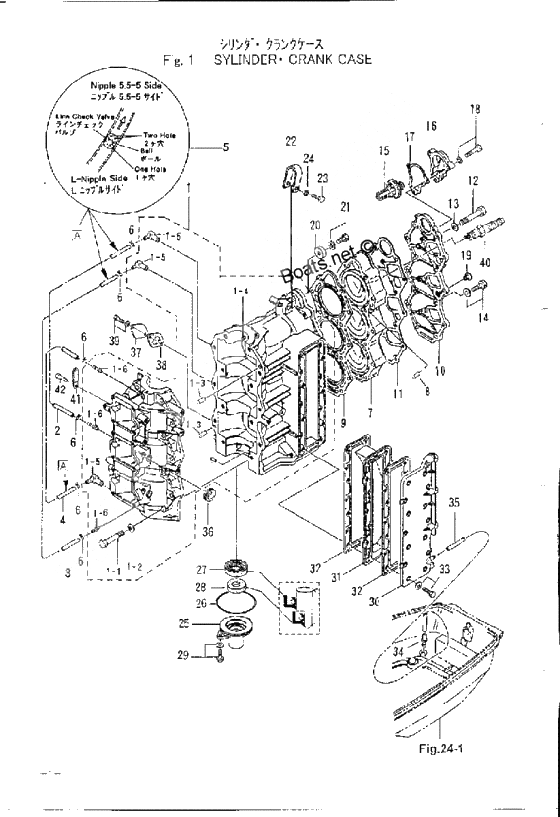

Cylinder,crank case для Tohatsu M40D2 - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    916124-0845 Bolt
    Bolt
  • 2
    98AL-4-0205 Lube pipe (1 ea.=1m) must use 393011600m check valve
    40D2#47846-
    Lube pipe (1 ea.=1m) must use 393011600m check valve
    40D2#47846-
  • 98AL-4-1000 Lube pipe (1 ea.=1m) must use 393011600m check valve
    Lube pipe (1 ea.=1m) must use 393011600m check valve
  • 2
    940121-0800 Washer
    Washer
  • 3
    345-01111-0 Dowel Pin 6-12
    Dowel Pin 6-12
  • 4
    345-00117-0 Dowel Pin
    Dowel Pin
  • 5
    393-01137-0 Drain nipple
    50D2#63492-
    Drain nipple
    50D2#63492-
  • 5
    3B2-01160-0 Check valve nipple assy
    50D2#63492-
    Check valve nipple assy
    50D2#63492-
  • 5
    393-01160-0 Check Valve
    40D2#47846-
    Check Valve
    40D2#47846-
  • 6
    393-01131-0 Drain nipple
    40D2#47846-
    Drain nipple
    40D2#47846-
  • 6
    3T5-01133-0 Clip
    40D2#47846-
    Clip
    40D2#47846-
  • 7
    3C8B01001-2 Головка цилиндров
    50D2#63492-
    Головка цилиндров
    50D2#63492-
  • 9
    3C8-01005-4 Прокладка под головку
    50D2#63492-
    Прокладка под головку
    50D2#63492-
  • 10
    3C8B01021-0 Cover cylinder head
    40D2#47846-
    Cover cylinder head
    40D2#47846-
  • 11
    3C8-01024-1 Gasket, cylinder head cover
    40D2#47846-
    Gasket, cylinder head cover
    40D2#47846-
  • 12
    916189-0865 Bolt
    Bolt
  • 13
    345-01015-0 Washer
    Washer
  • 14
    910121-5620 Bolt
    Bolt
  • 15
    353-01030-0 サーモスタット
    サーモスタット
  • 16
    353B01031-0 Cap thermostat
    Cap thermostat
  • 17
    353-01032-0 Прокладка крышки термостата
    Прокладка крышки термостата
  • 19
    3B7-01046-0 Plug
    Plug
  • 20
    338-60218-2 New part
    New part
  • 22
    3C8B01513-0 Hanger
    Hanger
  • 25
    3C8-01291-0 Lower Head Crank Case
    Lower Head Crank Case
  • 26
    346-01216-0 O-Ring
    O-Ring
  • 27
    334-00122-0 Oil seal 25-40-8
    Oil seal 25-40-8
  • 28
    3C8-01215-0 Oil Seal 16-28-7
    Oil Seal 16-28-7
  • 30
    3C8B02301-0 Exhaust cover outer
    Exhaust cover outer
  • 31
    3C8-02302-0 Exhaust Cover Inner
    Exhaust Cover Inner
  • 32
    3C8-02305-0 Прокладка крышки выхода
    Прокладка крышки выхода
  • 33
    910114-5625 Bolt
    Bolt
  • 34
    353-01138-0 Water Nipple
    Water Nipple
  • 36
    3B7-76093-0 Grommet, 25-5
    for E" type"
    Grommet, 25-5
    for E" type"
  • 37
    3C8-09081-1 Blind plate
    Premixing model
    Blind plate
    Premixing model
  • 38
    3C8-09082-0 Gasket blind plate
    Premixing model
    Gasket blind plate
    Premixing model
  • 39
    910103-6616 Bolt
    Premixing model
    Bolt
    Premixing model
  • 41
    309-06972-0 Clamp,6.5-47.5P
    Clamp,6.5-47.5P
