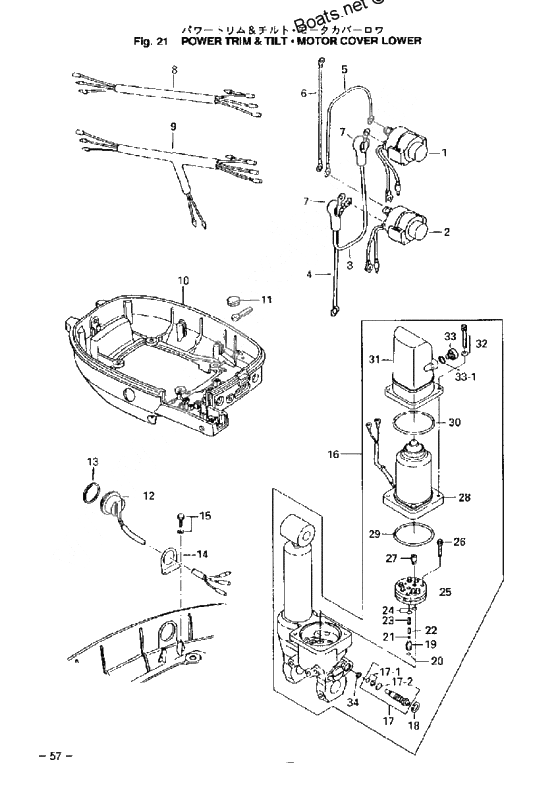

Power trim & tilt, motor cover lower для Tohatsu MFS25A - 2004 года выпуска`
-
№АртикулНазвание
-
13C8-72580-0 Solenoid switch a, ptt (up)
UPSolenoid switch a, ptt (up)
UP -
23C8-72581-0 Solenoid switch b, ptt (dn)
DOWNSolenoid switch b, ptt (dn)
DOWN -
33C7-72583-0 Cord B Solenoid Switch (L=150)
Length: 150Cord B Solenoid Switch (L=150)
Length: 150 -
43C7-72582-0 Cord b solenoid switch (l=220)
Length: 220Cord b solenoid switch (l=220)
Length: 220 -
53C8-72583-1 Cord B Solenoid Switch (L=130)
Length: 130Cord B Solenoid Switch (L=130)
Length: 130 -
63R0-72589-0 Cord d solenoide switch
Length: 220Cord d solenoide switch
Length: 220 -
73A3-76145-0 Cap Starter TerminalCap Starter Terminal
-
83R0-72568-0 Extension cord,ef/p-ttExtension cord,ef/p-tt
-
93R0-72569-0 Extension cord, ep p-t/tExtension cord, ep p-t/t
-
103S9S67100-0 Lower motor coverLower motor cover
-
11338-67163-0 Supporting Rubber Fuel PipeSupporting Rubber Fuel Pipe
-
123F3-72615-0 Ptt switch ass'yPtt switch ass'y
-
133F3-72616-1 Gasket Ptt Switch Ass'yGasket Ptt Switch Ass'y
-
143F3-72617-1 Bracket,PTT Switch Ass'yBracket,PTT Switch Ass'y
-
15910103-6614 BoltBolt
-
173R0-77175-0 Manual valve ass'yManual valve ass'y
-
17-13R0-77409-0 Seal SetSeal Set
-
17-23R0-77177-0 O-RingO-Ring
-
183R0-77171-0 C-RingC-Ring
-
193R0-77453-0 Valve SeatValve Seat
-
203R0-77451-0 O-RingO-Ring
-
213R0-77457-0 BallBall
-
223R0-77454-0 Spring WasherSpring Washer
-
233R0-77455-0 Spring WasherSpring Washer
-
243B7-77433-0 O-RingO-Ring
-
253R0-77430-0 PumpPump
-
263B7-77431-1 BoltBolt
-
273E0-77163-0 Coupling PumpCoupling Pump
-
283R0-77180-0 Motor Ass'yMotor Ass'y
-
293R0-77167-0 O-RingO-Ring
-
303C8-77182-0 O-RingO-Ring
-
313R0-77165-0 Reservoir TankReservoir Tank
-
323R0-77159-0 BoltBolt
-
333R0-77168-0 Cap Ass'yCap Ass'y
-
33-13R0-77169-0 O-RingO-Ring
-
343R0-77173-0 Seal WasherSeal Washer
