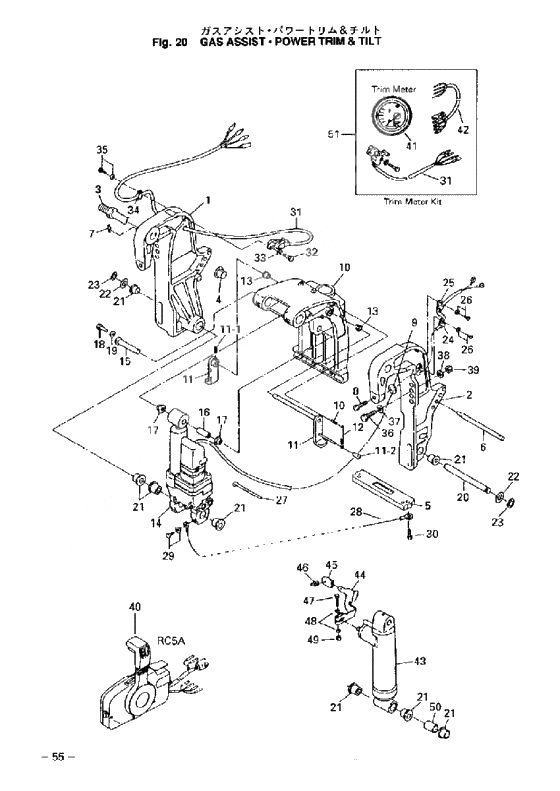

Gas assist, power trim & tilt для Tohatsu MFS25A - 2004 года выпуска`

№

Артикул

Название
1

3R0S77211-0 Stern bracket ptt right (abyc)
PTT type only

Stern bracket ptt right (abyc)
PTT type only

11 300 ₽
3R0S77211-1 Stern bracket ptt right (abyc)

Stern bracket ptt right (abyc)

12 620 ₽
1

3AFQ77211-0 Clamp bracket (right) gas assist type
Gas assist type only

Clamp bracket (right) gas assist type
Gas assist type only

21 380 ₽
1

3AEQ77211-0 Clamp bracket right (ptt)
Gas assist type only

Clamp bracket right (ptt)
Gas assist type only

21 380 ₽
2

3AFQ77212-0 Clamp bracket (left) gas assist type
Gas assist type only

Clamp bracket (left) gas assist type
Gas assist type only

19 530 ₽
2

3AEQ77212-0 Clamp bracket left (ptt)
Gas assist type only

Clamp bracket left (ptt)
Gas assist type only

21 380 ₽
2

3R0S77212-0 Stern bracket ptt left (abyc)
PTT type only

Stern bracket ptt left (abyc)
PTT type only

11 300 ₽
3R0S77212-1 Stern bracket ptt left (abyc)

Stern bracket ptt left (abyc)

12 620 ₽
3

3S9-62191-0 Bracket bolt

Bracket bolt

3 370 ₽
4

3C8-77213-0 Bushing Bracket Bolt

Bushing Bracket Bolt

1 130 ₽
5

3C7-60218-1 Anode

Anode

1 750 ₽
3C7-60218-2 Anode

Anode

1 840 ₽
6

3R0-77118-0 Thrust Rod

Thrust Rod

2 670 ₽
7

3B7-62129-1 Pin, Thrust Rod

Pin, Thrust Rod

830 ₽
8

3C8-77214-0 Винт струбцины

Винт струбцины

1 300 ₽
9

332-62101-0 Pad clamp screw

Pad clamp screw

1 230 ₽
10

3R0S77215-0 Поворотный кронштейн

Поворотный кронштейн

22 370 ₽
11

3R0S62470-0 Tilt Stopper Ass'y

Tilt Stopper Ass'y

4 960 ₽
11-1

951403-3516 New part

New part

120 ₽
11-2

369-62433-1 Grip Tilt Stopper

Grip Tilt Stopper

200 ₽
12

3R0-62473-0 Spring,Tilt Stopper

Spring,Tilt Stopper

550 ₽
13

353-63207-0 Collar 10.2-12-12

Collar 10.2-12-12

260 ₽
15

3R0-77071-0 Upper,Cylinder Pin

Upper,Cylinder Pin

910 ₽
16

3R0-77075-0 Bushing

Bushing

390 ₽
17

3R0-77076-0 Bushing

Bushing

200 ₽
19

345-05122-0 New part

New part

150 ₽
20

3R0-77101-0 Lower,Cylinder Pin

Lower,Cylinder Pin

4 140 ₽
21

3C8-77076-1 New part
6 For Gas assist type

New part
6 For Gas assist type

650 ₽
22

3R0-77112-0 Washer

Washer

270 ₽
23

945103-1800 C-Ring

C-Ring

210 ₽
24

336-06973-0 Clamp Lead Wire

Clamp Lead Wire

290 ₽
25

345-06915-0 Clamp 6.5-14

Clamp 6.5-14

370 ₽
26

921503-5612 Stud Bolt

Stud Bolt

120 ₽
27

1H2-31534-0 Lead wire band-local purchase

Lead wire band-local purchase

210 ₽
28

3C8-62158-0 Ground Wire
Length: 130

Ground Wire
Length: 130

520 ₽
29

910113-5612 Bolt

Bolt

170 ₽
31

3B7-72574-0 Trim sender
Length: 6000 Option

Trim sender
Length: 6000 Option

22 640 ₽
33

3C8-66308-0 New part
Option

New part
Option

140 ₽
34

336-06973-0 Clamp Lead Wire
Option

Clamp Lead Wire
Option

290 ₽
35

921503-5612 Stud Bolt
Option

Stud Bolt
Option

120 ₽
36

3C7-62133-2 Bolt

Bolt

960 ₽
37

353-61334-0 Washer

Washer

860 ₽
38

940113-1200 Washer

Washer

90 ₽
39

3C7-62139-1 Nut,P1.25

Nut,P1.25

250 ₽
40

3B7-84330-1 Single remote control box ass'y(rc5a)
***Unique EPT type only

Single remote control box ass'y(rc5a)
***Unique EPT type only

44 730 ₽
41

3E0-72571-0 Trim meter ass'y
Option

Trim meter ass'y
Option

25 520 ₽
42

3R0-72537-1 Read Wire,Meter
Length: 2000 Option

Read Wire,Meter
Length: 2000 Option

7 820 ₽
43

3R0Q77601-0 Gas shock absorber
Gas assist type only

Gas shock absorber
Gas assist type only

65 290 ₽
3R0Q77601-2 Gas shock absorber

Gas shock absorber

68 560 ₽
44

3R0-66311-0 Rever, Revers Lock
Gas assist type only

Rever, Revers Lock
Gas assist type only

3 570 ₽
45

346-66333-0 Grip
Gas assist type only

Grip
Gas assist type only

440 ₽
46

346-66334-0 Stopper
Gas assist type only

Stopper
Gas assist type only

150 ₽
47

910114-0635 New part
Gas assist type only

New part
Gas assist type only

140 ₽
48

940113-0600 Washer
Gas assist type only

Washer
Gas assist type only

140 ₽
50

3R0-77105-0 Втулка тяги КПП
Gas assist type only

Втулка тяги КПП
Gas assist type only

3 080 ₽
51

3R0-72525-0 Trim meter kit
Option

Trim meter kit
Option

47 200 ₽
